Modular FORM - Rough-In Opening; Unit Installation

3
DETAIL A
A

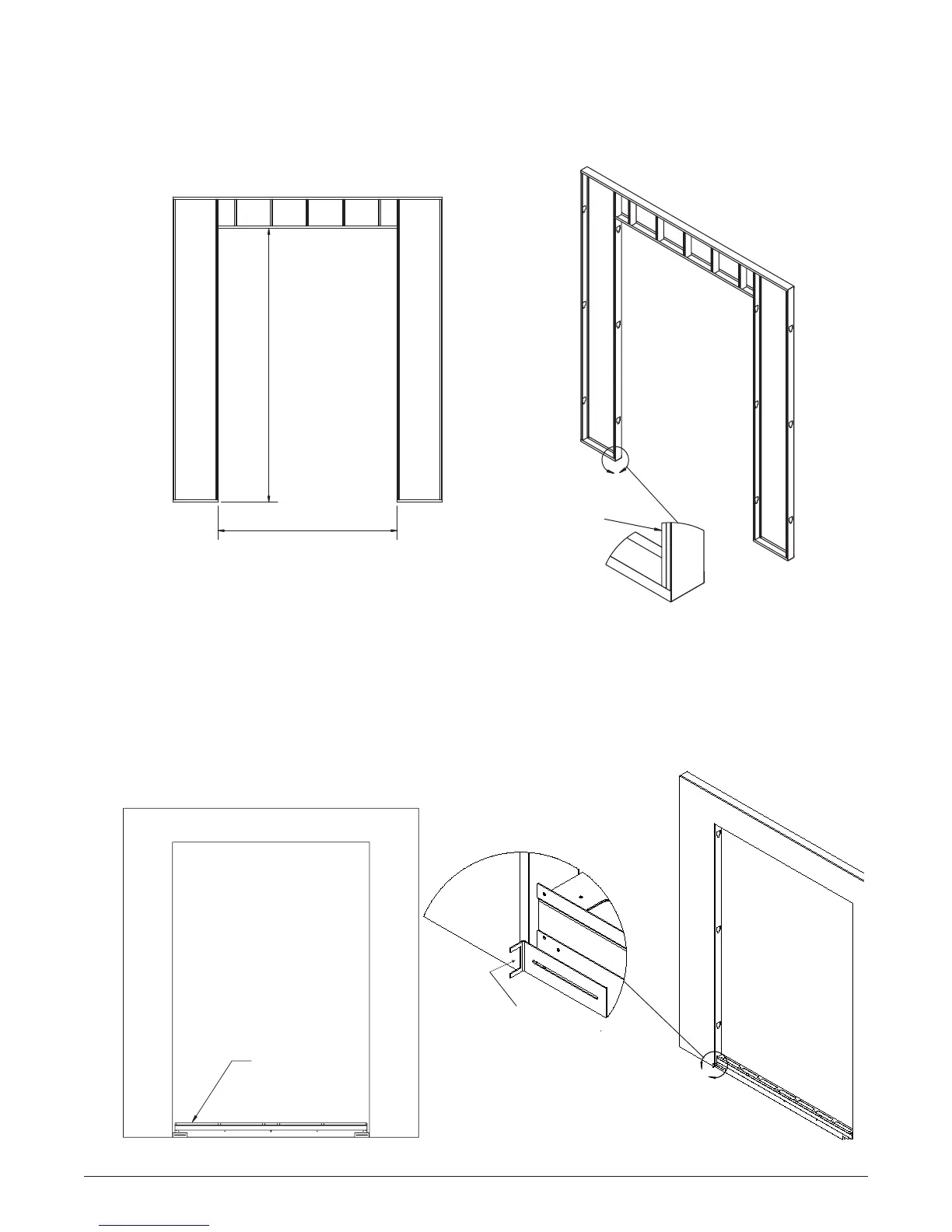

Figure 1.
Legs of studs and
header face away from
rough opening
1. Install adjustable base into rough opening. After the base is positioned as shown in Figure 2, secure it to
the floor with anchors (provided by others) in at least two places. If the floor is excessively wavy, be sure to
secure the base in locations where it is already contacting the floor (i.e. don't force the base into a valley in
the floor). Next, pivot the top of the base until it is level and secure in place with the included self drilling
screws. Once in place, remove and discard alignment bracket.
UNIT INSTALLATION
Figure 2.
Center base in
rough opening
B
DETAIL B
ROUGH-IN OPENING
Rough opening dimensions depend on the specific configuration chosen and are provided upon receipt of
approved submittal drawings.
Edgeofalignment
bracket should be
flush with finished
drywall
