Mounting the C-130

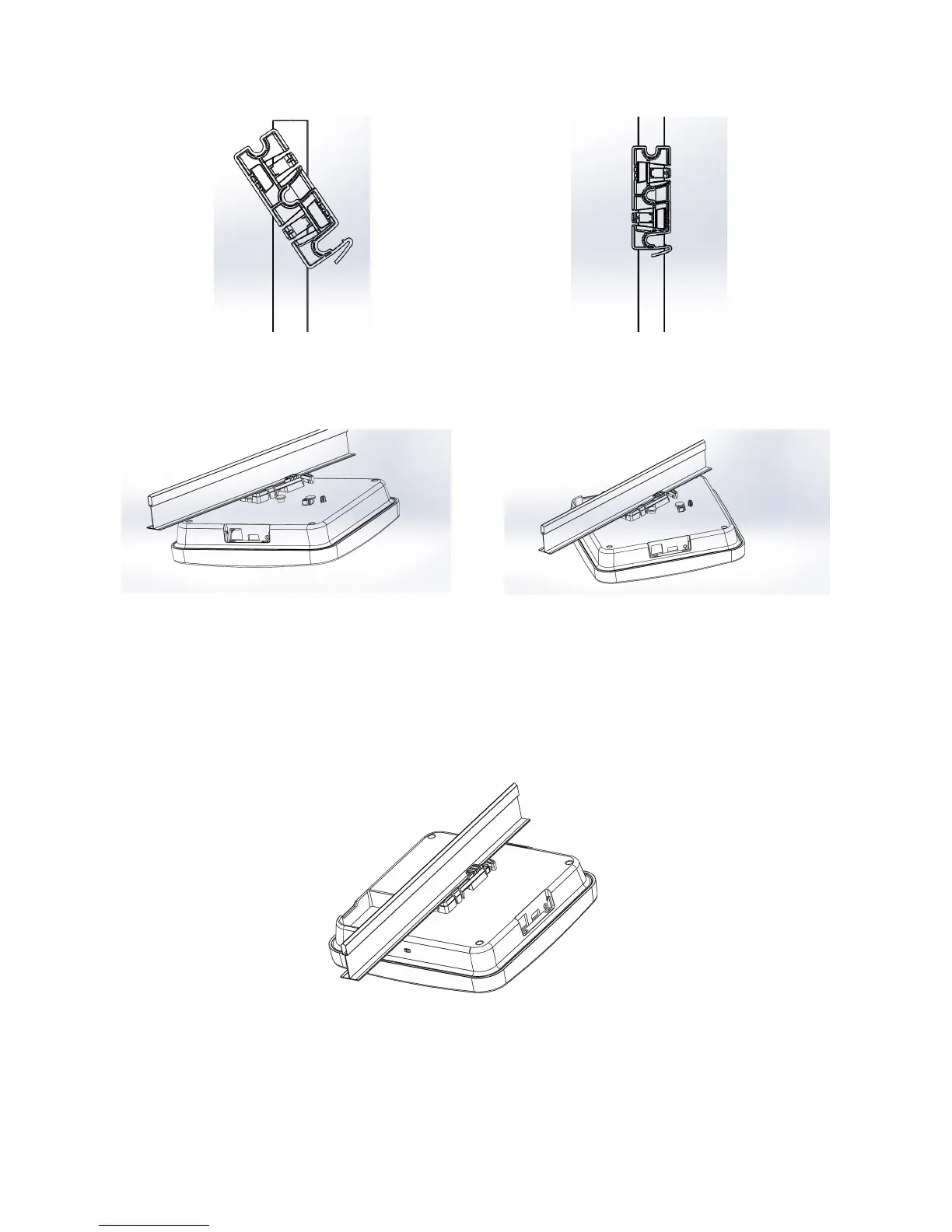

1. Aix bracket to T - Grid.
3. Place the irst mounting post on the
rear-side of the device on to the
lower notch of the bracket.
5. Ensure that all the mounting posts on
the rear-side of the device are snapped
in to the respective notches on the
bracket.
4. Rotate the device such that the
center mounting post its in to the
center notch on the bracket.
2. Rotate bracket to snap on to T- Grid.
