Digidata 1550B Low-Noise Data Acquisition System User Start Guide
14 5040237 B

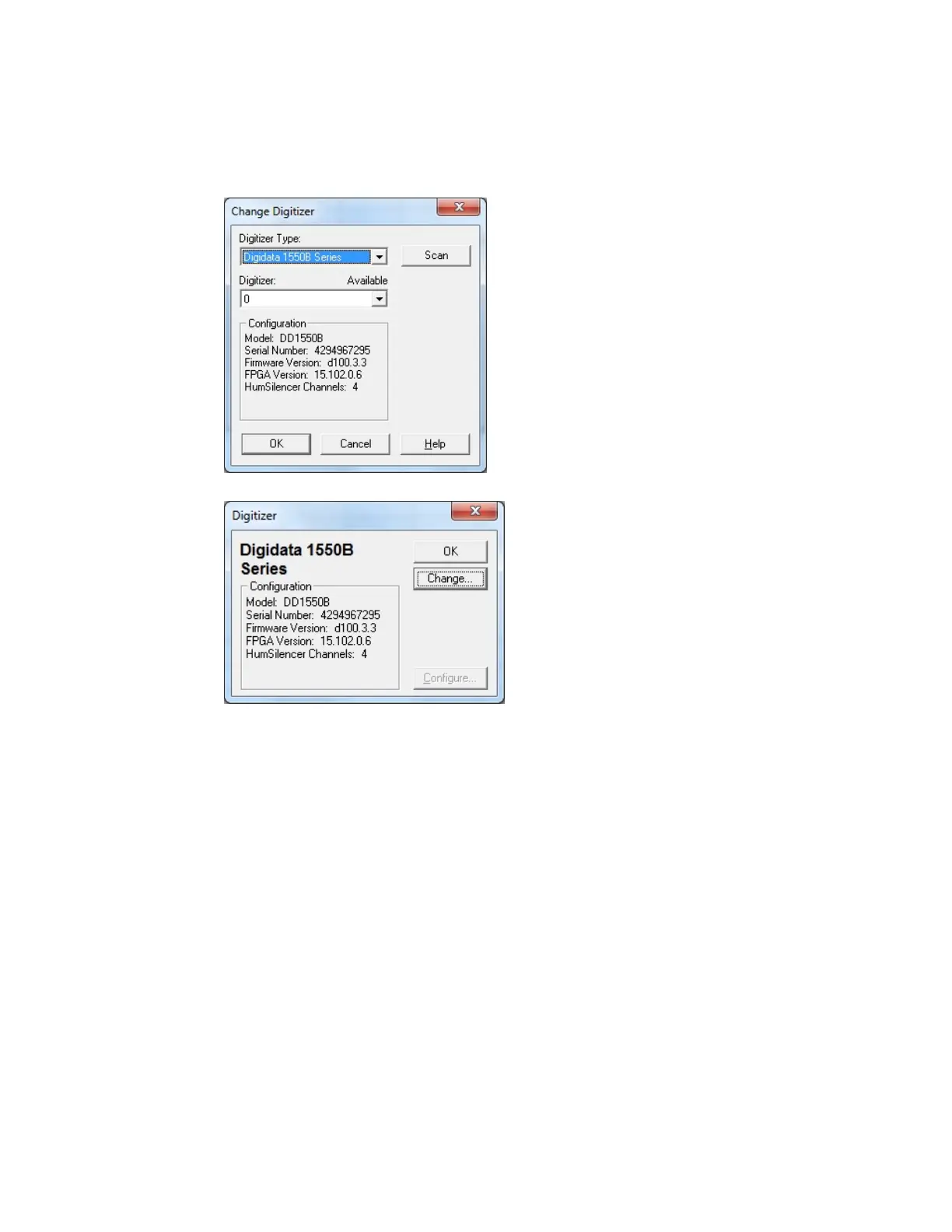

4. Click the Scan button to detect the digitizer. The first detected digitizer is assigned 0 and
listed as Available. The Configuration information changes from Not present to reporting
the selected digitizer model number, serial number, firmware version, HumSilencer
channel availability (0, 1, or 4), and the OK button is enabled ().
5. Click OK to exit the dialog.
Updating the digitizer information can take up to one minute, after which the Digitizer
dialog shows the currently active digitizer configuration details.
6. Click OK to exit the Digitizer dialog.
The front panel yellow READY light is continuously on only when the software connects to the
digitizer. After warming up (allow one hour), the Digidata 1550B digitizer is ready for
experiments.
