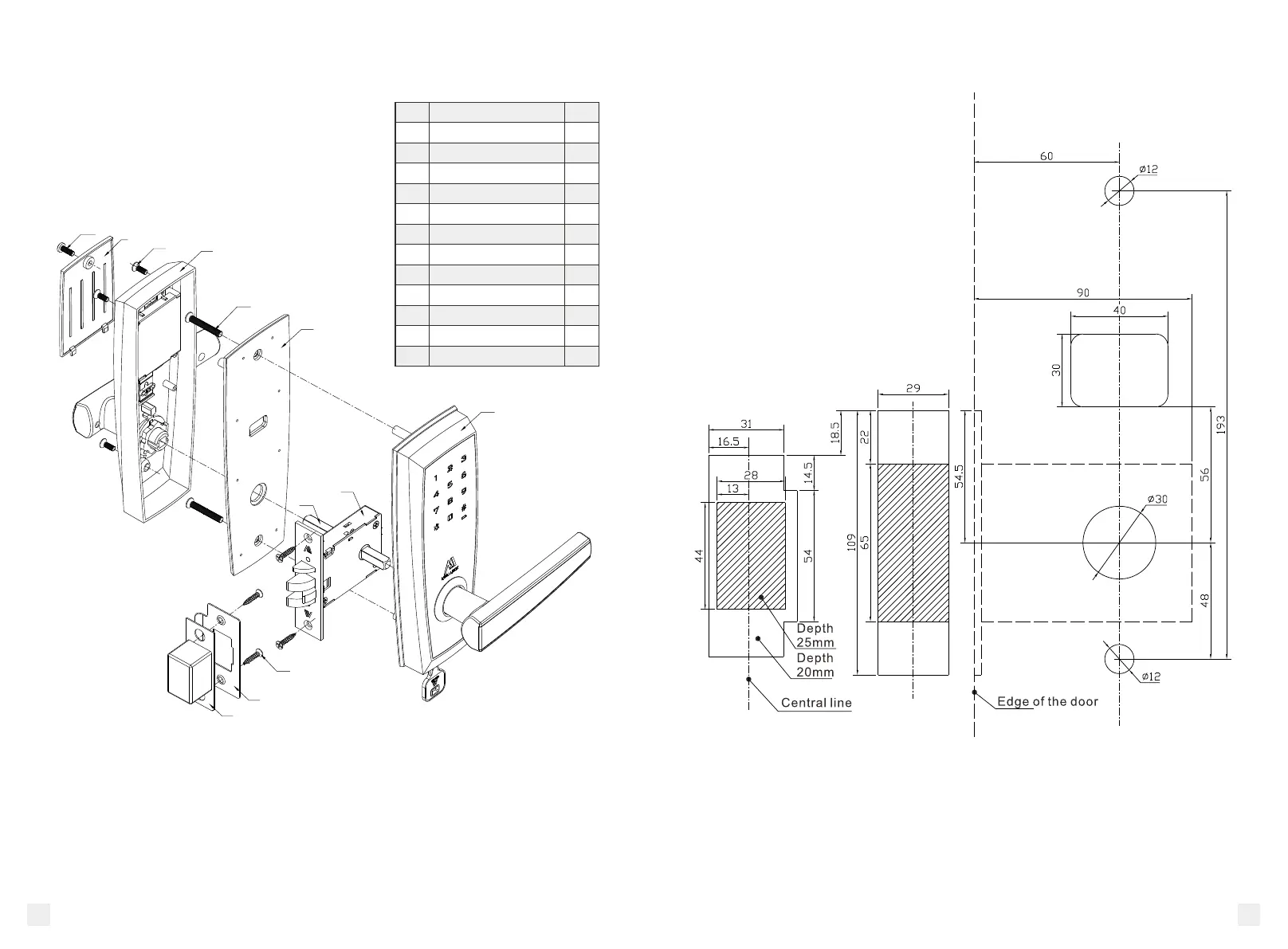

Moli Lock 116E98T - G). Installation Drawing; F). Exploded Drawing

F). Exploded Drawing
4
1
3
2
8
9
1 0
1 2
6
5
1 1
7
Description
Front Plate
Back Plate
Based Plate
Lock Body
Square Stick
Strike Plate
Strike Plate Case
Batteries Box
M4x12 Screw
M5x12 Screw
M5x35 Screw
M4x12 Screw
No.
Qty
1
2
3
4
5
6
7
8
9
10
11
12
1
1
1
1
1
1
1
1
1
3
2
4
G). Installation Drawing
Mortise hole
central line
9 10
