Molift Raiser Pro / www.etac.com
Material:
Powder coated aluminum,
Plastic, Steel.
Expected Lifetime:
The Molift Raiser Pro has an
expected lifetime of 5
years or 15000 transport
cycles.
Safe Working Load (SWL):
170kg (375 lbs)
Weight of unit:
10kg

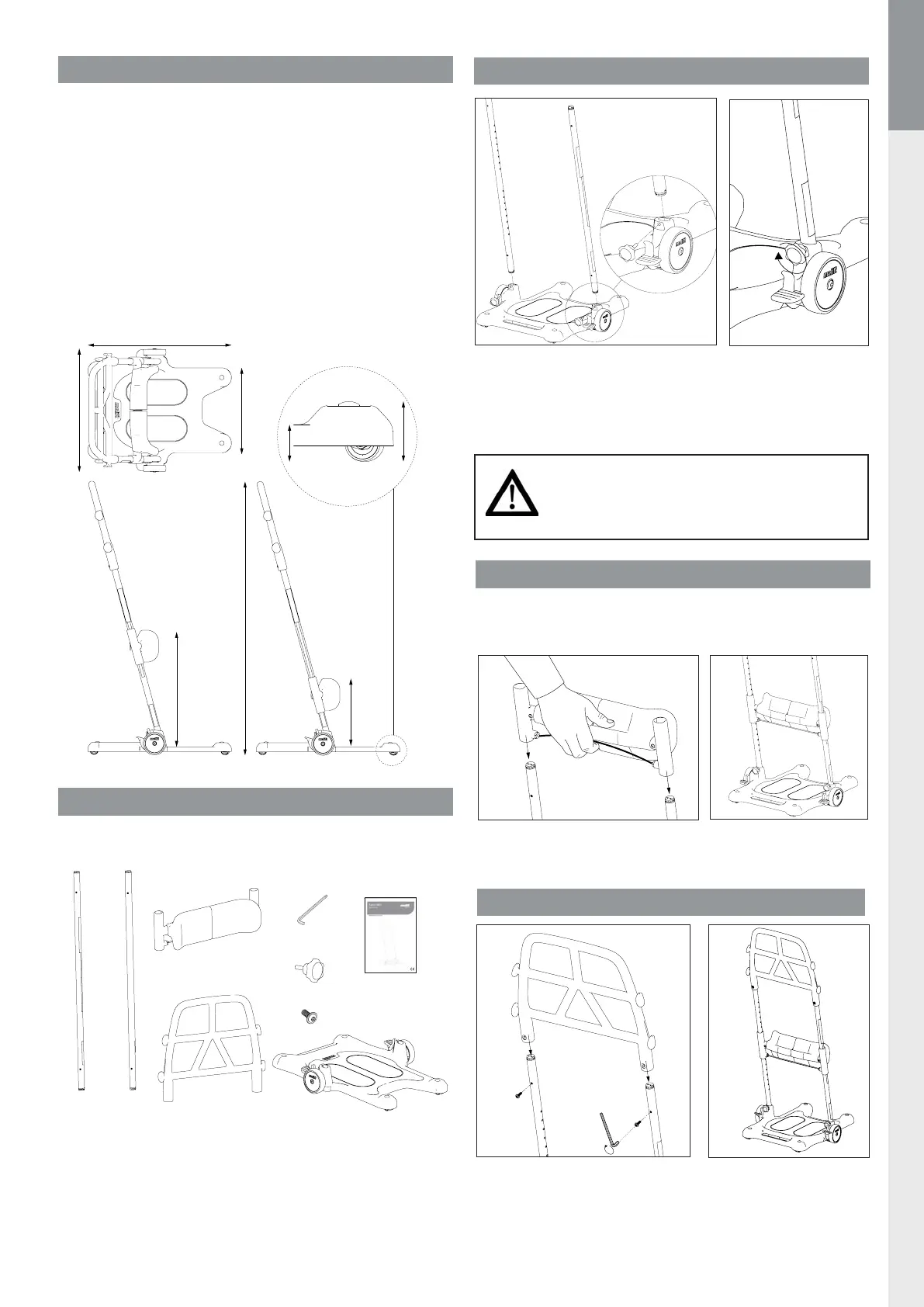

Dimensions:
Height(A): 1,2 m
Height (B): 0,3-0,51 m
Depth (C): 0,63 m
Width (D): 0,54 m
Width (E): 0,37m
Step in height (F): 0,035m
Clearence (G): 0,057m
Technical data
Supplied parts
Mounting leg support
Mounting pipes to base plate
Mounting handle
Make sure that knob are Properly fastened.
Loose knobs can make the pipes wobbly and
the Molift Raiser Pro unsafe to use.
C
D
A
B max
B min
E
F
G
”Click”
1 2
The knee cushions are adjusted individually. The leg support has 7
step adjustment from 0,3 to 0,51 meters.
Follow these two steps
when mounting the leg support:
Pull release wire and slide the leg
support on pipes, cushion faceing
user side.
Release wire and let the
leg support settle in
desired position.
Place the base plate on an even surface
and lock brakes. Insert pipe with holes
facing towards center of plate. Pipe with
label must be at the right, standing on
the assistant side. Insert knob.
1 2
Slide the handle on pipe so holes
on pipe maching holes on handle.
Innsert unbraco screws and tighten
with allen key.
Make sure unbraco screws
are pointing towards
assistant side.
1
3
Short user guide:
Right Pipe
1x
Handle 1x
Allen key 1x
Turning knob 2x
Screws 2x
User manual 1x
Leg support 1X
ENSVNODAFIDENLFRITES
Base Plate 1x
Left Pipe
1x
Tighten knob firmly
by turning knob
clockwise.
Attachment for
accessories ( 2 heights)
