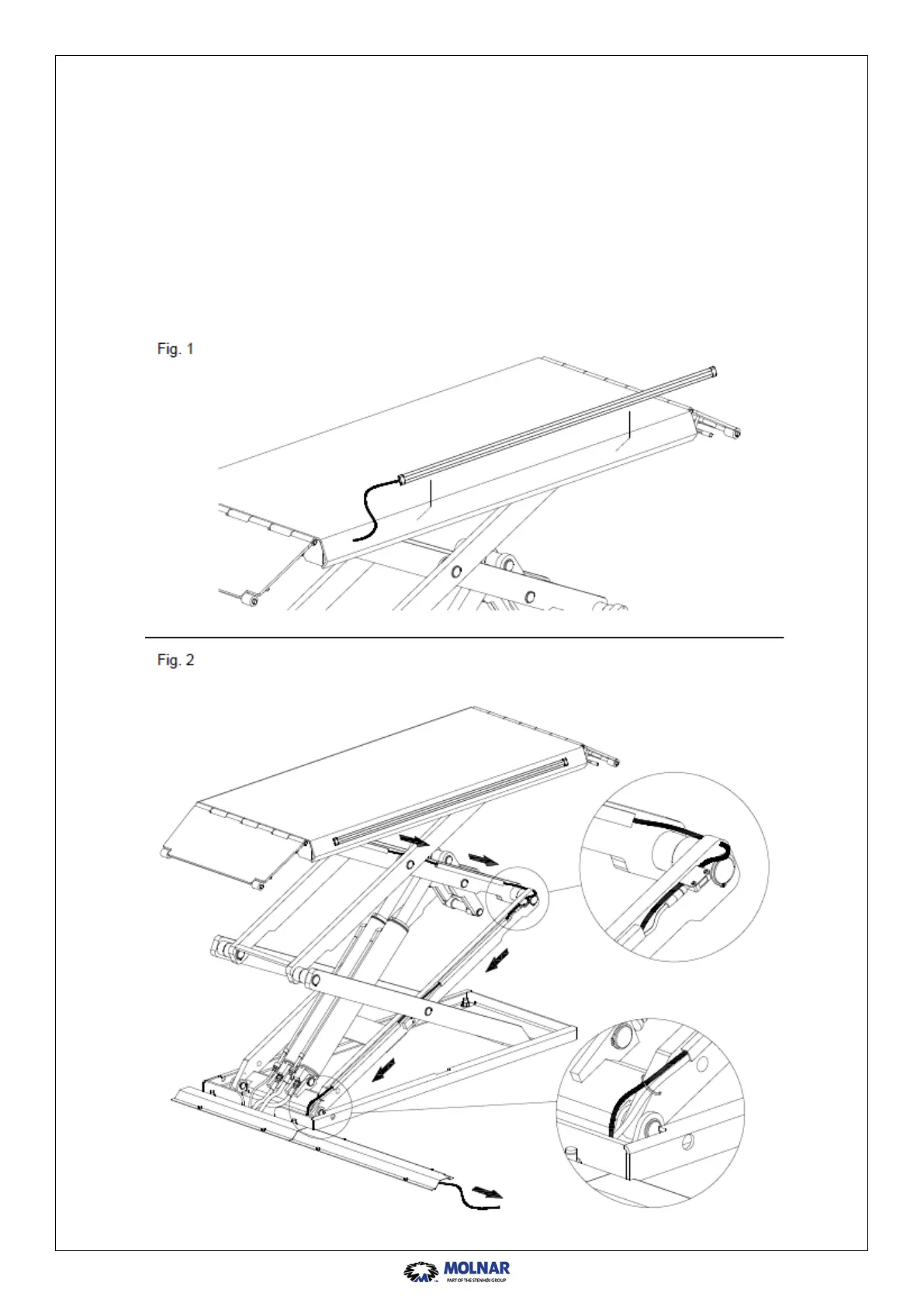

1. Fit lighng modules on upper plates by means of pre-ed adhesive pads.
Note ! Upper plates must be cleaned and dry before axing. Pull cables from modules through holes in
upper plates.
Assemble cable from module with 2-core cable supplied by means of straight-through joints – use pliers
and aer that a heang gun or similar. Note ! Is is very important to keep the +/+ and -/- connecon in all
joints.
2. Fit cable trays on upper scissor arms
Lead cable down through cable protecons on scissor arms as shown.
