T80124 — Rev.:29/01. 2018 3

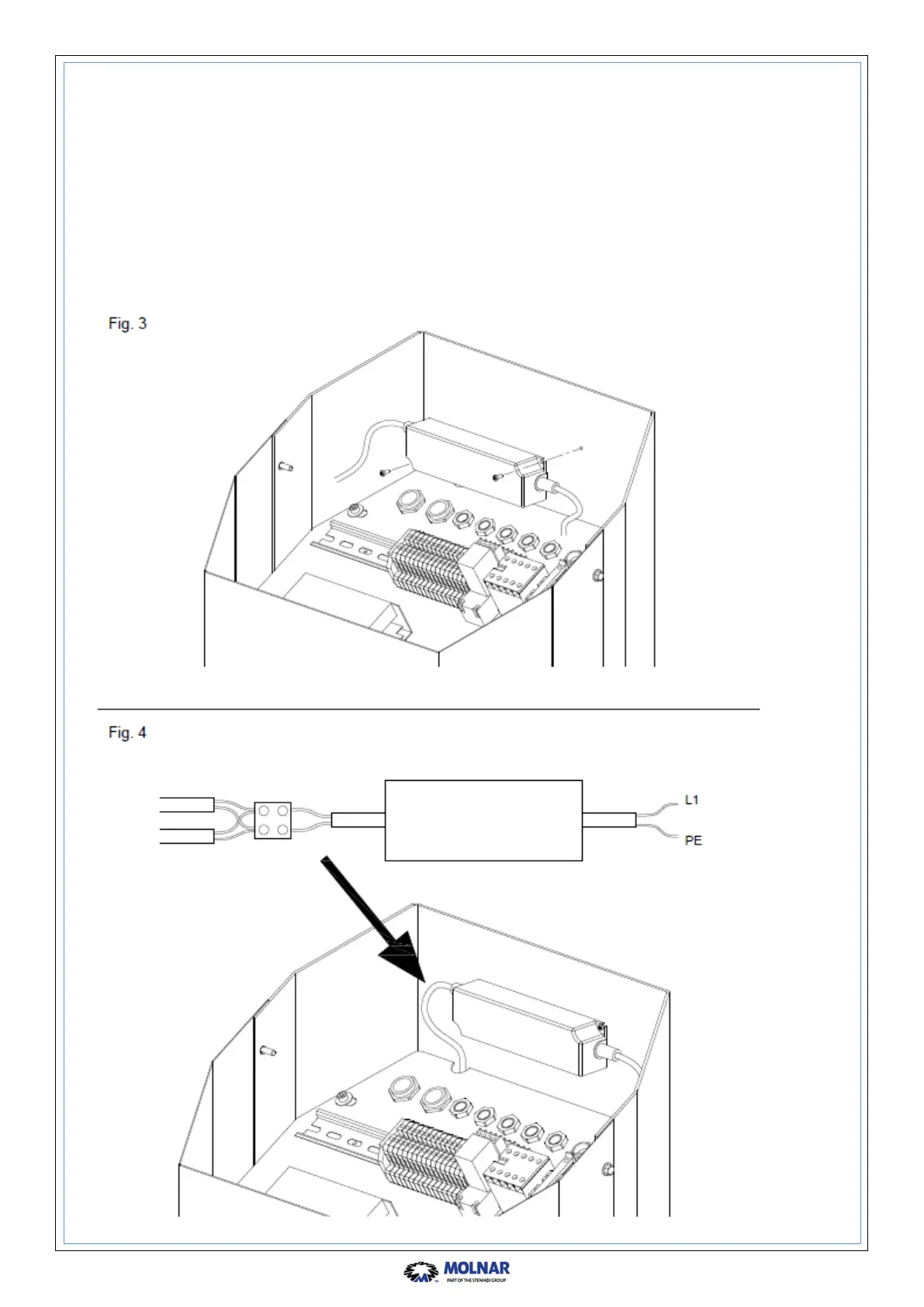

3. Dismantle front cover for upright.
Fit transformer on back plate of upright as shown by means of M3x8 tapte screws.
4. Lead cables from lighng kit up along backside of upright.
Fit both cables on transformer by means crown socket as shown.
Connect 2-core cable from transformer to L1 and N (on secondary side of main switch) in control unit. If
necessary prolong cable from transformer. Fit crown socket on blue and white cables if dimmer is not installed.
Re-t front cover for upright.
