Leveling Controls
The hydraulic leveling system is operated
from the control module to manually or
automatically level the motorhome. The
control features a multiple warning system
with ashing lights and an alarm to alert of a
jack down.
DASH
Instrument Panel
1. TURBO BOOST:
Indicates boost
pressure produced by engine
turbocharger.
2. COOLANT TEMP:
Indicates an
approximate normal operating range.
Monitor this gauge frequently when
climbing hills, towing or in high
ambient temperatures. If the needle
indicates an out of range condition
take IMMEDIATE ACTION to avoid
engine damage. Refer to the OEM
instructions for specic temperature
recommendations.
3. TACHOMETER: Displays engine
speed in revolutions per minute
(RPM).
4. OIL PRESSURE:
Indicates oil
pressure not the amount of oil in
the engine. Refer to manufacturer’s
instructions for specic pressure
recommendations.
WARNING
If oil pressure drops and the
WARNING lamp illuminates, stop the
engine and check oil level.
5. SPEEDOMETER:
Indicates the
speed of the motorhome. The gauge
indicates MPH and KPH.
6. ODOMETER/TRIP METER:
Records the mileage driven as well as
total mileage on a trip.
7. MILEAGE/TRIP RESET
BUTTON: Used to toggle between
the odometer, Trip 1, Trip 2 and the
transmission temperature. Holding
the button down for two seconds
resets the trip meter.
8. FUEL:
Fuel gauge registers
approximate fuel tank level when
ignition switch is in the run position.
NOTE
Fuel mileage varies with driving style
and road conditions. Always average
more than one tankful to obtain a
more accurate figure. The diesel
Generator uses fuel from main tank
and will affect fuel mileage figures.
Diesel generators will not operate
below ¼ tank to ensure there is enough
fuel to run main engine.
11
5
11
3
4
1
7
9
8
080209b
6
2
10
031325

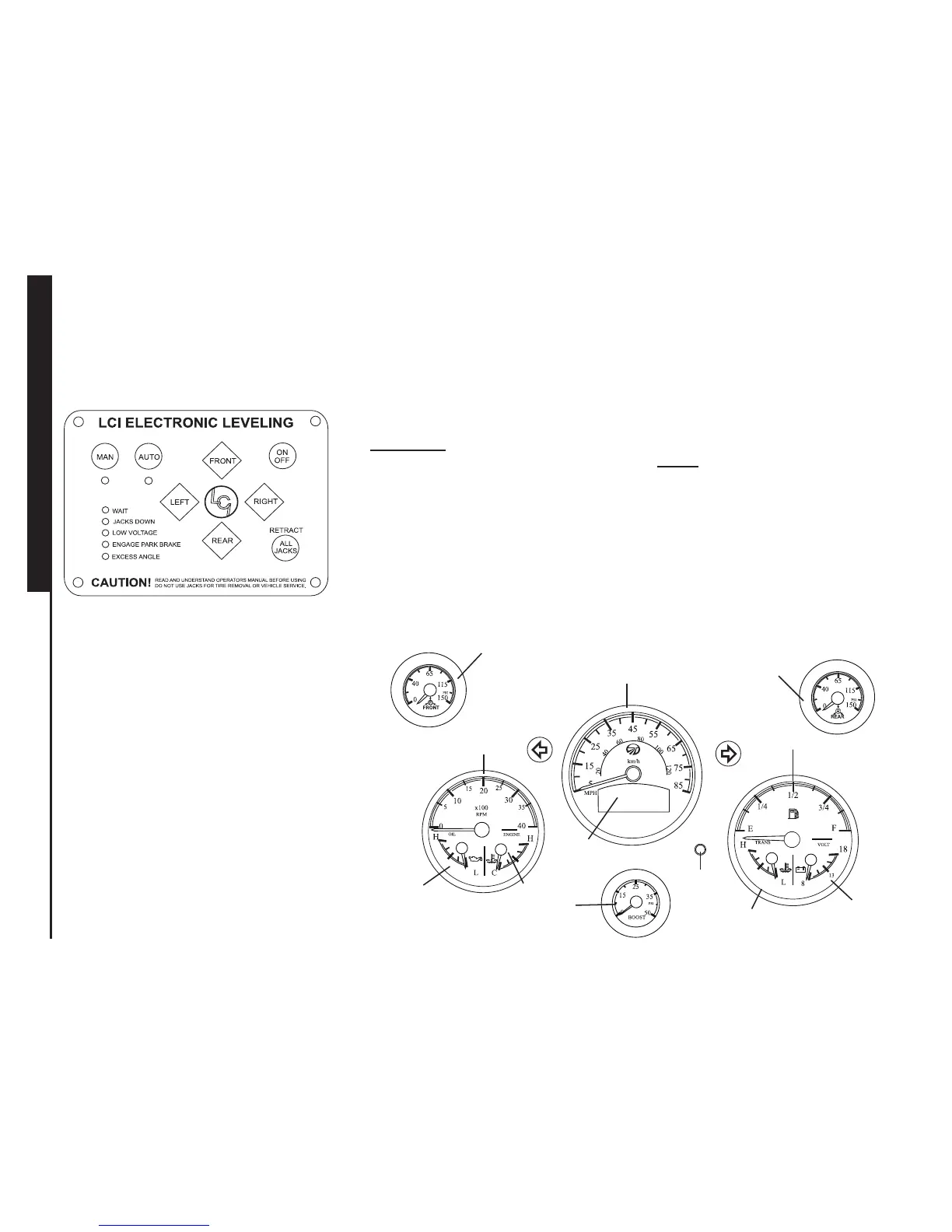

Representation of Instrument Panel
