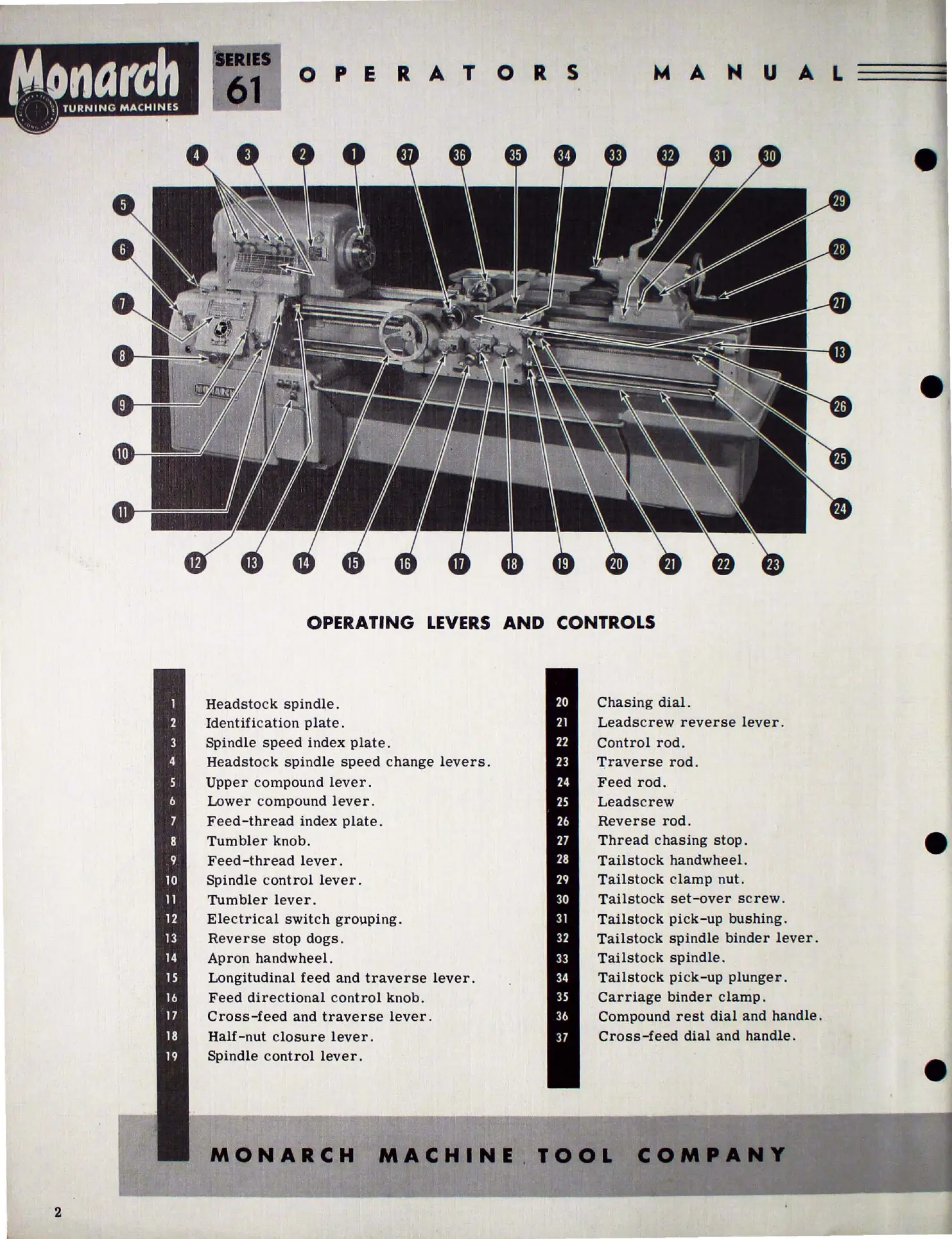

OPERATING LEVERS AND CONTROLS
Headsto ck spindie .
Identifi c ation plate .
Spindle speed index plate .
Headstock spindle speed change levers.
Upper compound lever.
Lower c ompound lever.
Feed-thread index plate.
Tumbler knob .
Feed-thread lever.
Spindle control lever.
Tumbler lever .
Electrical switch grouping.
Reverse stop dogs .
Apron handwheel.
Longitudinal feed and traverse lever.
Feed directional control knob.
Cross-feed and traverse lever.
Half-nut closure lever.
Spindle control lever .
Chasing dial.
Leadscrew reverse lever.
Control rod .
'rraverse rod.
Feed rod.
Leads crew
Reverse rod .
Thread chasing stop .
Tailstock handwheel.
Tailstock clamp nut.
Tailstock set-over screw .
Tails tock pick-up bushing.
Tailstock spindle binder lever .
Tailstock spindle.
Tailstock pick-up plunger .
Carriage binder clamp .
Compound rest dial and handle.
Cross-feed dial and handle.
