Host Connection-RS-232 via RJ-11 Jack

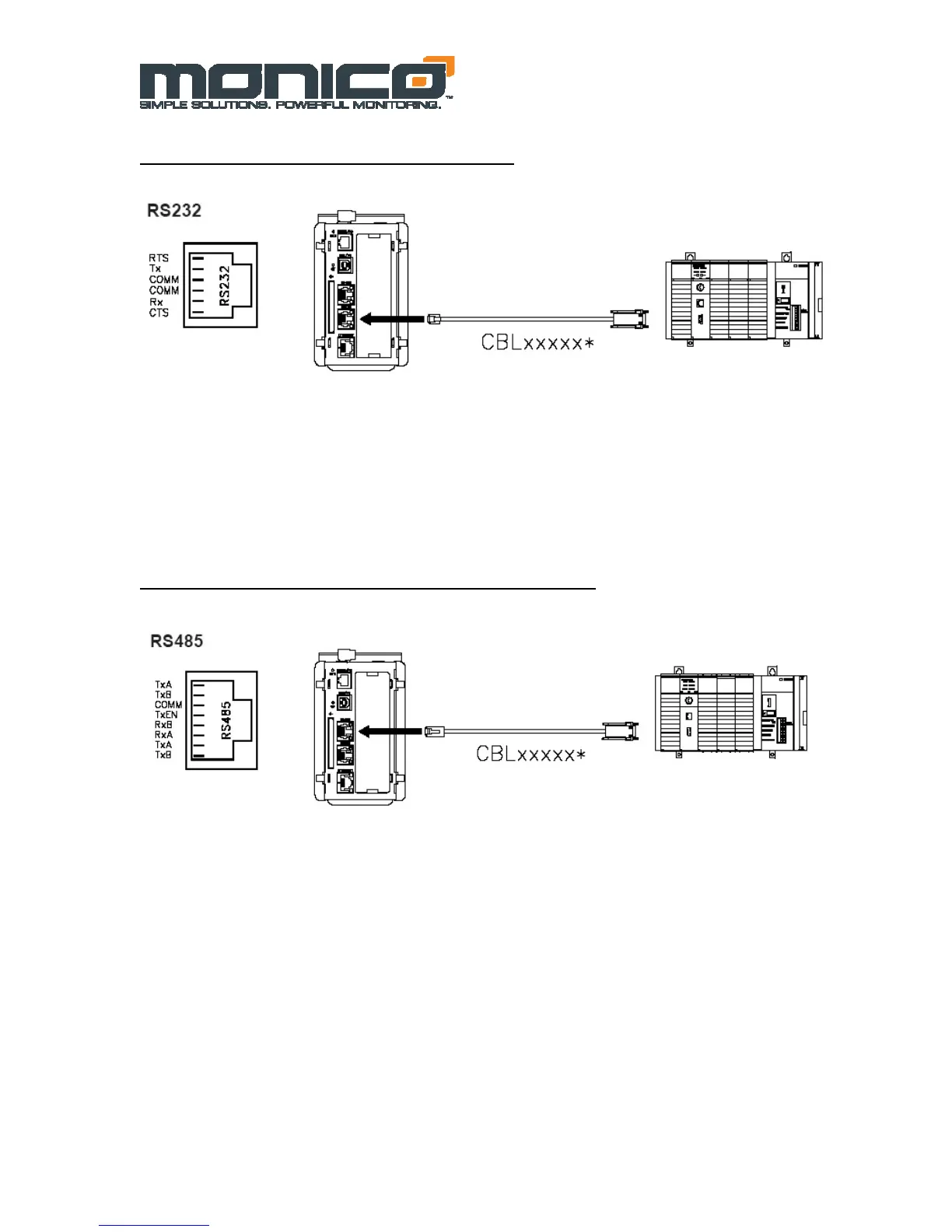

Figure 4.2 RS-232 Connections
Host Connections-RS-485/RS-422 via RJ-45 Jack
Figure 4.3 RS-485/RS-422 Connections
