Installation and Operation Manual Eco Convection Ovens | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO
55

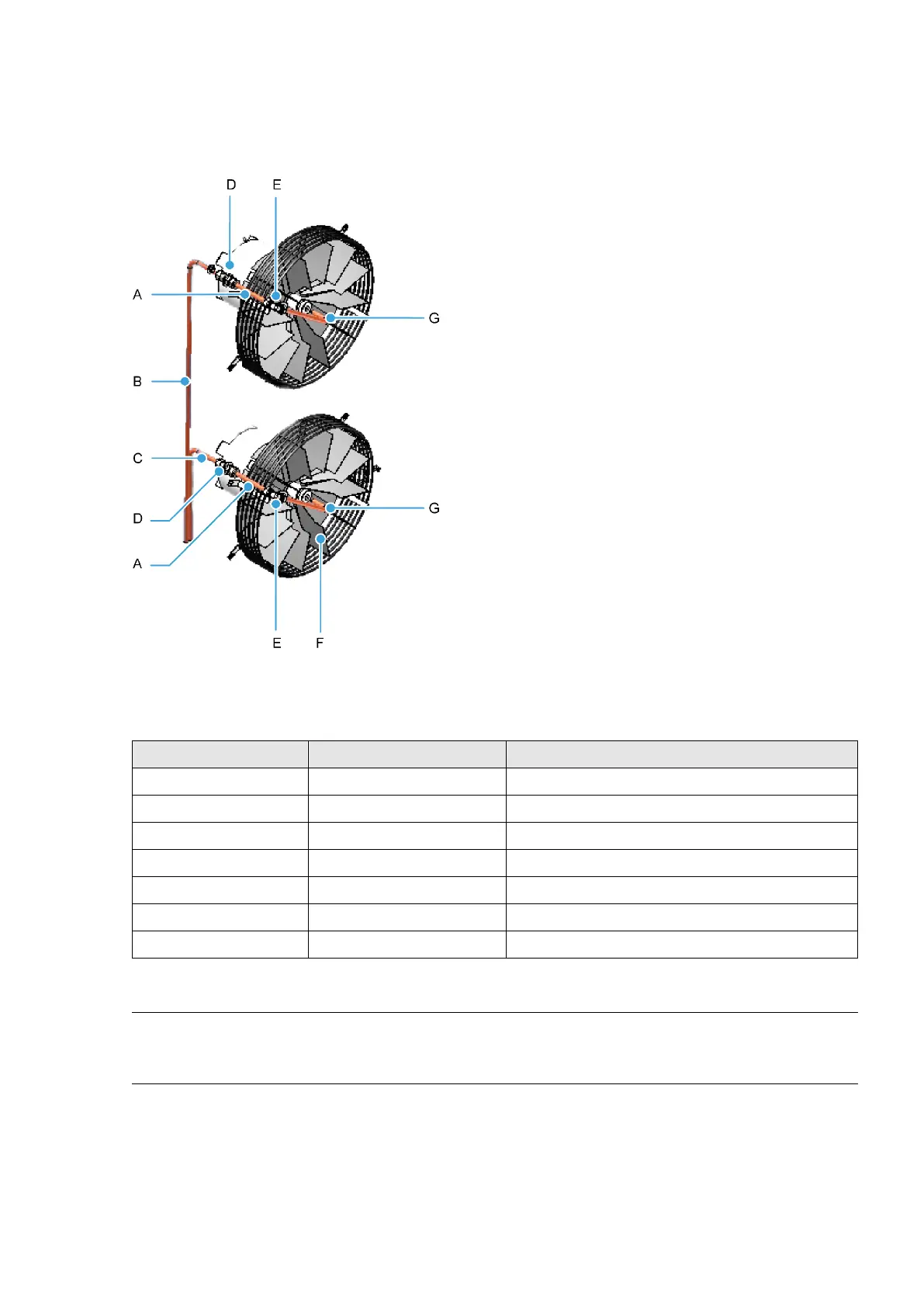

Figure 16: Water/Steam System (FG150) ā 2
Table 9: Item numbers in Figure 16
A 150-07-00900 Joint tube
B 150-07-00800 Delivery pipe - long
C 150-07-00700 Delivery pipe - short
D A900-34-321 Bulkhead coupling
E A900-34-387 Equal elbow
F 150-00-11300 Fan
G 150-07-00500 Delivery pipe
NOTE
The complete steam assembly kit is part number 150-07-00003.
Includes 150-01-07700 (pipe guide bracket x 2) and 150-07-00400 (double solenoid inlet valve).
