Part 3 | Section 3 | Damper and Cooling Fan (FG158)

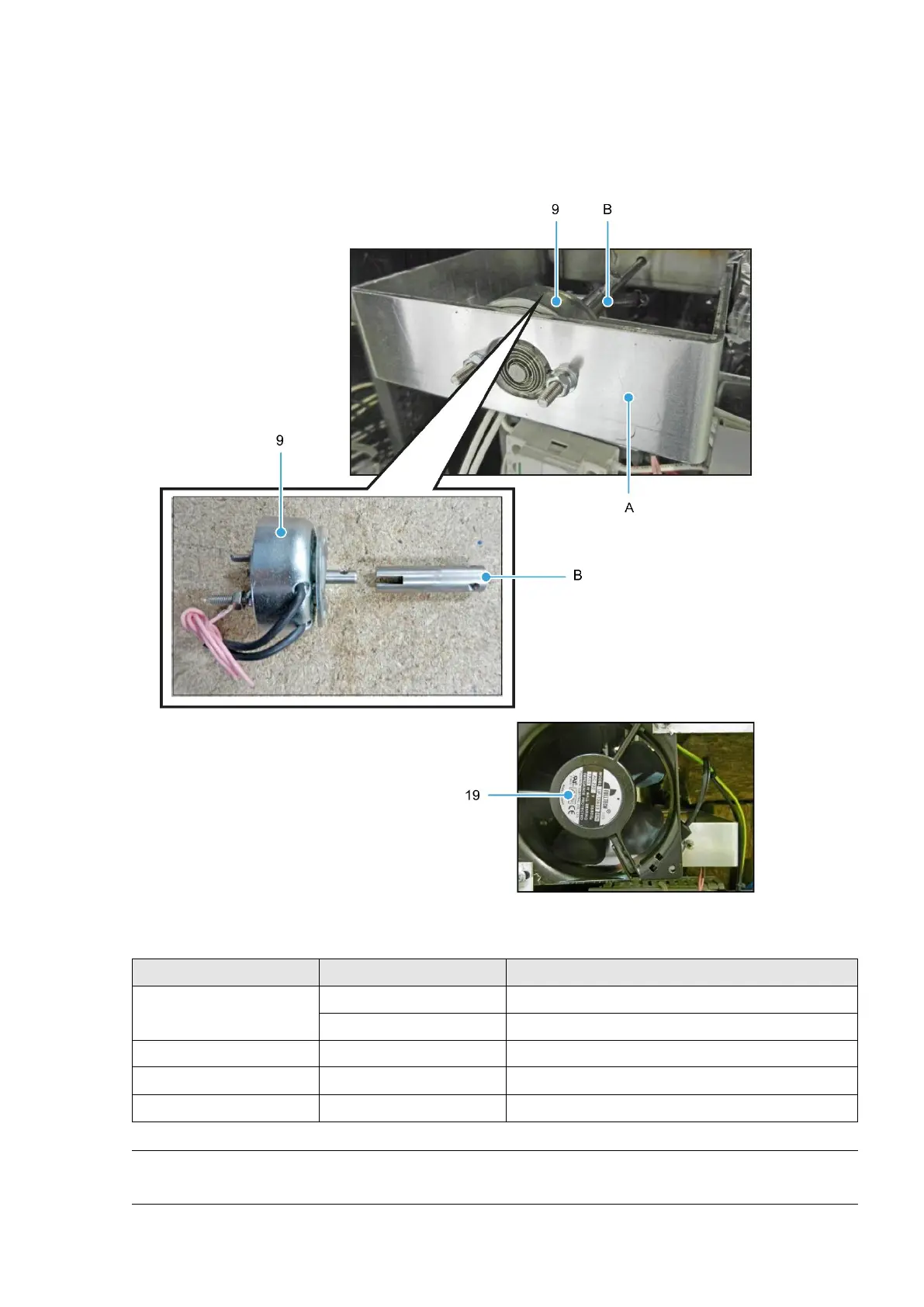

Figure 28: Damper and Cooling Fan (FG158)
Table 19: Item numbers in Figure 28
9 B749-83-003 Damper solenoid L/H oven
B749-83-004 Damper solenoid R/H oven
19 B869-75-018 Rear cooling fan
A 158-02-00300 Damper solenoid bracket
B 158-02-00600 Coupling
NOTE
Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual.
