Part 4 | Section 4 | Water/Steam System (FG153)

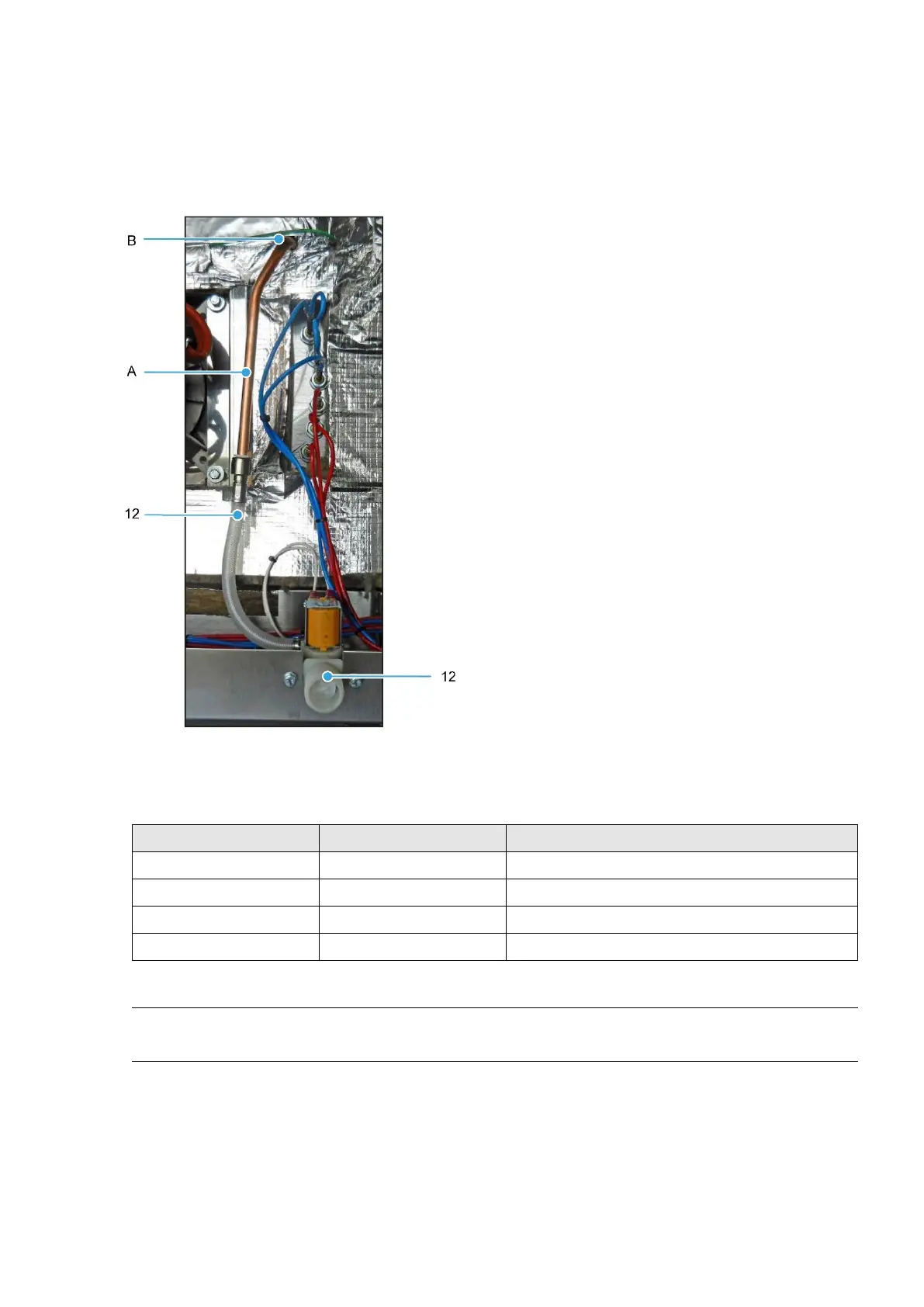

Figure 36: Water/Steam System (FG153) – 1
Table 26: Item numbers in Figure 36Figure 29
12 158-17-00400 Water inlet assembly (including hose)
A A900-34-253 Copper pipe (10 mm OD x 20 SWG)
B A900-34-321 Bulkhead coupling (under insulation)
N/A A900-34-087 Hose – blue (Not shown)
NOTE
Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual.
