Introduction (condenser unit)
If required, a condenser unit can be fitted to any MONO oven (or stacked ovens). The thermostatic control can
be adjusted to operate in most ambient temperatures. A simple water connection (washing machine type
fitting) and a hose to drain are required to operate efficiently.
Steam is drawn from the flue pipe of the oven through a thermostatically-controlled water-cooled chamber and
condenses to drain away. When the cooling water reaches a set temperature, it is automatically replaced with
cold water to keep the condensing process as efficient as possible.

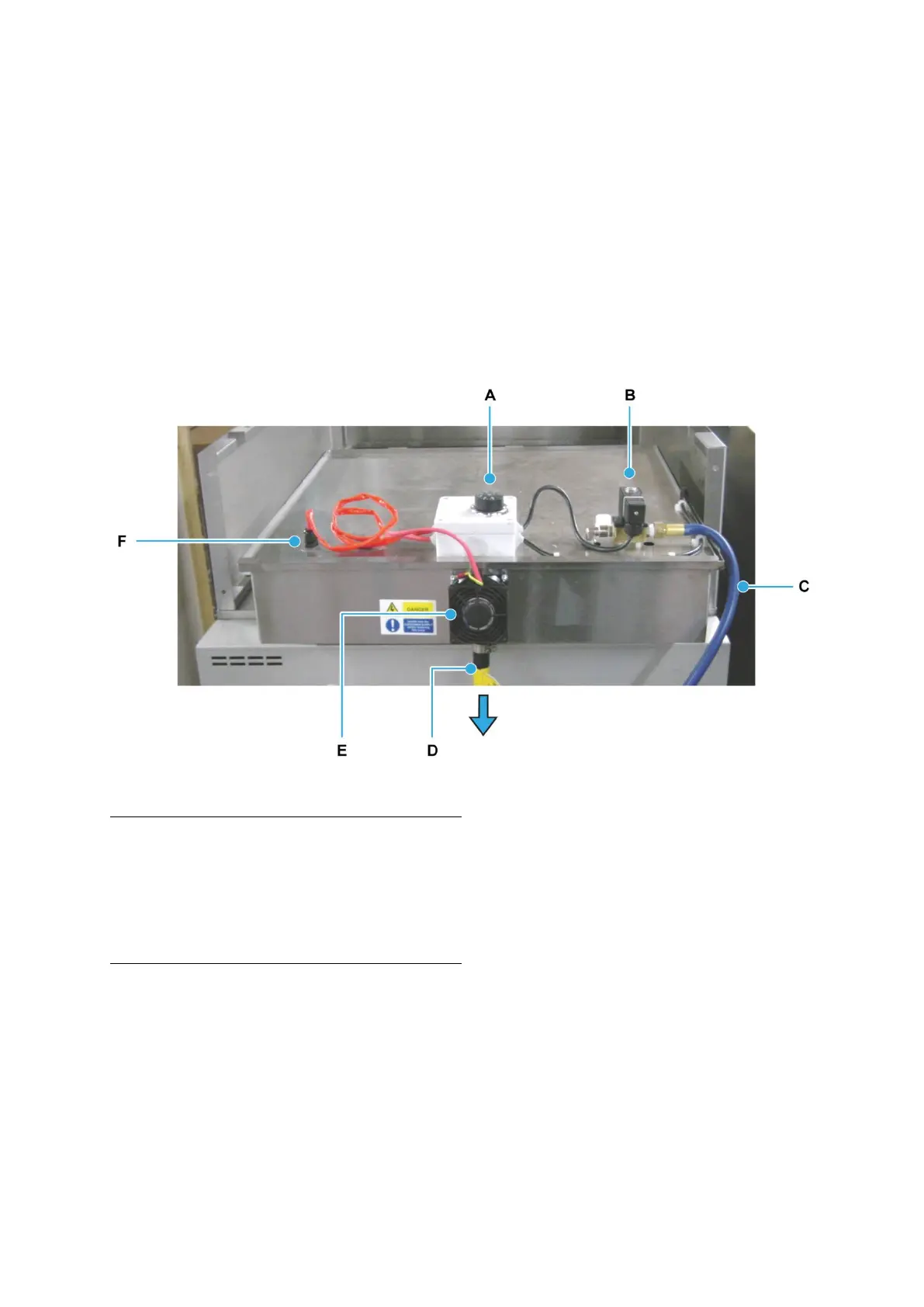

Figure 39: Features of a typical condenser unit
A. Thermostat control
B. Water solenoid
C. Water inlet
D. Water outlet to drain
E. Fan
F. Thermostat
