Part 1 | Section 3 | Cooling Fan and Damper (FG150)

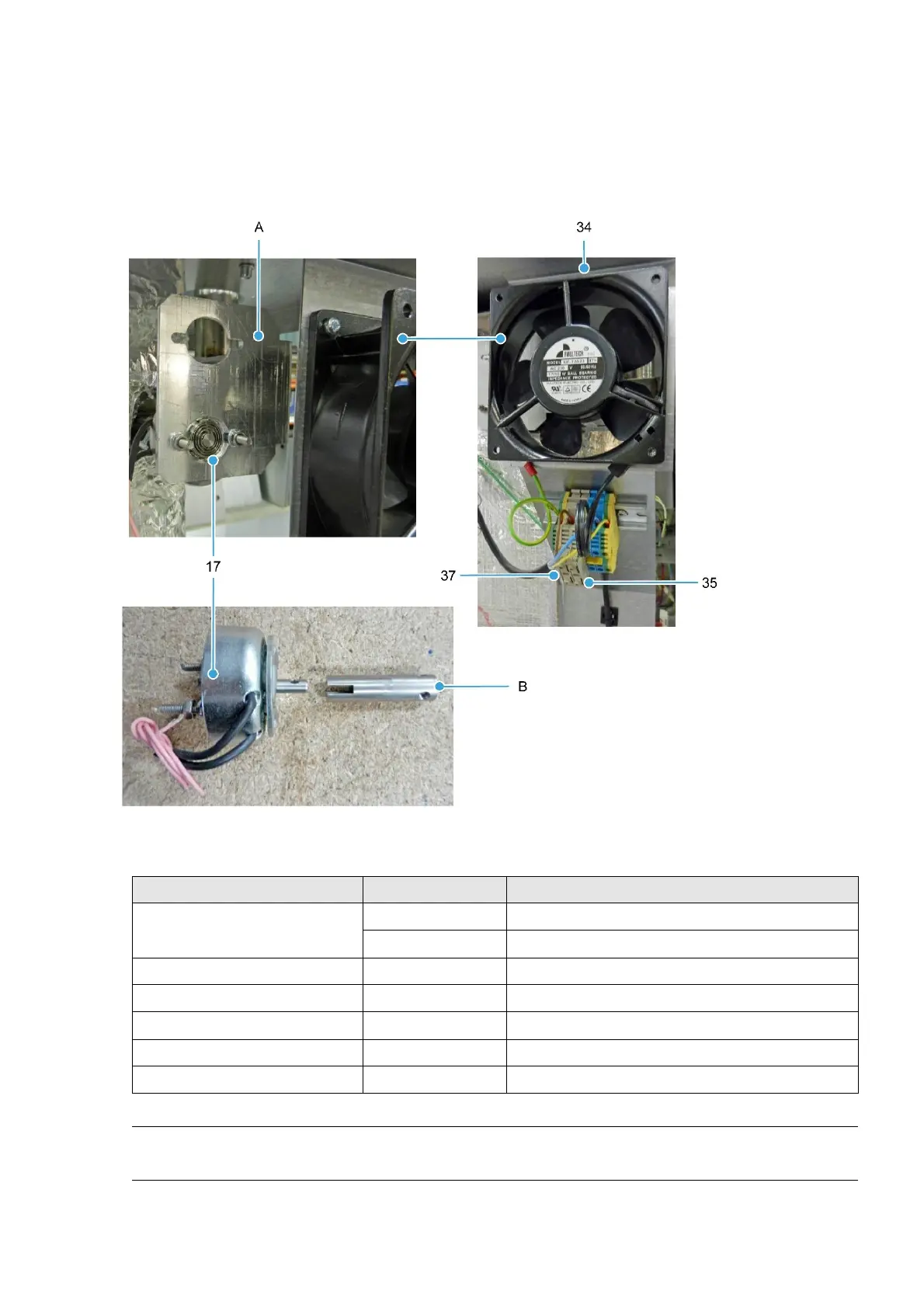

Figure 14: Cooling Fan and Damper (FG150)
Table 7: Item numbers in Figure 14
Item Number Part Number Part Description
17 B749-83-003 Damper solenoid L/H oven
B749-83-004 Damper solenoid R/H oven
34 B869-75-018 Rear fan unit
35 B842-85-025 Rear fan unit fuse
37 B842-85-039 Auxiliary power outlet fuse
A 150-02-01000 Damper bracket
B 158-02-00600 Coupling
NOTE
Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual.
