Part 1 | Section 4 | Water/Steam System (FG150)

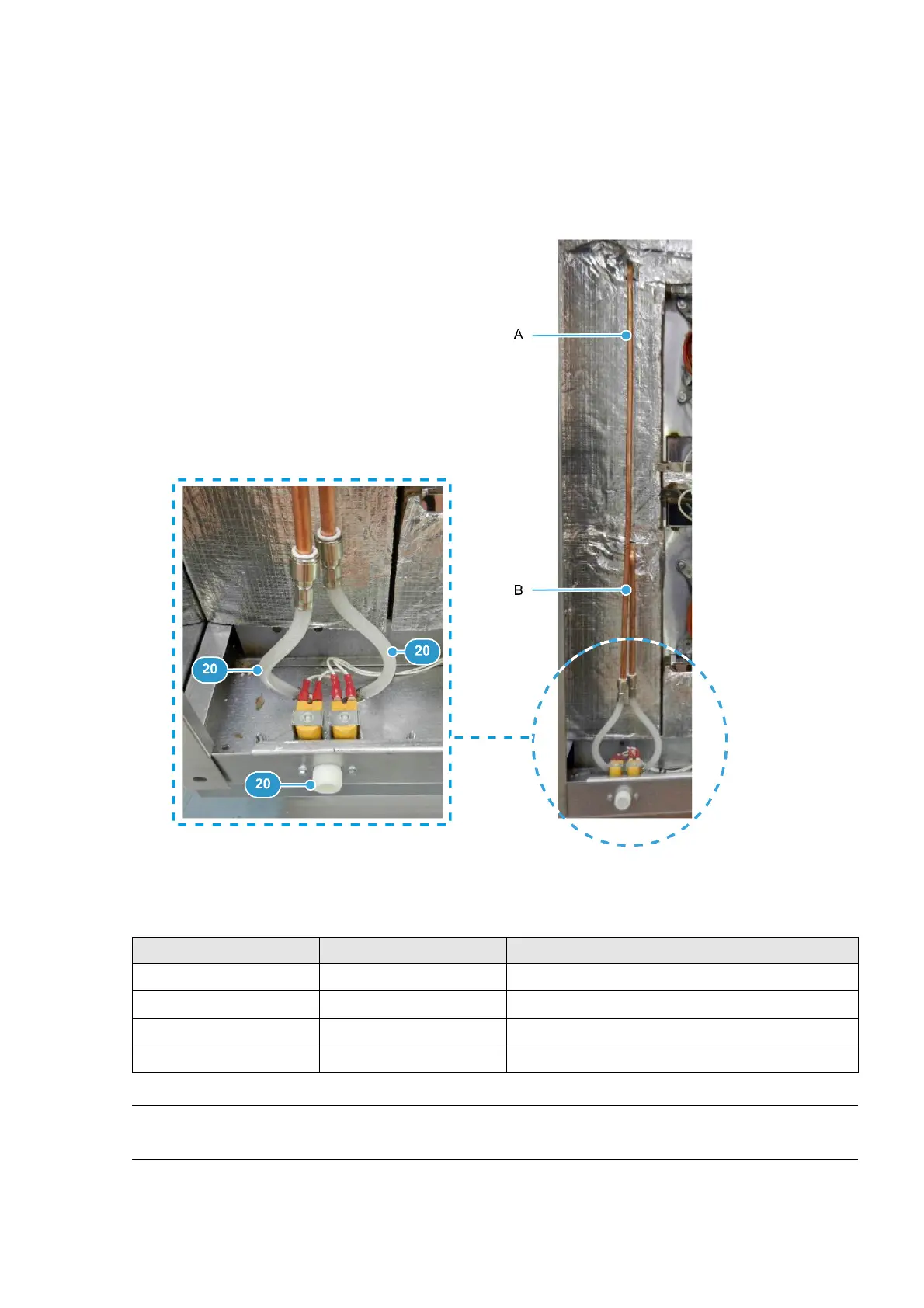

Figure 15: Water/Steam System (FG150) – 1
Table 8: Item numbers in Figure 15
Item Number Part Number Part Description
20 150-07-00400 Water solenoid (including hoses)
N/A A900-34-087 Hose – blue (not shown attached)
A 150-07-00800 Delivery pipe – long
B 150-07-00700 Delivery pipe - short
NOTE
Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual.
