Installation and Operation Manual MONO Bx Eco-connect Ovens
FG0BX-UK-MAN-0200 | Rev. A21 (July 2021) MONO 55

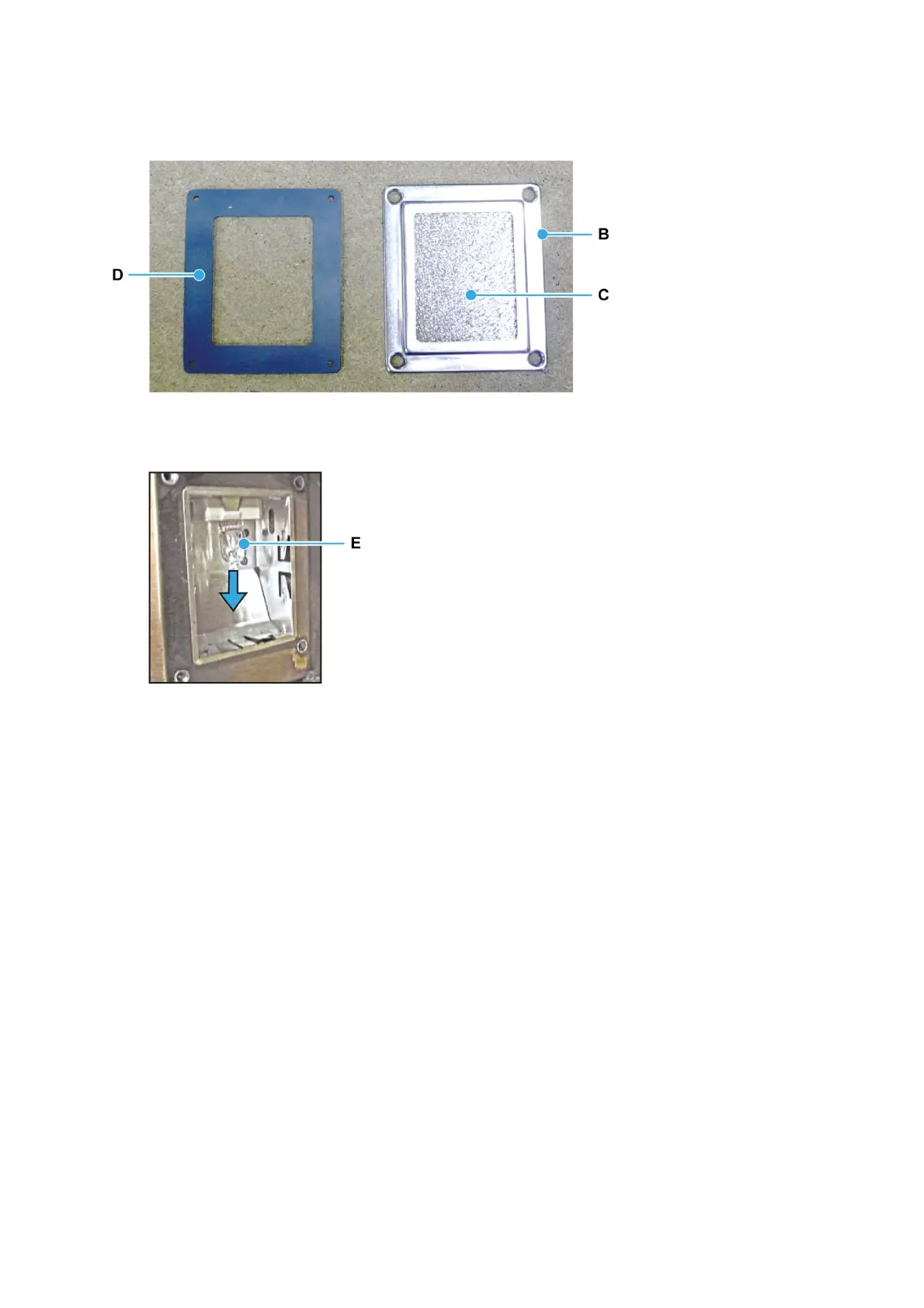

3. Take the frame (B), glass (C) and gasket (D) off the lamp unit.
4. Remove the light bulb (E) by pulling in the direction of the arrow. Replace it with a new light bulb.
5. Refit the frame (B), glass (C), and gasket (D).
Take care to position the gasket correctly around the stainless steel frame.
6. Safely re-connect the mains supply to the oven.
7. Test the oven.
