Installation and Operation Manual MONO Bx Eco-connect Ovens
FG0BX-UK-MAN-0200 | Rev. A21 (July 2021) MONO 97

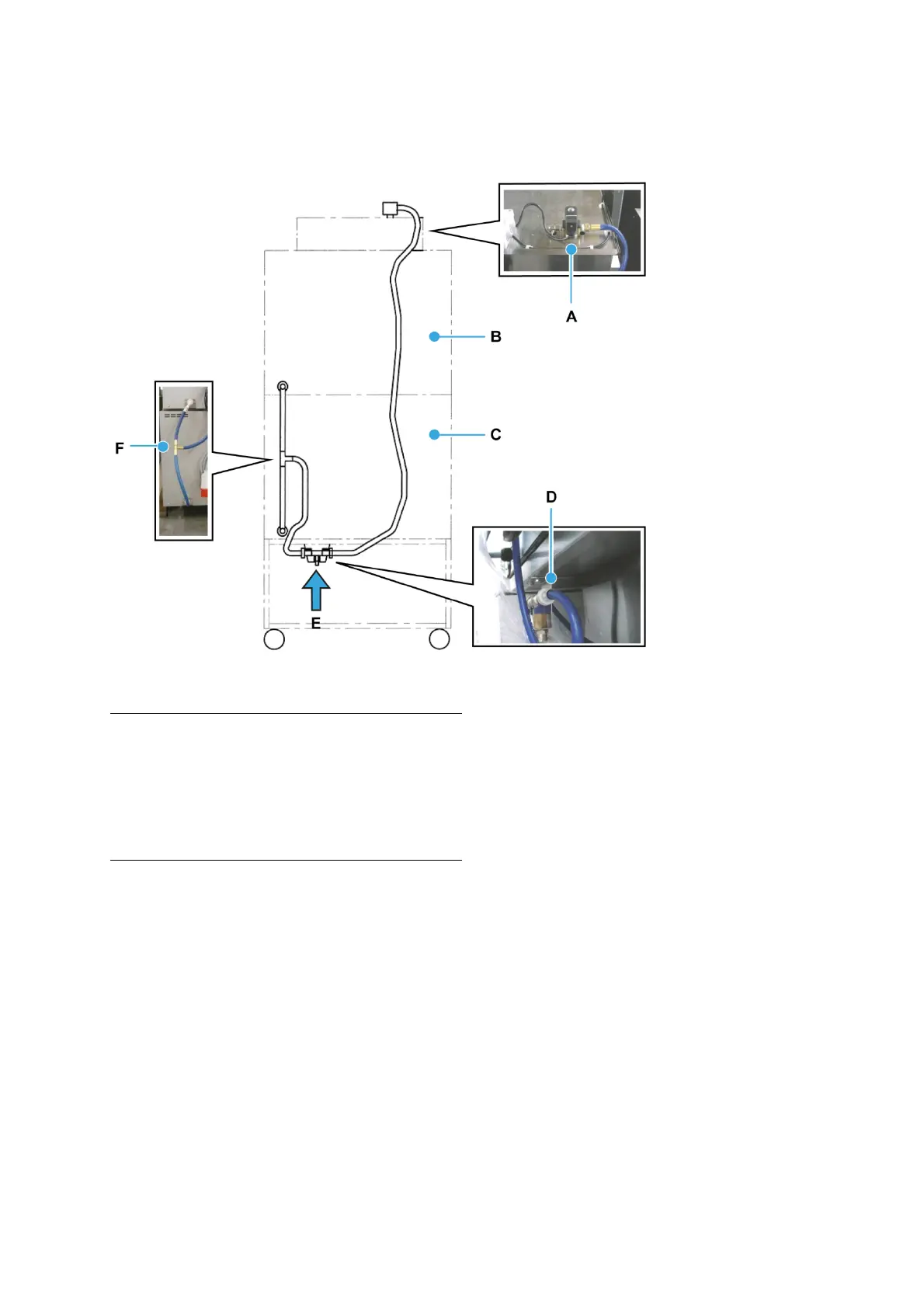

Figure 13: Water pipe connections
A. Condenser solenoid
B. Oven #1
C. Oven #2
D. Bracket fixings for the water tap
E. Mains water supply inlet
F. Tee-pipe for double oven connection
