Monogram 15900-012 - Page 48

Monogram Sanitation
COMPONENT MAINTENANCE MANUAL
PN 15900-012 Series
38-31-07
Jan 10/95
(e) Install spray nozzle (135) with washers (130) on each side, securing it with cotter pin
(125).
(f) Position drive shaft assembly (120) with thrust washer (110) on impeller housing
(115).
(g) Install thrust washer (110), impeller (105), thrust washer (100), and retaining ring (95)
on drive shaft assembly (120).
NOTE: Use thrust washers (110) as required to ensure full engagement of motor
drive shaft. Maintain a minimum clearance of 0.005 inch (0,13 mm) between
impeller and impeller housing (115).
(h) Install impeller housing plate (75) with impeller housing (115), using screws (80),
washers (85), and nuts (90) to frame assembly (195).
(i) Install filter basket (60), using washer (70) and nut (65).
(j) Install seals (55) and adapter plate (50), applying lubricant (Lubriplate 105) as shown
in Figure 701.
Page 706

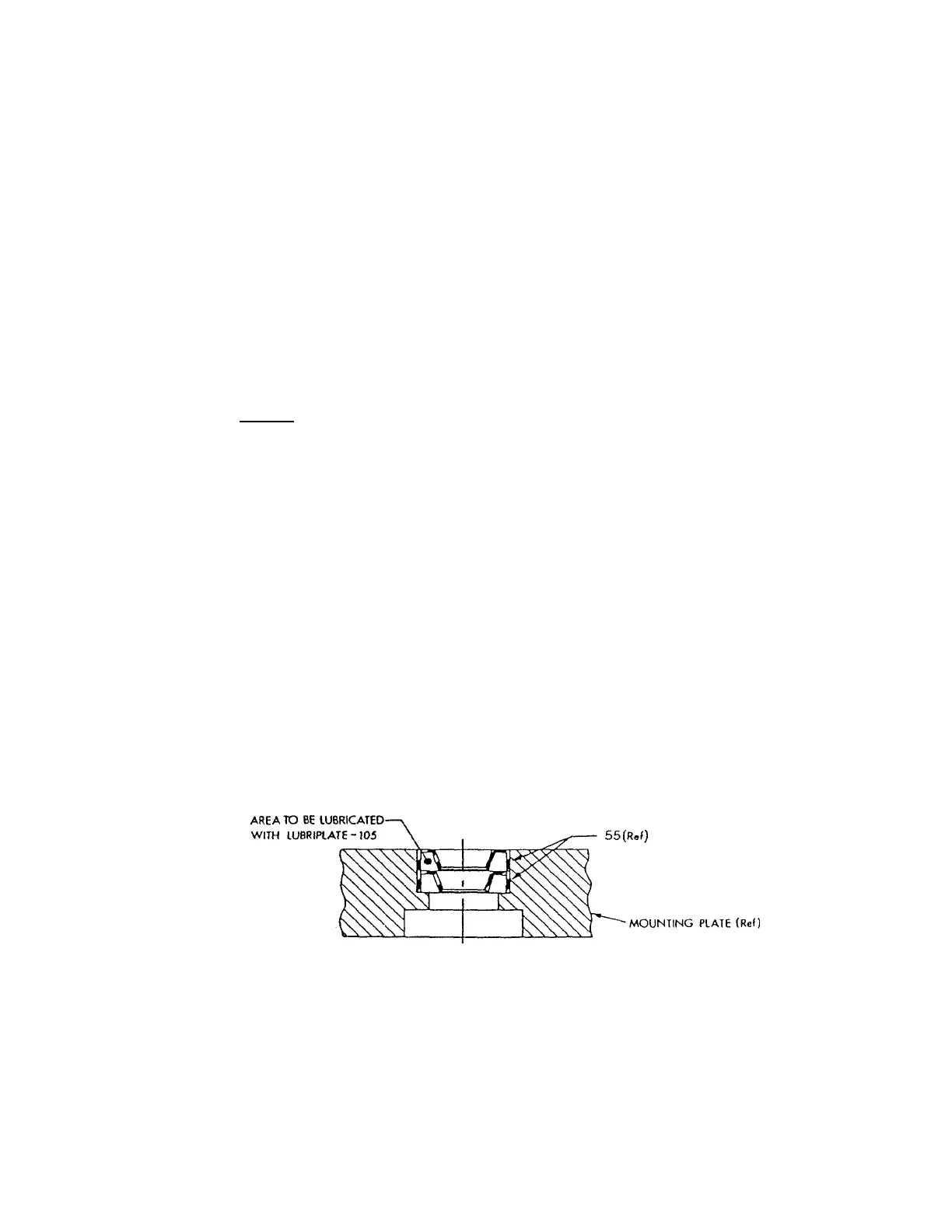

Cross Section of Mounting Plate
Figure 701
