MOODY Eclipse 43 - Page 72

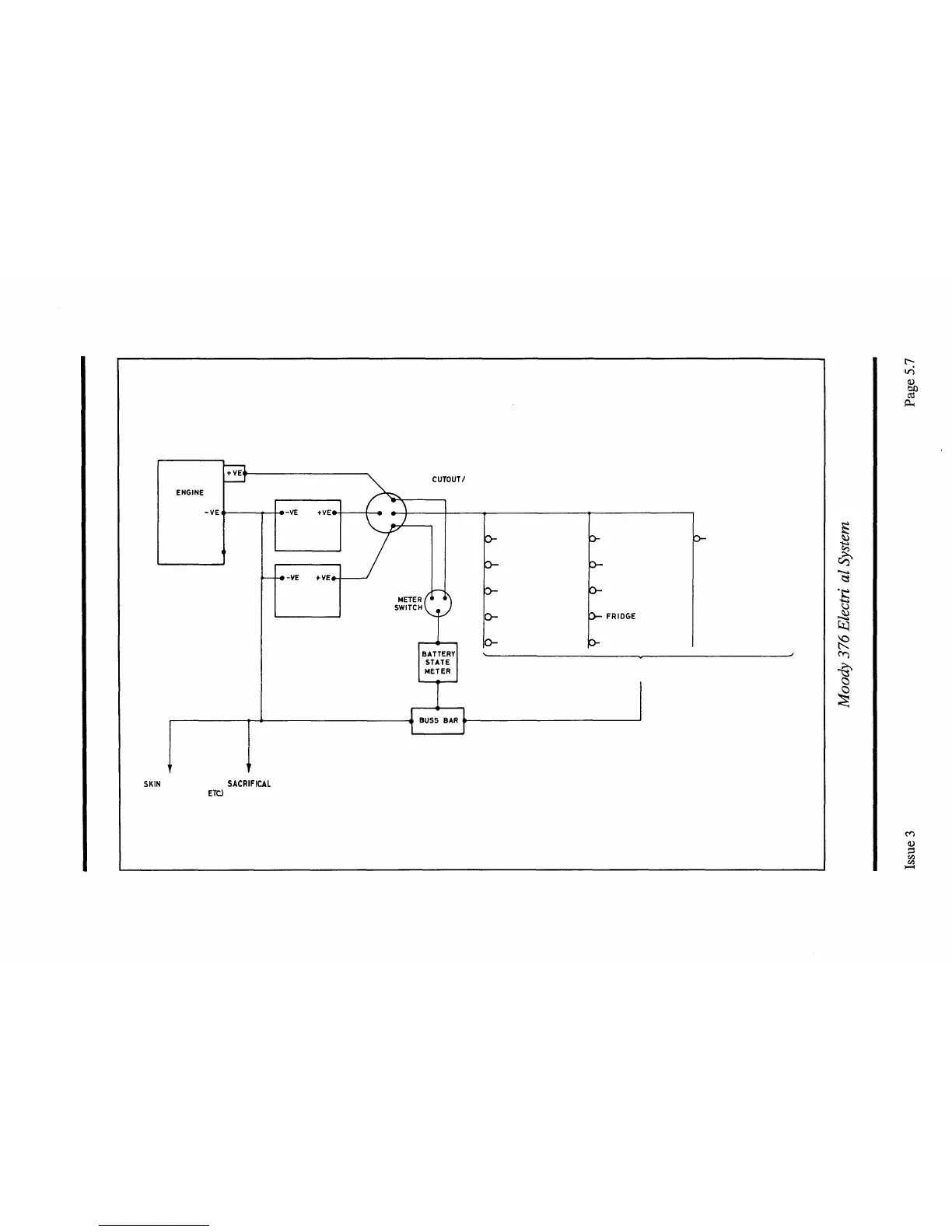

STARTER
DISCRETE CUTOUT/
BATTERY SWITCH
O- NAVIGATION LIGHT
O- STEAMING LIGHT
>- COMPASS LIGHT
O- DECK LIGHTS
O- ENGINE ROOM LIGHT
• CABIN LIGHTS
• BUNK LIGHTS
O- FRESHWATER SYSTEM
D— FRIDGE
• SHOWER PUMP
O- INSTRUMENTS
ALL NEGATIVES TO EARTH
VIA BUSS BAR
O
'JS
SKIN FITTINGS SACRIFICAL
(PROP, SEACOCKS ETC) ANODES
