Moo
Guitar Service Manual
Example

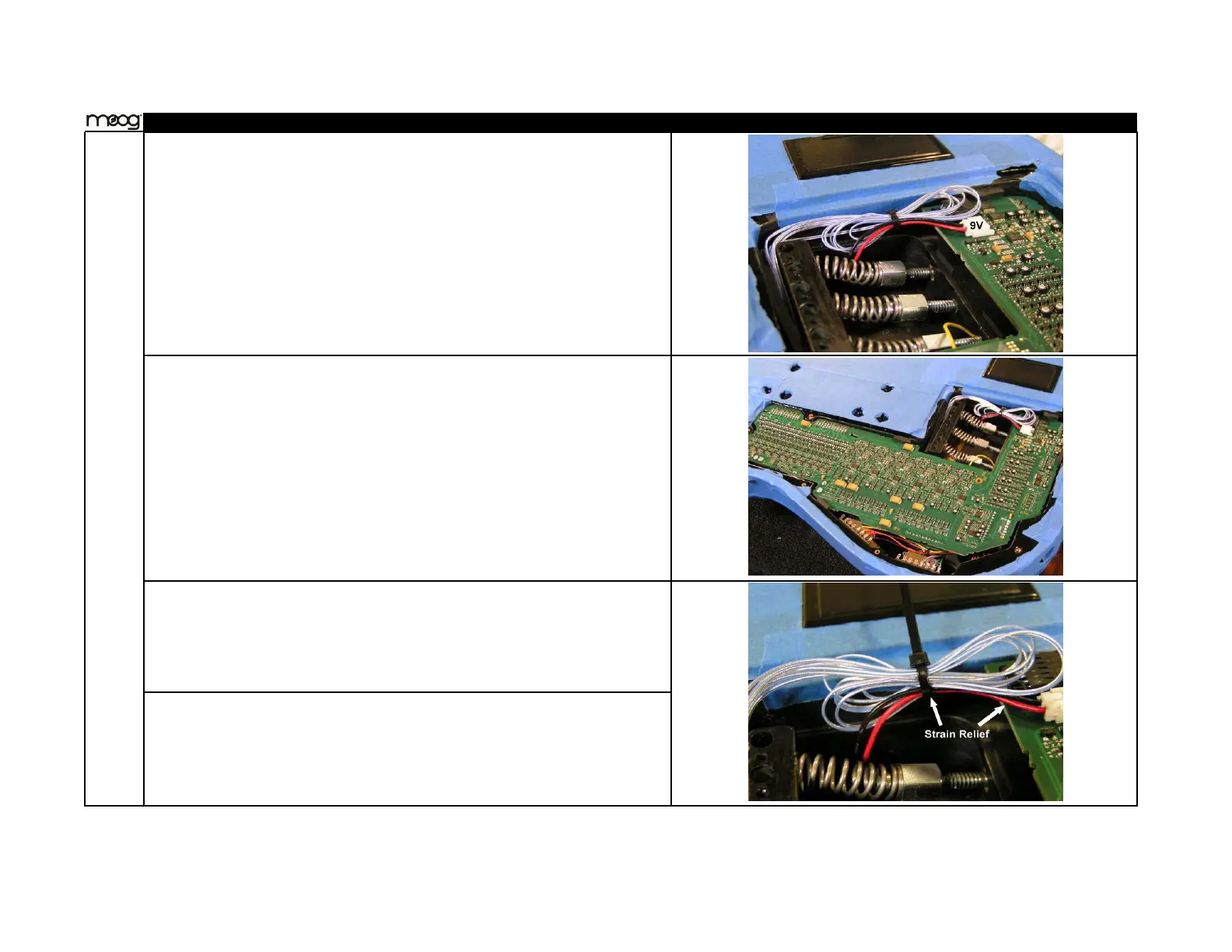

Connect 9V battery terminal. Due to alignment tabs on connector, this terminal
should only install in the correct orientation.
delicately press board into friction fit cavity. Start at piezo end of board and work
the rest of the board into the cavity around foam pieces. Shims may be necessary to
allow foam to hold the final portions of the board. Make sure board does not flex or
bend at any point.
add strain relief to piezo wires by installing zip tie through two holes in board and
around wires near connector.
group piezo wires together. Fold the group of wires into an “S” shape, then zip tie
bundle, including battery terminal wire for strain relief.
