74
© 2011 Skier’s Choice, Inc.

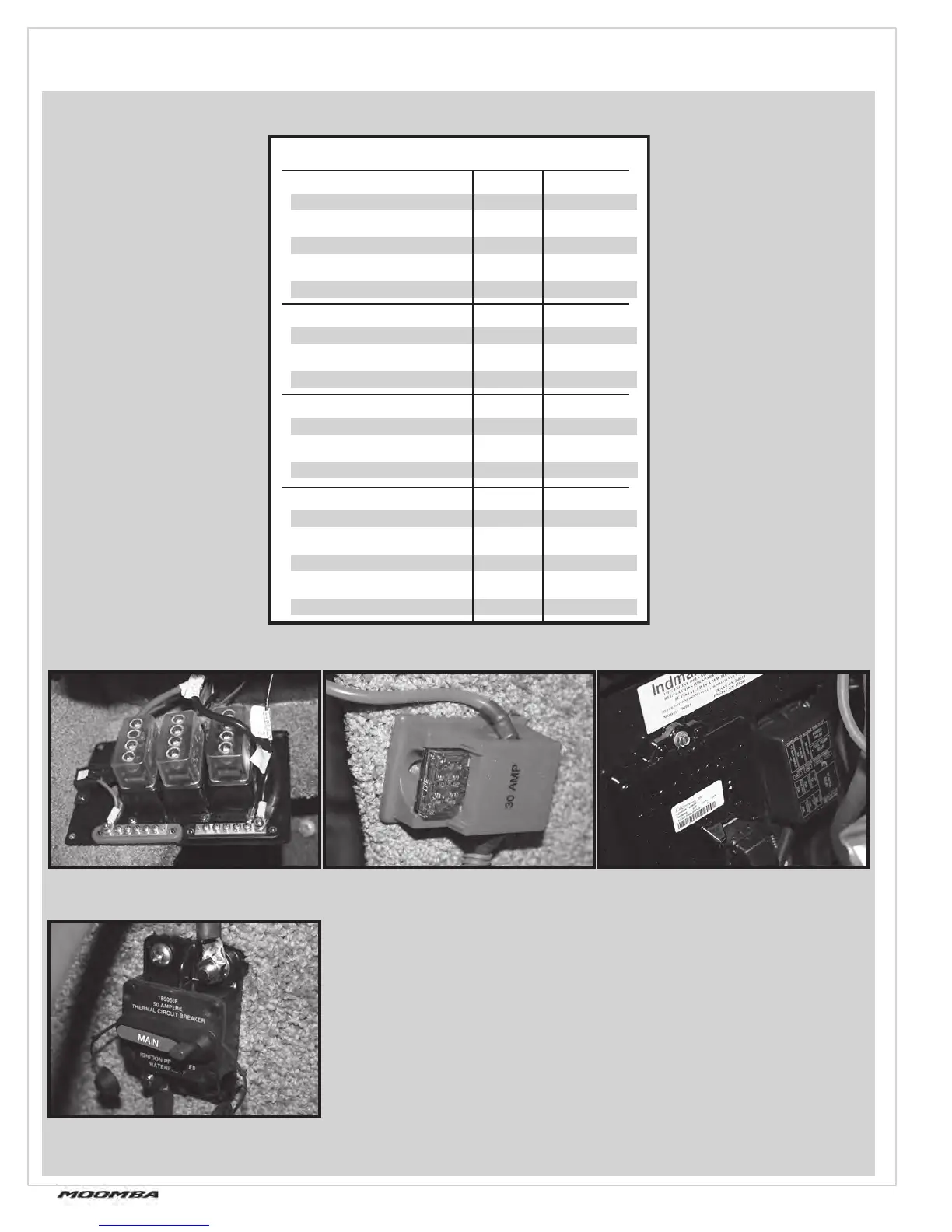

2011 Moomba Electrical Replacements
Fuses
Under Dash
Ballast Main (3 Position)
Ballast Empty Pump (1 Position)
Ballast Fill Pump (1 Position)
Stereo
Wake Plate
Breaker
ATO
Breaker
Breaker
Breaker
50 Amp
5 Amp
10 Amp
10 Amp
20 Amp
Type Size
Battery Connection
Amp Harness (5 Channel)
Amp Harness (4 Channel)
Amp Harness (2 Channel)
ANL
MAX
ATO
100 Amp
30 Amp
40 Amp
Back of Engine
Fuel Pump
Engine Ignition
Starter
ATM
ATM
ATM
20 Amp
20 Amp
20 Amp
Bulbs
Bow Light
Pole Light
Docking Lights
Tower Light Bar
Courtesy Lights
3175
906
MR16
H3
Sealed
12V8W
12V
50W 24 Degree
12V55W
(See Dealer)
Fuse Panel - Under Dash Fuse Panel - Battery Connection Fuse Panel - Back of Engine
Main Dash Power-Circuit Breaker
The power to the dash circuit is protected by a circuit breaker that is located
in the observer seat storage area near the battery.
To turn off the power to the dash, manually press the red button and the circuit
breaker reset lever will flip down and the power to the dash circuit will be shut
off. To reset the breaker, push the reset lever back up.
If all of the dash switches fail to work, reset the main dash power-circuit
breaker.
