MG18 Single Zone Wine Chiller Control Panel and Operating Instructions

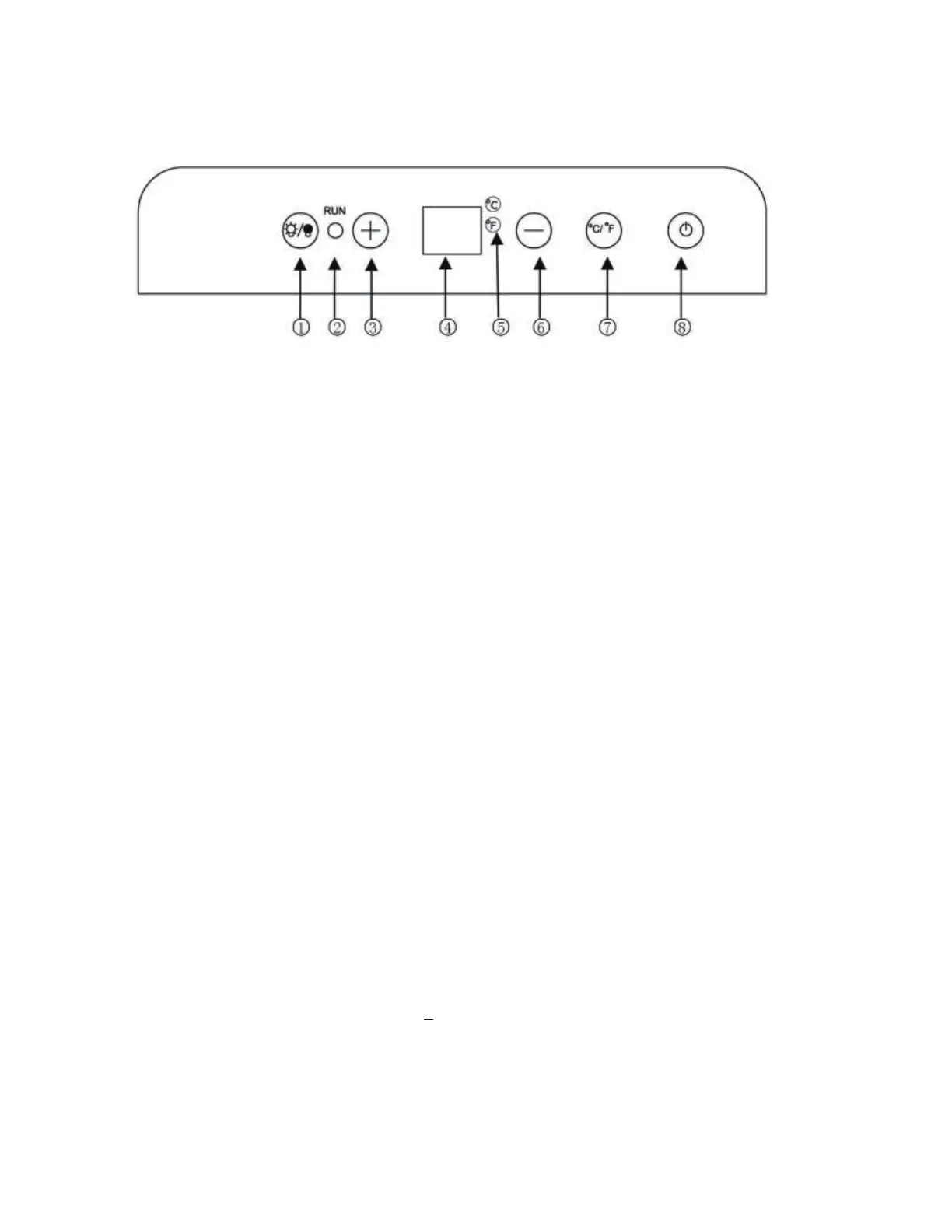

Control panel and operating instructions:
① Light switch: Press the button to turn on/off the light inside.
② Working Indicator: Light is on indicates the appliance is working.
③ Temperature Setting button (Increase): Press the button to increase the temperature inside. The number of
temperature will blink after the first press. Increase one degree(°F/°C) after pressing once each time. The
inside temperature will change after turning on the appliance and will finally stabilize with
±1 around the set
temperatur
e.
④ Thermostat LCD Display: Solid number shows the actual temperature inside the chiller while the blinking
number shows the set temperature. Press button ③ and ⑥ to adjust the temperature.
⑤ Temperature Unit: Shows the unit of temperature（°C/°F）. Press button ⑦ to switch between.
⑥ Temperature Setting button (Decrease): Press the button to decrease the temperature inside.The number of
temperature will blink after the first press. Decrease one degree(°F/°C) after pr
essing once each time. The
inside temperature will change after turning on the appliance and will finally stabilize with
±1 around the set
temperature.
⑦ Temperature Unit Switch Button: Press the button to switch the demonstrated temperature unit.
⑧ Power Switch: The appliance is default to be on after plugging. Press the switch once to turn off/on the
appliance.
Specifications
(1) Working Environment:At the temperature of 7-38°C(45-100°F) and the humidity should be
45-90%RH.
(2) Temperature range inside the chiller: For MG18,the inside temperature is adjustable from 5-22°
C(41-72°F).
(3) Accuracy of controlling the temperature: +1°C
(4) Working principle: Air cooling and frostless.
