MG75:
，
A：Glass door B: Hexagonal wrench

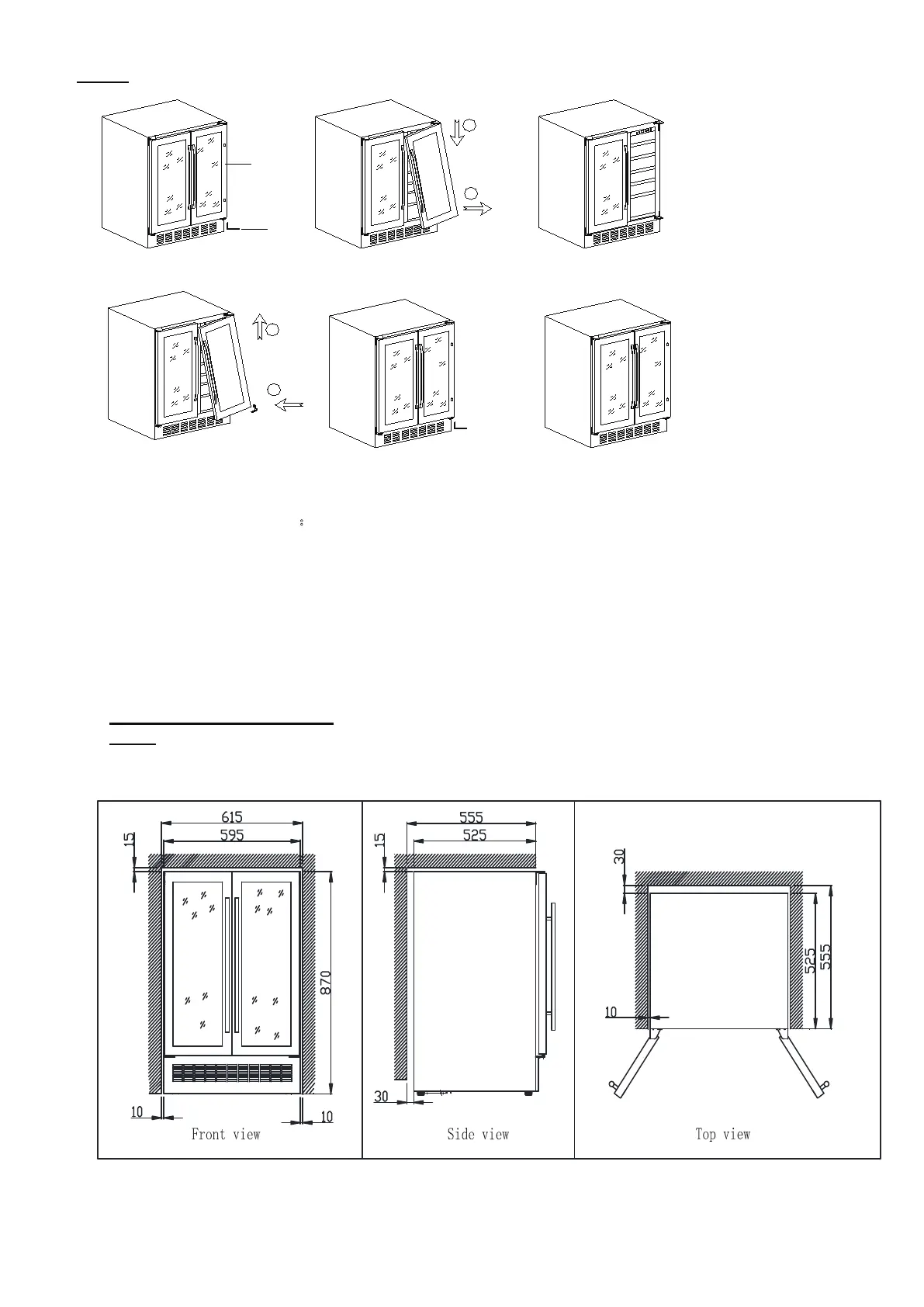

Procedure to reverse the door：
1. Fig:1，remove the screws on lower hinge by hexagonal wrench. Please hold the door to avoid the door drop
down after loosing of screws.
2. Fig:2 Remove the door in position ①, then take out the door in position②. Fig:3 shows the door is taken
out；
3. Fig:4 Tilt the door and insert to the top like ① shows, then move the door levelly to make it in the same level
with the cabinet (③)Fig:5，before tighten the bottom screws, to make sure the door is in the same level with
the cabinet.
4. Fig 6:
Door reverse is finished；
Built-in installation drawing
MG75
Fig:1 Fig:2 Fig:3
Fig:4 Fig:5 Fig:6
1
2
3
1
A
B
