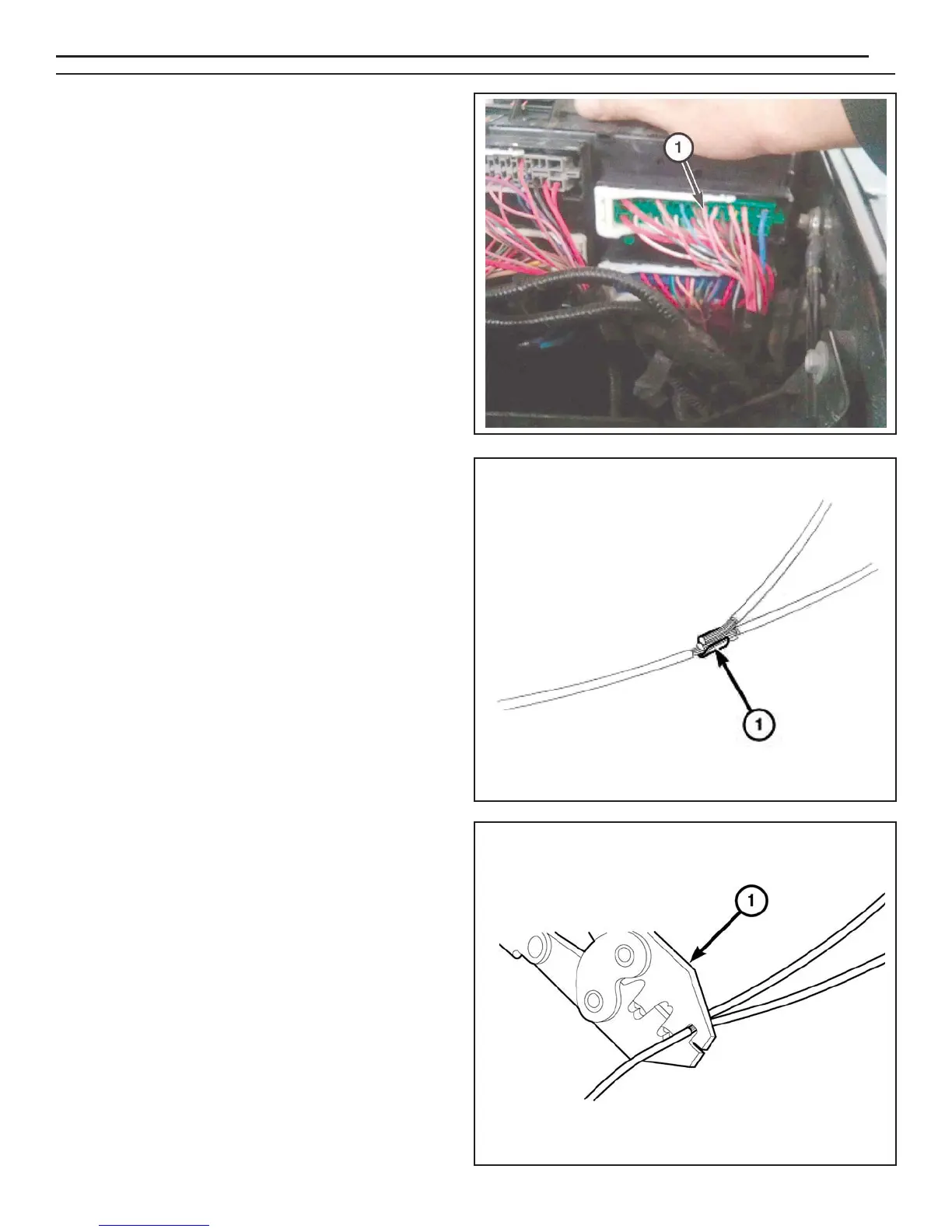

27. Rotate the PDC to gain access to the underside of
the PDC.
28. Locate circuit F923 (PK/YL) at cavity 13 (1) on the
underside of the PDC.
29. Splice the red wire from the supplied body harness
(C) to the PK/YL (F923) wire at cavity 13 of the PDC
(Splice and solder new wire to the original wire
using the soldering procedure in steps 30 thru 33).
30. Place the strands of the wires overlapping each
other inside of the splice clip (1).
31. Using Mopar
® crimping tool (1) or equivalent, crimp
the splice clip and wires together.
