Mopar Sun Bonnet - Sun Bonnet Installation Procedure; Step 1: Attach Snap Brackets to Footman Loops; Step 2: Install Buckle Straps on Sport Bar; Step 3: Attach Webbing to Bow Mount Bracket

13
1
4
2
2X
2X
A
D
B
C
D
8-27-14 65626 Rev. C 3 of 6 K6862319

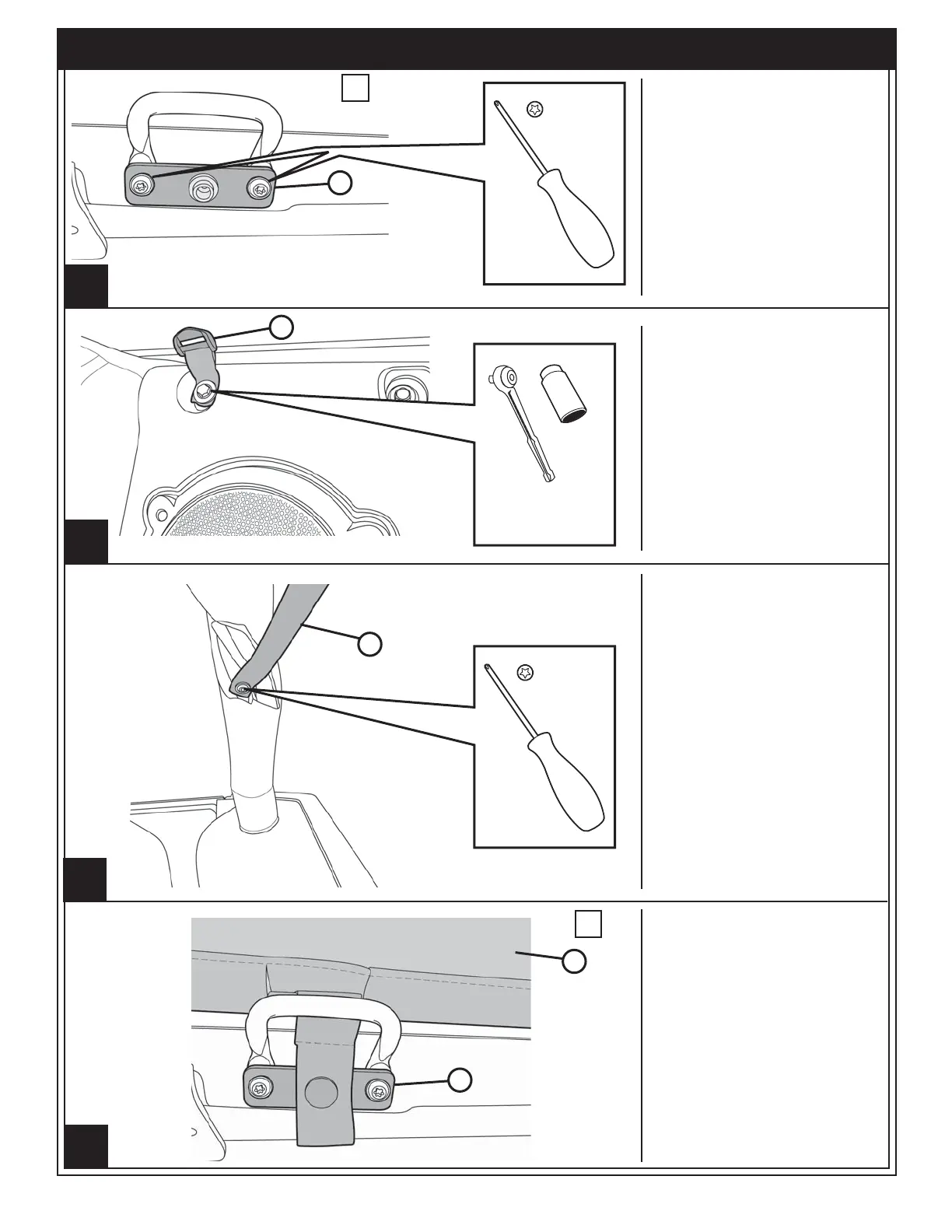

Remove the bottom
screw that attaches
the soft top bow
mount bracket. If you
don’t have bow mount
brackets use the
supplied Screw and
attach the web strap with
the tag end pointing up.
Remove screws that
attach outboard footman
loops. Attach Snap
Brackets over footman
loop with screws that
were removed.
Remove the front
outboard screw that
secures the sound bar
to the sport bar. Orient
the Buckle Straps
so webbing can be
threaded into it from the
top. Install the Buckle
Straps with the screws
that were removed.
Drape the Sun Bonnet
over the sport bar with
the snap tabs at the
front. Thread the snap
tabs through the top of
the footman loop and
snap them to the snap
brackets.
T-25
Torx
10mm
Socket
T-30
Torx
