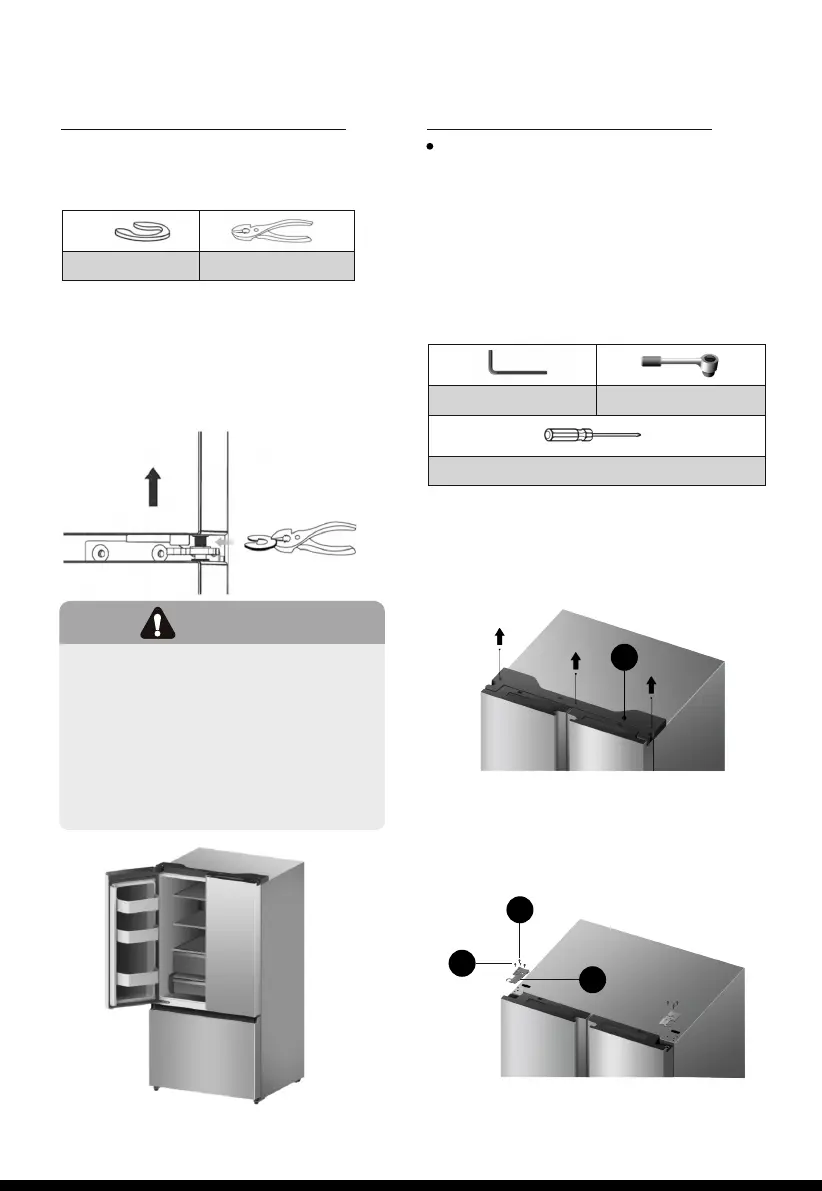

Adjusting Door Height and Gap
In case your home access door is too
narrow for the refrigerator to pass
through, remove the refrigerator doors
and drawers. If you do not need to
remove the appliance doors, proceed
to ‘Installing Water Lines’ on page 10.
If you need to remove the doors,
continue below.
Door Removal
Tools you will need(Not provided)：
Allen Wrench (5/32",4mm)
Philips Screwdriver
Wrench (5/16",8mm)
With the door closed, remove the 3 screws
holding the top cover (A) with Philips (+)
screwdriver, and then remove the top
cover with the entireharness attached.
Remove the screws (B) fixed on the hinges
with a wrench (5/16",8mm) and 1 ground
screw (C) attached to the hinge with
Philips (+) screwdriver. Remove the upper
left and right door hinges (D).
A
B
D
C
1.
2.
8
The height of a door can be adjusted
using the provided Snap Rings.
Tools you will need:
Snap Ring (4pcs) Wrench(Not provided)
To adjust the Height of Door
1. Check the height difference between
the doors and then lift and hold the
lowest door to be even with the other.
2. Insert a suitably sized Snap Ring between
the Door and the Hinge as shown.
IMPORTANT !
1. Insert only one Snap Ring. If you insert
two or more Snap Rings, they may slip
out or cause a rubbing noise.
2. Do not raise the door too much. The
door may contact and damage the
top cover.
3. Save rermaining Snap Rings for
possible future use.
O
O
