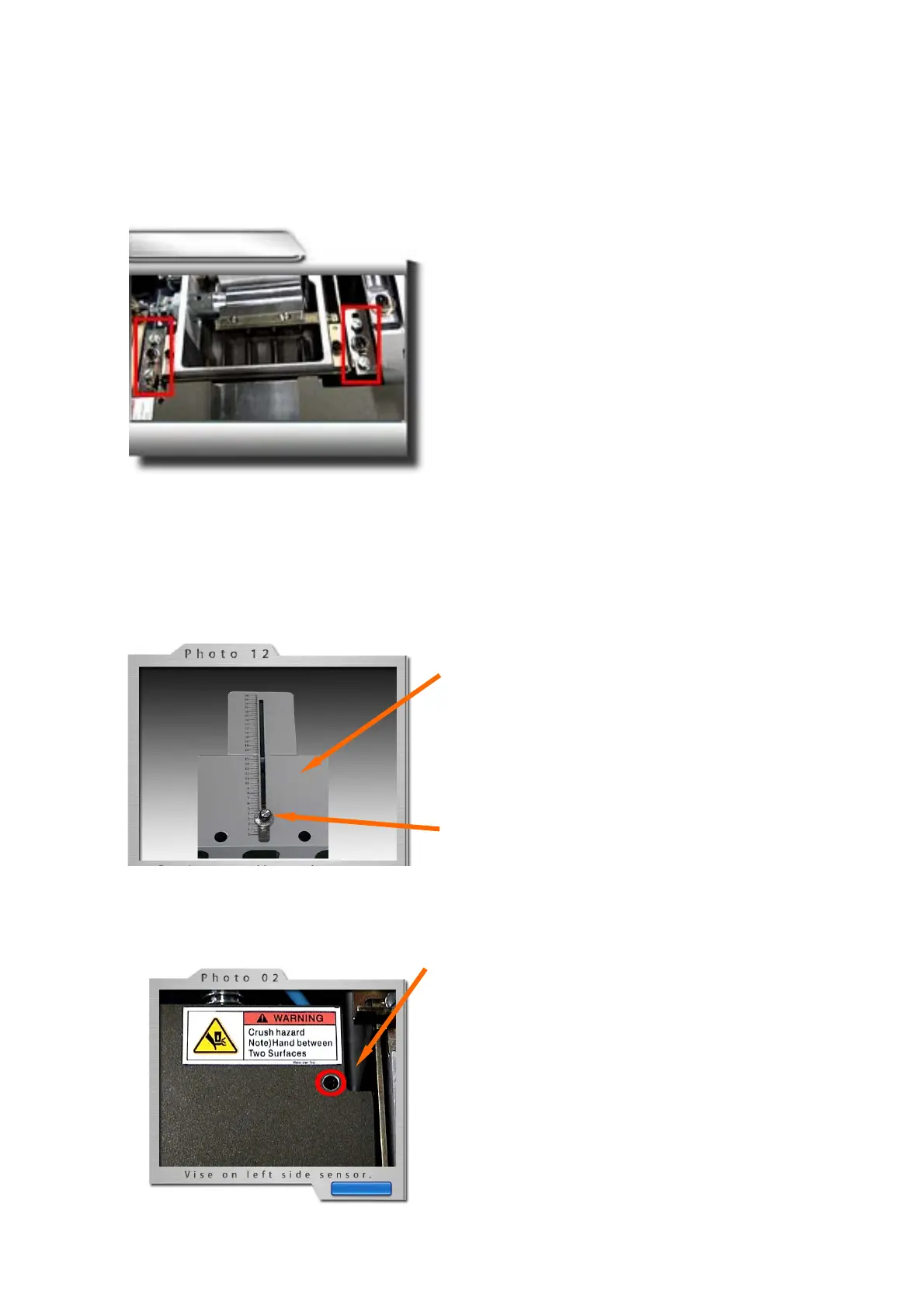

5. Cover Positioning Side-Guides
(Position of Guides can be adjusted in correct manner if desired.)
Cover Side Guide assy´s (2)
(Adjustable if not in correct position)
The cover has to be placed with it`s right hand long
edge against these guides in order to meet the
bound paper-set to be covered in right angle.
¨
6. Cover Top Positioning Guide Assy
(Position of Stop is related to size of cover)
Cover Top Positioning Guide Assy
(to be hooked on whilst installation. It is a content in
the accessory package)
Thump screw for positioning the top cover stop.
7. Cover Sensor
Cover Sensor
This Cover Sensor must be covered by cover-sheet
for binding.
If not covered, the machine will not start clamp
moving for binding.
Optional:
If the padding option is installed a Protection-
Film has to be positioned instead of a cover sheet.
In padding action the cover clamp-device is
disengaged. The Protection-Film simulates a cover
for the sensor and is a protection for the surface of
cover-device. In case by failure a none-cover-book
is released too early off clamp and might touch with
spine the surface of cover device.
