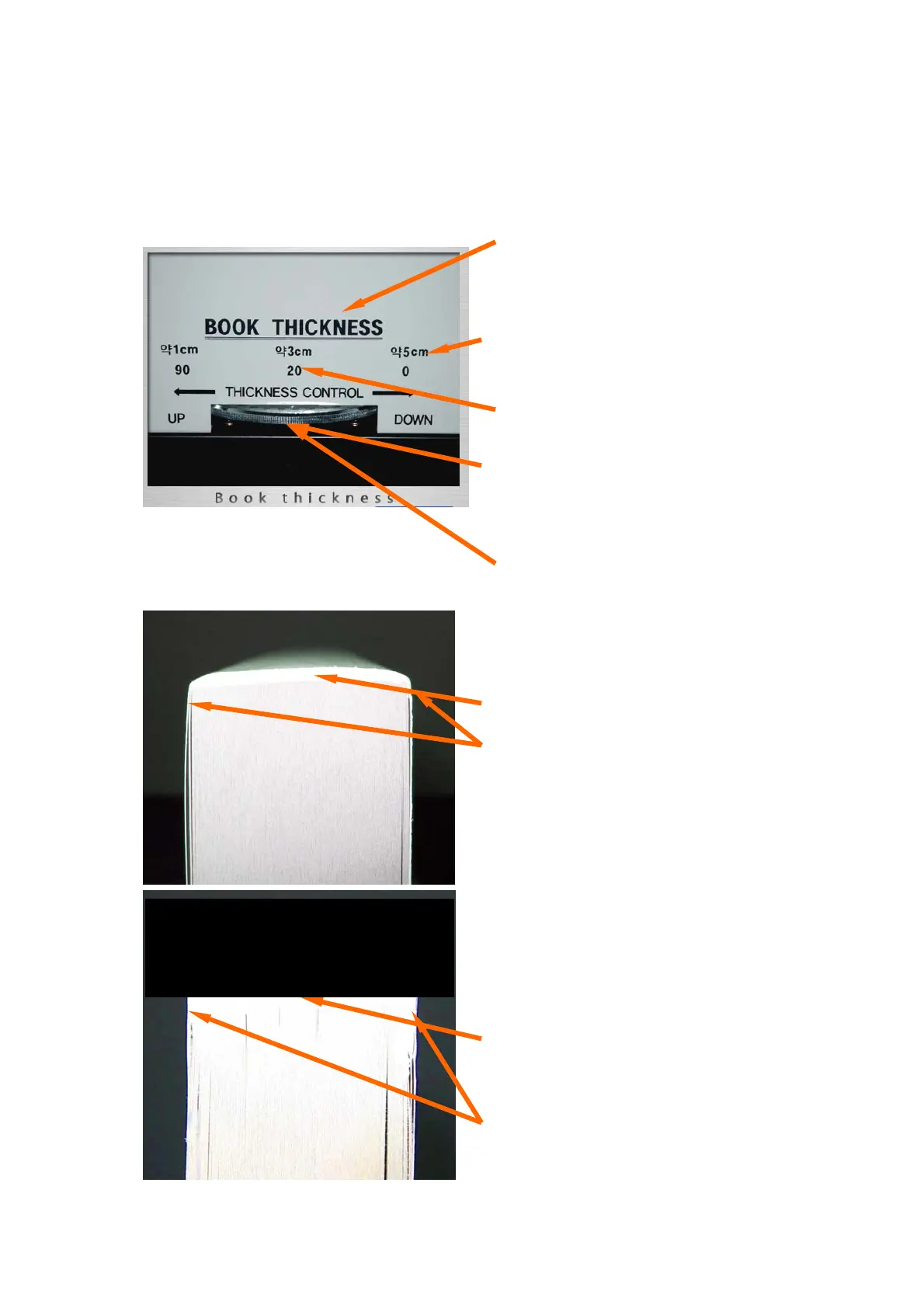

8. Book/Cover Thickness Control
(Adjusting the height position of Cover-Clamp)
Control for individual adjustment in
respect to thickness of book and/or
thickness of cover-sheet-material.
Average book thickness to be
bound:
90 = app. 1 cm thickness of spine of book
20 = app 3 cm thickness of spine of book
Numbers on scale on Handwheel
Book (Spine) Thickness
Handwheel to be turned to left = UP = thin
book or turned to right = DOWN = thick
book.
Cover-Sheet Thickness
Handwheel to be turned to left = UP = light
weight cover sheet or turned to right =
DOWN = heavy weight of cover sheet
¨
Example: Handwheel: Down
Result of adjustment
Thick layer of glue on spine
Remaining glue is slightly pressed
sidewise and up between cover and
fonr/back sheets!
Example: Handwheel: UP
Result of adjustment:
Thin layer of glue on spine.
Remaining glue is slightly pressed
sidewise and up between cover and
fonr/back sheets!
