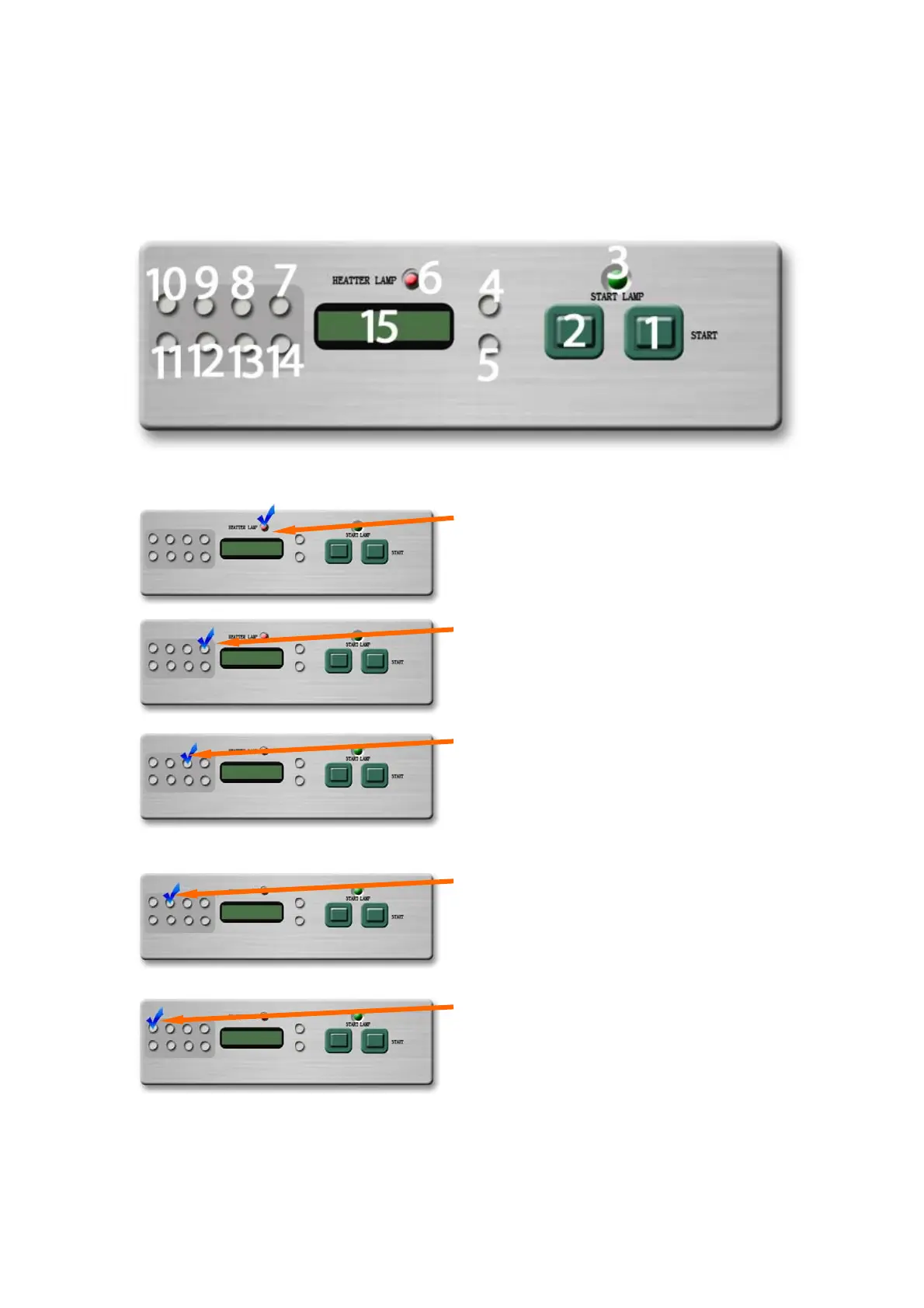

9.2. Main Operating Panel
(Control board for binding)
Heater Lamp
Indicates that glue heating is in ON position
6
Reset (All Clear) Button
All (pneumatic) clamping actions for paper and
cover-device opens.
Counter sets to “0”
7
Stand-By-Button (Switch)
First press = glue temperature in stand-by
Second press = stand by released to normal
Stand-by temperature = 130 degree
8
Button for: Cover clamp up
In cover station the cover press-plate moves
up.
9
Button for: Cover side clamp close
In cover station the cover side-pressing plates
move onto cover/book.
10
