Metering System - Continued

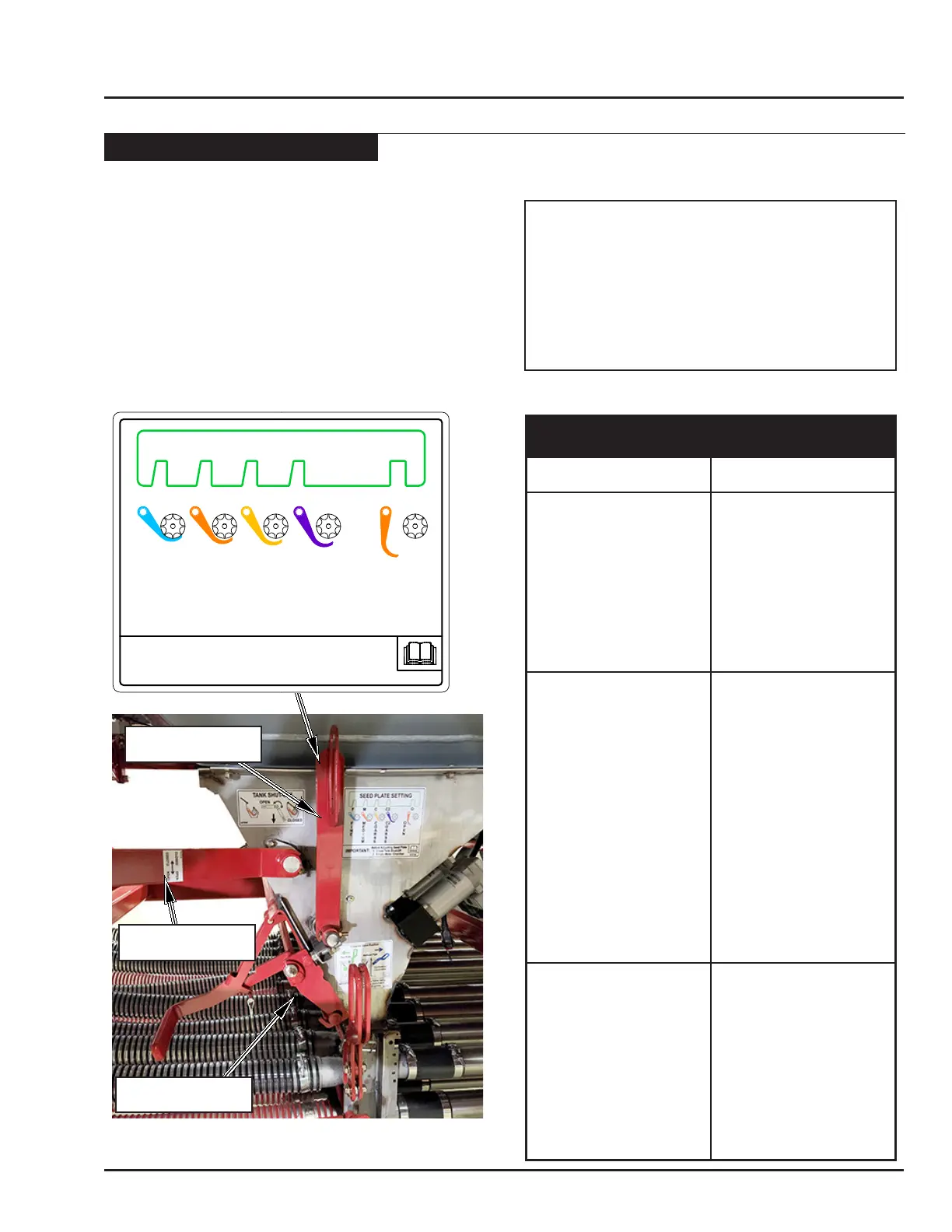

Seed Plate Setting
Each meter wheel has an adjustable seed plate.
The seed plates are adjusted by a single lever
adjustment on the metering body assembly.
Note: Seed Plate Chart is a suggested usage.
Product variations could require a different
setting to be used for proper metering.
i.e. Clean 11-51-0 Fertilizer may require a
Medium seed plate setting to reduce product
flow.
Important
Do not attempt to close Seed Plate with
product in the Metering Body, damage can
occur from product being squeezed between
the meter wheels and seed plates.
Seed Plate Lever
F M C C2 O
F M C C2 O
I E O
N D A
E I R
U S
M E
O
A
R
S
E
P
E
N
SEED PLATE SETTING
1. Close Tank Shut-Off
2. Empty Meter Chamber
IMPORTANT:
Before Adjusting Seed Plate
N72798
Inspection Door
Tank Shut-Off
Seed Plate Setting
Product Seed Plate Position
Canola
Canary Seed
Clover/Alfalfa
Flax
Mustard
Nitragin
Edge
Fortress
Rival
Fine
Barley
Lentils
Milo
Oats
Rice
Wheat
Safflower
Nodulator
Tag Team
Fine Fertilizer (with no
Sulphur or Potash)
28-0-0 Fertilizer
46-0-0 Fertilizer
34-17-0 Fertilizer
20.5-0-0-24 Fertilizer
Medium
Beans
Peas
Soybeans
Sunflowers
0-0-60 Fertilizer
0-45-0 Fertilizer
10-46-0-0 Fertilizer
11-51-0 Fertilizer
Fertilizer containing
Sulphur and/or Potash
Coarse
