ASSEMBLE INSTRUCTIONS
The fan is packaged with its foundation and other parts unattached. You must attach
them before operating the fan.
WARNING: Never operate the fan, without its foundation and other parts attached. Fan
should operate only in upright position; any other position could create a hazardous
situation.

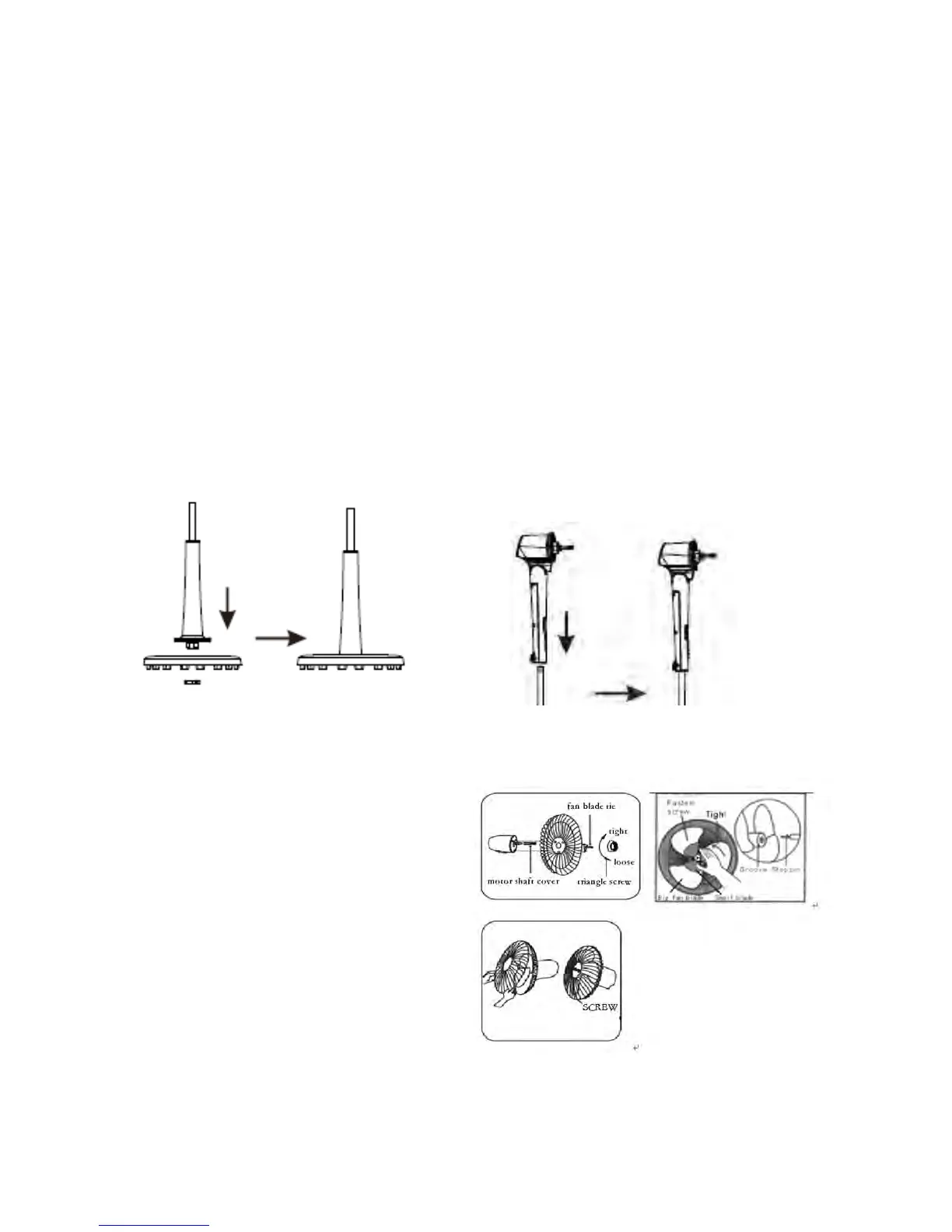

Assemble sequence of the foundation and other parts as follow:
1. Unpack the fan and remove all parts from the package.
2. Use the bend bolt and the press plate provided, to attach the stand post parts
onto the base.
3. Adjust the lift pole to the desired height, and then lock it with the locknut for
lifting.
4. Loose the locknut on the switch box and insert the lift pole into the hole located
on the bottom of the switch box, then fasten the locknut back tightly.
5. Take off the motor shaft cover
from the fan head, and revolve the
triangle screw off. Then take off
the blade tie on the back grill, put
the grill back, ensuring that
locating pegs are engaged
correctly in the three holes of the
grill. Then, tighten the triangle
screw counterclockwise.
6. Push the big fan blade onto the
notch, until it is stuck on the
stopper pin of the motor shaft, and
then tighten the small fan blade
counterclockwise.
7. To attach the front grill to the back grill, use carefully the grill ring to hold them
