Clearance requirements for 2B Standard with & without shields (Doubleewall connector)
20“ (508 mm)
12“ (305 mm)
16“ (406 mm)
26“ (660 mm)
14“ (356 mm)
19“ (483 mm)
20“ (508 mm)
12“ (305 mm)
16“ (406 mm)
26“ (660 mm)
14“ (356 mm)
19“ (483 mm)

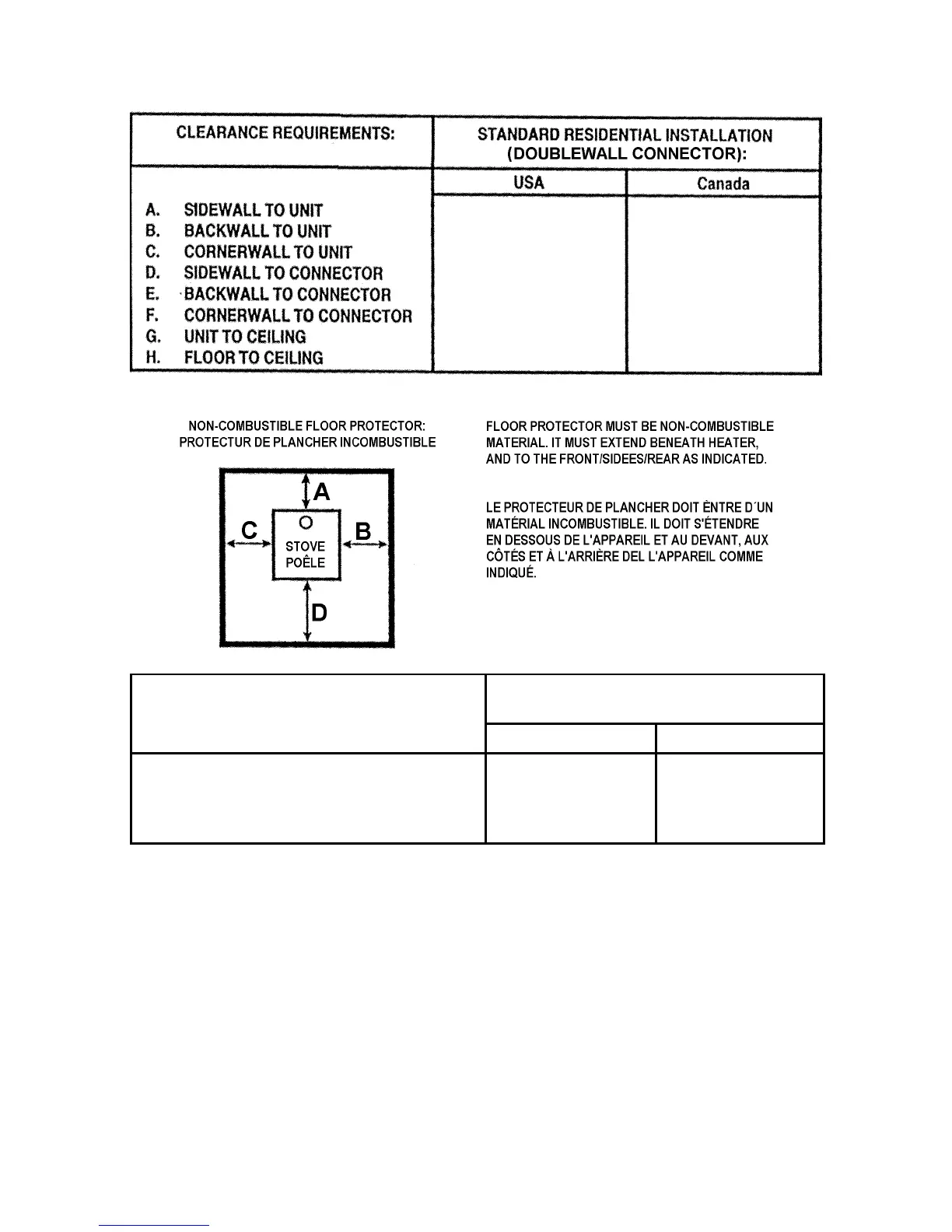

FLOOR PROTECTION REQUIREMENTS NON-COMBUSTIBLE MATERIALS
BENEATH STOVE
USA CANADA
A.
B.
C.
D.
-
6’’
6’’
16’’
200 mm.
200 mm.
200 mm.
450 mm.
EXTENDING DISTANCE, BACK
EXTENDING DISTANCE, RIGHT SIDE
EXTENDING DISTANCE, LEFT SIDE
EXTENDING DISTANCE, FRONT
In the US, floor protection must be constructed of a non-combustible material and installed to
extend beneath the heater and 16'' to the front and 8'' to the sides of the fuel loading door and
ash removal openings. In Canada, floor protection must be constructed of a non-combustible
material and installed to extend beneath the heater and 450 mm.(16'') to any side with a door
and 200 mm.(8'') beyond the appliance on the other sides.
