Morso 3410 - Installation and Safety; Checking Stove Parts

4
DK ENG
On the oor
National and Local Building Regulations must again be observed when considering the type,
thickness and area of the hearth to be used in the installation. The hearth temperature under
safety test was less than 65°C.
One should of course always make certain that the underlying oor surface can bear the
weight of the stove.
Clearances to Furniture
The clearance requirement from the stove to any furniture should be no less than 800 mm. It
is always necessary to assess whether or not any furniture or other objects situated close-by
can be aected by heat, i.e. dried out.
The distance to any combustible material in front of the stove is minimum 800 mm.
The surface of a wood burning stove gets extremely hot when used and therefore special
attention to safety is paramount, especially where children or the inrm are present.
Minimum distances from ammable material:
Stove type Behind the
stove (A)
To the sides of
the stove (B)
Above the
stove
To furniture
Morsø 3410
uninsulated ue
400 mm 600 mm 600 mm 800 mm
Morsø 3410
insulated ue
200 mm 600 mm 600 mm 800 mm
Morsø 3440
uninsulated ue
350 mm 350 mm 600 mm 800 mm
Morsø 3440
insulated ue
200 mm 300 mm 600 mm 800 mm

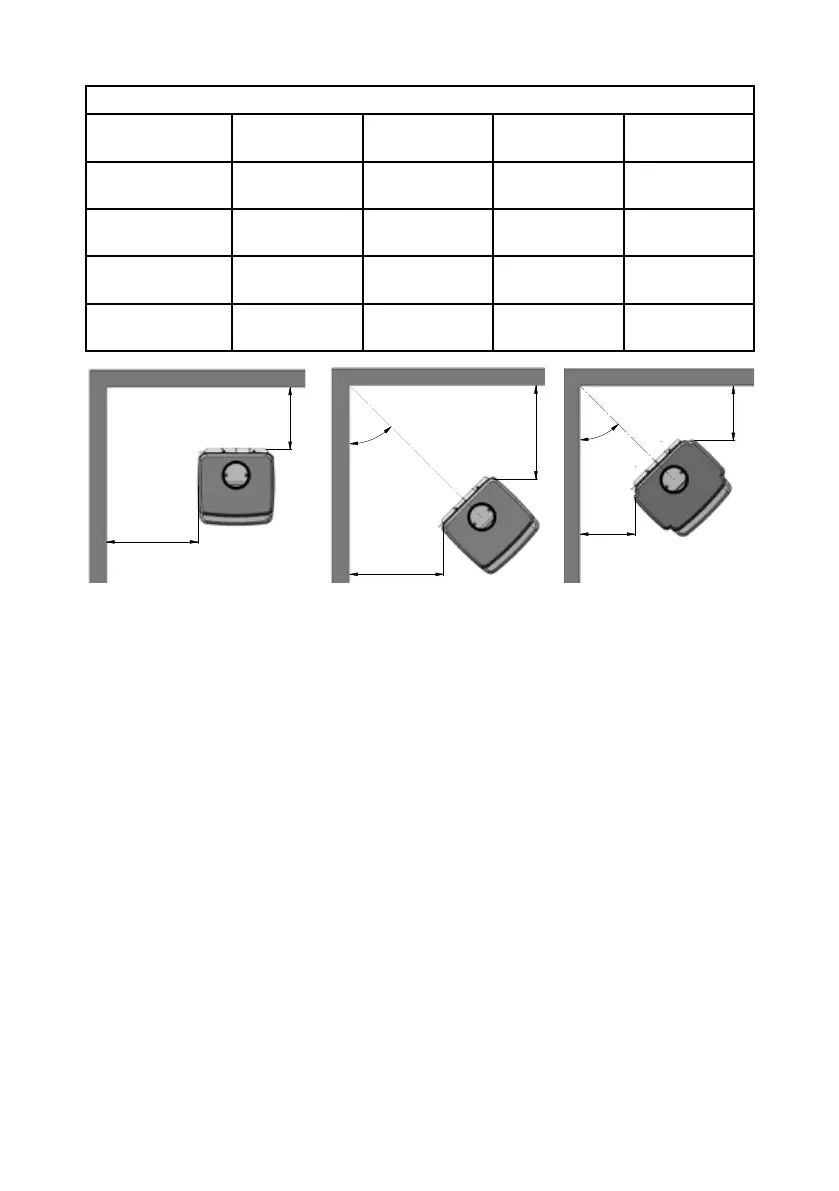

3410 corner installation 3440 corner installation
B
B
45°
