1.5 Positioning the stove
Distance to walls and lintel
When the stove is positioned near combustible materials, observe all current local and na-
tional building regulations with regards to clearances. Whatever regulations apply to your
area, do not in any case install the stove within 8 inches of combustible materials around the
sides or 16 inches above the top of the stove (replace installations require greater clear-
ances above the stove - see below in the clearance chart). These distances may need to be
increased if the materials are sensitive to heat. Note also that wall paper and other decora-
tive materials may become detached with the eects of heat and care should be taken to
ensure that they do not fall towards the stove in such an event.
When the stove is positioned near non-combustible materials, a gap of 4 inches or more is
recommended for cleaning purposes and to ensure that heat circulates around the stove
and out into the room.
If using rear exit, the oor protection must extend beneath the chimney connector and 2-in
beyond each side.

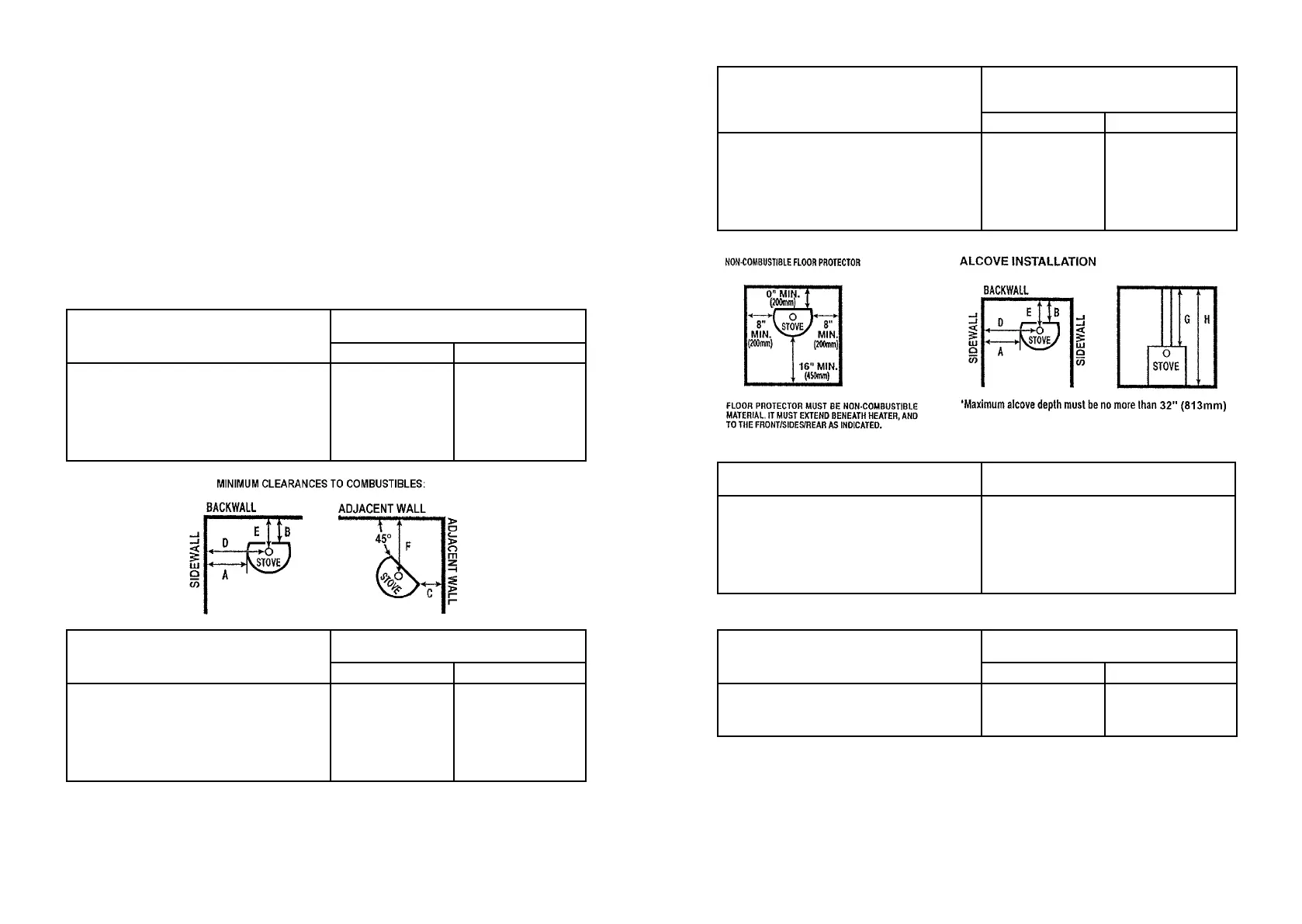

CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
SINGLEWALL CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
10”
3”
5”
15.5”
7.5”
10”
54.5”
84”
254 mm
76 mm
127 mm
394 mm
190 mm
254 mm
1384 mm
2134 mm
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
DOUBLEWALL CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
10”
2”
5”
15.5”
6.5”
10”
54.5”
84”
254 mm
51 mm
127 mm
394 mm
165 mm
254 mm
1384 mm
2134 mm
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
REAR VENT OUT BACK WALL SINGLEWALL
CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
10”
6.5”
-
15.5”
-
-
-
-
254 mm
165 mm
-
394 mm
-
-
-
-
FLOOR PROTECTION REQUIREMENTS NONCOMBUSTIBLE MATERIALS
BENEATH STOVE
USA CANADA
Extending distance, back
Extending distance, right side
Extending distance, left side
Extending distance, front
-
8”
8”
16”
200 mm
200 mm
200 mm
450 mm
CLEARANCE REQUIREMENTS ALCOVE INSTALLATION
DOUBLEWALL CONNECTOR
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
12” (305 mm)
3” (76 mm)
-
17” (432 mm)
7.5” (190 mm)
-
24.5” (622 mm)
54” (1372 mm)
Distance to furniture
The recommended minimum distance from stove to furniture is 30 inches. Note that some furniture
is more easily aected by heat and may need to be moved to a greater distance. This is your respon-
sibility.
In addition other combustible materials, away from the stove. In general, a distance of 30 inches must
be maintained between the stove and moveable combustible item such as drying clothes, newspa-
pers, rewood etc.
