Top plate/Plaque supérieure
P - 34790800
V - 44790821/07
Screw/Vis
73861400
Screw/Vis
73861000
Tube
54202500
Washer/Rondelle
79189700
Hinge fitting/
Raccord charnière
71791000
Draught control/
Réglagetirage
71790700
Screw/Vis
731635
Convection plate/
Plaque de convection
P - 71790100
V - 54790121/07
Tube
542635
Screw/Vis
731640
Washer/Rondelle
791891
Air Canal Rear/
Conduit air, arrière
44794100
Cover/Couvrir
P - 71790900
V - 54790921/07
Screw/Vis
73861400
Ash pan/
Cendrier
71790200
Draught control/
Réglagetirage
71791300
Handle f. draught control/
Poignée pour Réglagetirage
75790261
Tube
71810200
Washer/
Rondelle
736106
Screw/Vis
74162000
Screw/Vis
731635
Washer/Rondelle
791891
Screw/Vis
74161200
Screw/Vis
73850800
Glass/Vitre
79790300
Glass fitting/
Raccord vitre
71814561
Screw/Vis
74150804
Holder f. baffle/
Titulaire pour déflecteur
71794361
Screw
731625
Washer/
Rondelle
791891
Glass/Vitre
79790200
Side plate right/
La plaque latérale droite
P - 44790500
V - 54790521/07
Tape/Ruban adhésif
79074200
Glass fitting/
Raccord vitre
71814561
Washer/
Rondelle
791891
Screw/Vis
731625
Holder f. baffle/
Titulaire pour déflecteur
71794261
Screw/Vis
74150804
Glass fitting/
Raccord vitre
71814561
Screw/Vis
73850800
Glass fitting/
Raccord vitre
71814561
Glass/Vitre
79790300
Tape/Ruban adhésif
79074200
Glass/Vitre
79790200
Tape/Ruban adhésif
79074200
Side plate left/
La plaque latérale gauche
P - 44790400
V - 54790421/07
Screw/Vis
731625
Washer/Rondelle
791891
Screw/Vis
731612
Washer/
Rondelle
791891
Air canal front/
Conduit air, avant
34791200
Screw/Vis
74162000
Washer/
Rondelle
746109
Draft reducer/
Projet de réducteur
34791800
Baffle/Déflectur
79792000
Vermiculite
Right/Droite
79792300
Grate/Grille
34791400
Screw/Vis
73851700
Tube
71793661
Screw/Vis
73851700
Tube
71793661
Door/Porte
P - 44794400
V - 54794421/07
Washer/
Rondelle
791891
Screw/Vis
731625
Front frame/
Cadre avant
P - 44794200
V - 44794221
Screw/Vis
73850800
Glass fitting/
Raccord vitre
71814561
Glass/Vitre
79790100
Tape/
Ruban adhésif
79074200
Grate frame/
Cadre de grille
44791300
Screw/Vis
73860800
Ash pan front/
Cendrier supérieure
P - 44791500
V - 44791521/07
Screw/Vis
731625
Washer/Rondelle
791891
Top frame/Cadre, haut
P - 44791000
V - 44791021/07
Top plate inside/
Plaque Supérieure, intérieure
P - 44790700
V - 44790721/07
P - 44794000
V - 44794021/07
Base plate/Plaque de base
P - 44794300
V - 44794321/07
Screw/Vis
73950500
Washer/Rondelle
746206
Tube
71810300
Washer/Rondelle
736106
Tube 54349000
Screw
731612
Washer/
Rondelle
791891
Screw/Vis
74340804
Screw/Vis
73851100
Screw/Vis
73960300
Hinge fitting/
Raccord charnière
71793000
Screw/Vis
731612
Nut/Écrou
735006
Washer/Rondelle
791891
Screw/Vis
73872000
Screw/Vis
74150804
Washer/Rondelle
736106
Screw/Vis
54701400
Spring Pin/
Goupille
73530700
Tape/Ruban adhésif
79074200
P = Produktionsnr./Production no.
V = Varenr./Product no.
Sort/Black = 21
Brun/Brown = 07
Washer/
Rondelle
791891
Washer/Rondelle
746106
Screw/Vis
73952500
Nut/Écrou
735005
Nut/Écrou
735005
Screw/Vis
73952500
Flue Collar/
Collier de serrage tuyau
P - 44100221
V - 44100221/07
Washer/Rondelle
746106
Axle/Axe
75790461
Handle/Poignée
75790361
Screw/Vis
73960900
Nut/Écrou
791158
Vermiculite
Front/Supérieure
79792400
Vermiculite
Left/Gauche
79792200
Vermiculite
Rear/Arrière
79792100
Tube
Pilot air/Air pilote
71794161
Closing mechanism/
Mécanisme de fermeture
54791100
Closing mechanism/
Mécanisme de fermeture
54791100
Cover/Couvercle
P - 34790900
V - 44790921/07
Baffle top/
Déflectur supérieure
79792600
Screw/Vis
73950500
Washer/
Rondelle
74610400
Washer/
Rondelle
74610400
Basic 7900
Revisions
Rev.
Sign.:
Title:
Drawing no.:
Dim. without indication of margin acc. to DS/ISO 2768-1 m
1:10
Reservedelstegning NA

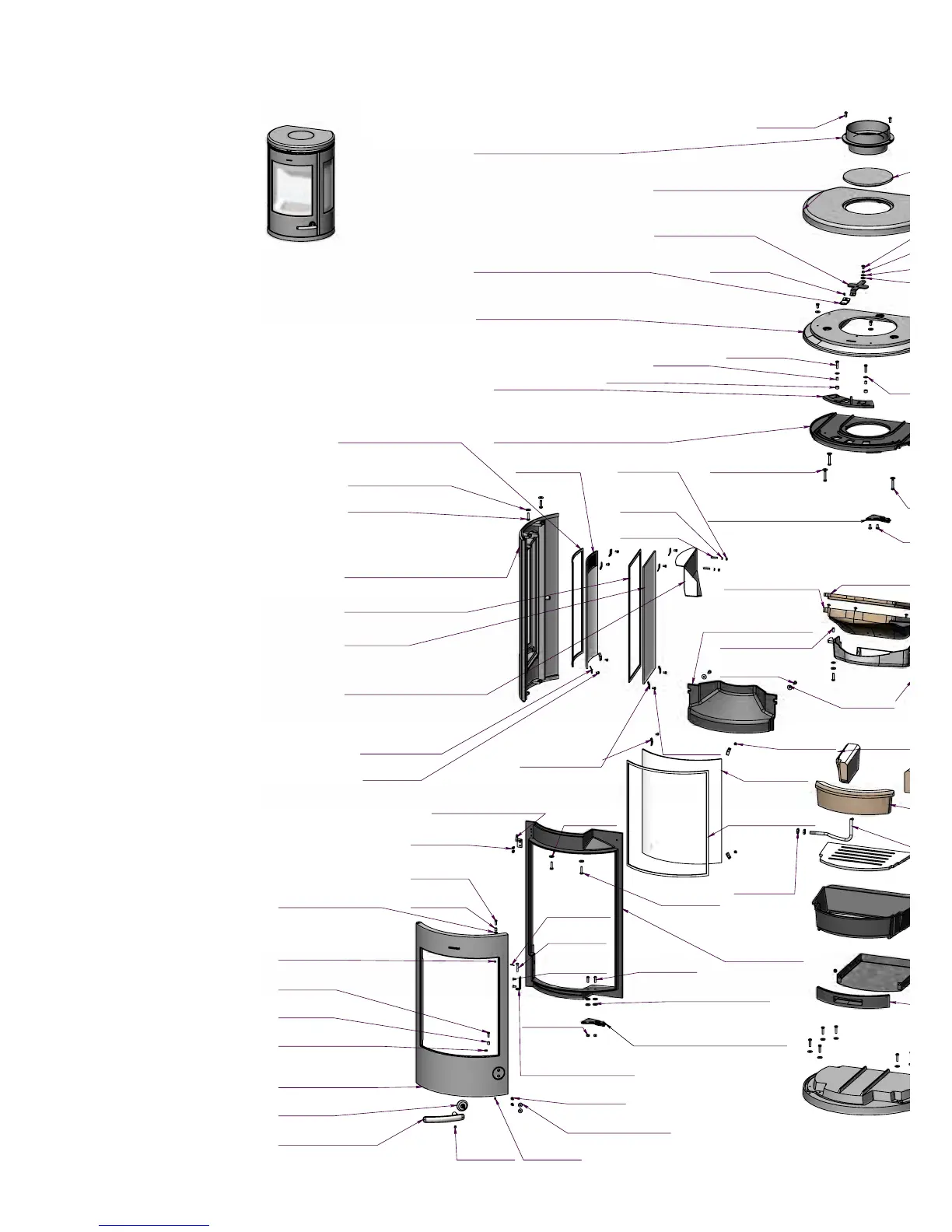

Exploded drawing NA
Morsø 7900
RSV
23.04.2013
A2
Date of print: 23-09-2013
C:\Working\7900 Assembly.SLDASM
7900-501 d
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
13.06.2013
RSV
Removed spring system for door.
b
20.08.2013
RSV
Changed screws for the inside glass.
c
d
Changed screws for closing mechanismtop.
RSV
23.09.2013
