MASKINFABRIK
HARALDSVEJ
21
DK-8900
BANDERS
TLF.+
45864351
55
FAX.
+ 45 86 43 51 00

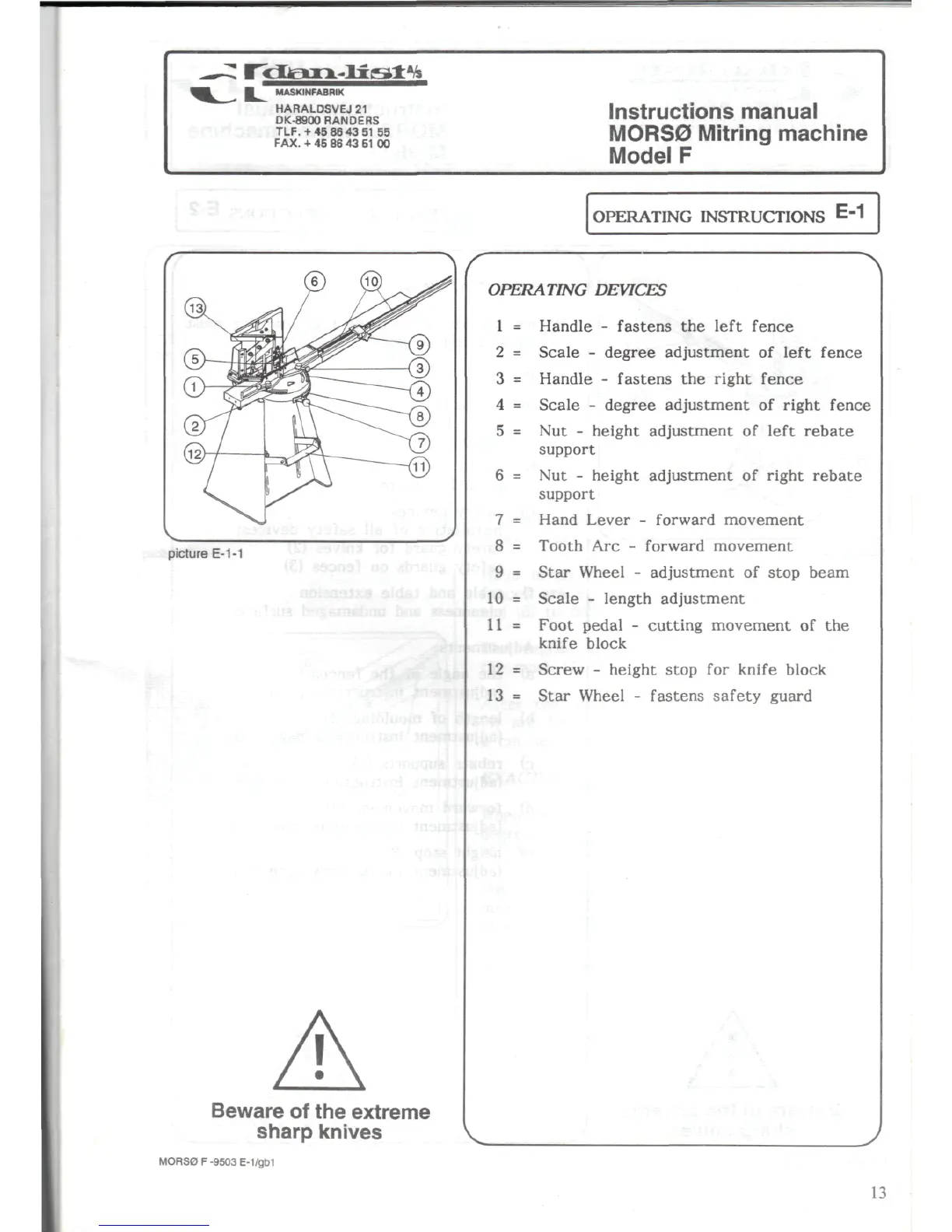

Instructions
manual
MORS0
Mitring
machine
Model
F
OPERATING
INSTRUCTIONS
E-1
E-1-1
f
Beware
of
the
extreme
sharp
knives
OPERATING DEVICES
1
=
Handle
-
fastens
the
left fence
2
=
Scale
-
degree
adjustment
of
left fence
3 =
Handle
-
fastens
the
right
fence
4
=
Scale
-
degree
adjustment
of
right fence
5
= Nut -
height adjustment
of
left
rebate
support
6
= Nut -
height adjustment
of
right
rebate
support
7 =
Hand
Lever
-
forward
movement
8 =
Tooth
Arc -
forward
movement
9
-
Star
Wheel
-
adjustment
of
stop beam
10
=
Scale
-
length adjustment
11
=
Foot
pedal
-
cutting
movement
of the
knife
block
12
=
Screw
-
height stop
for
knife
block
13
=
Star
Wheel
-
fastens safety guard
MORS0
F
-9503 E-1/gb1
13
