MASKINFABRIK

HARALDSVEJ

21

DK-8900

RANDERS

TLF.-1-45

86

43

51 55

FAX.

+

45 86 43 51 00

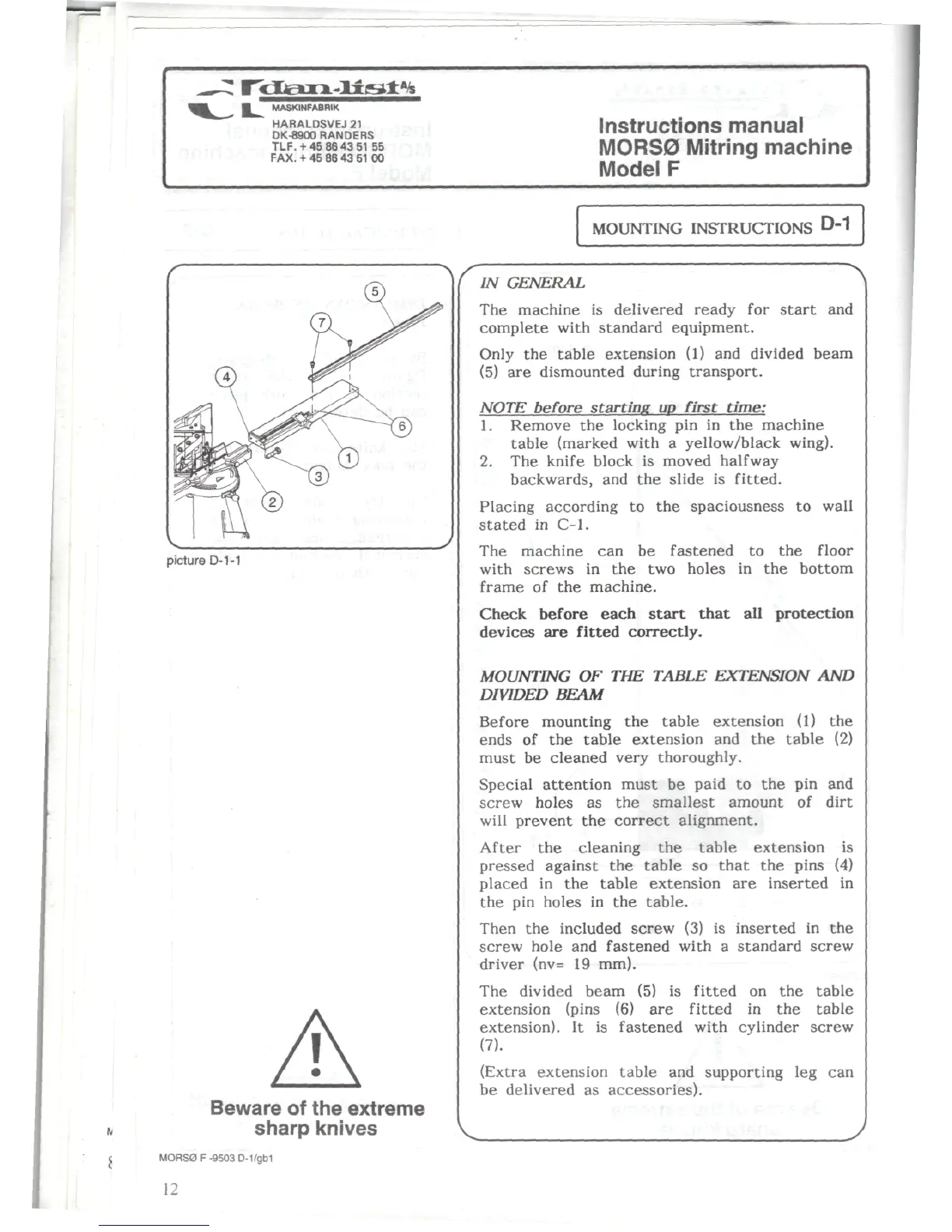

Instructions manual

MORS0

Mitring

machine

Model

F


D-1-1

I

MOUNTING

INSTRUCTIONS

D-1

Beware

of the

extreme

sharp knives

IN

GENERAL

The

machine

is

delivered ready

for

start

and

complete with standard equipment.

Only

the

table extension

(1) and

divided beam

(5)

are

dismounted

during

transport.

NOTE

before

starting

up

first time:

1.

Remove

the

locking

pin in the

machine

table (marked with

a

yellow/black

wing).

2. The

knife

block

is

moved

halfway

backwards,

and the

slide

is

fitted.

Placing

according

to the

spaciousness

to

wall

stated

in

C-l.

The

machine

can be

fastened

to the

floor

with

screws

in the two

holes

in the

bottom

frame

of the

machine.

Check

before each

start

that

all

protection

devices

are

fitted

correctly.

MOUNTING

OF THE

TABLE

EXTENSION

AND

DIVIDED

BEAM

Before

mounting

the

table

extension

(1) the

ends

of the

table

extension

and the

table

(2)

must

be

cleaned very thoroughly.

Special attention must

be

paid

to the pin and

screw holes

as the

smallest amount

of

dirt

will

prevent

the

correct alignment.

After

the

cleaning

the

table extension

is

pressed against

the

table

so

that

the

pins

(4)

placed

in the

table

extension

are

inserted

in

the pin

holes

in the

table.

Then

the

included screw

(3) is

inserted

in the

screw hole

and

fastened with

a

standard screw

driver

(nv=

19

mm).

The

divided

beam

(5) is

fitted

on the

table

extension

(pins

(6) are

fitted

in the

table

extension).

It is

fastened with cylinder screw

(7).

(Extra extension table

and

supporting

leg can

be

delivered

as

accessories).

MORS0

F

-9503

D-1/gb1

12
