MORS0 Mitring machine

Model

F

TECHNICAL

DATES

C-2

90 70 50 30 10

100


C-2-1

I

Beware

of

the

extreme

sharp knives

MORS0

F

-9503

C-2/gb1

DIMENSIONS

OF

WORK

PIECE

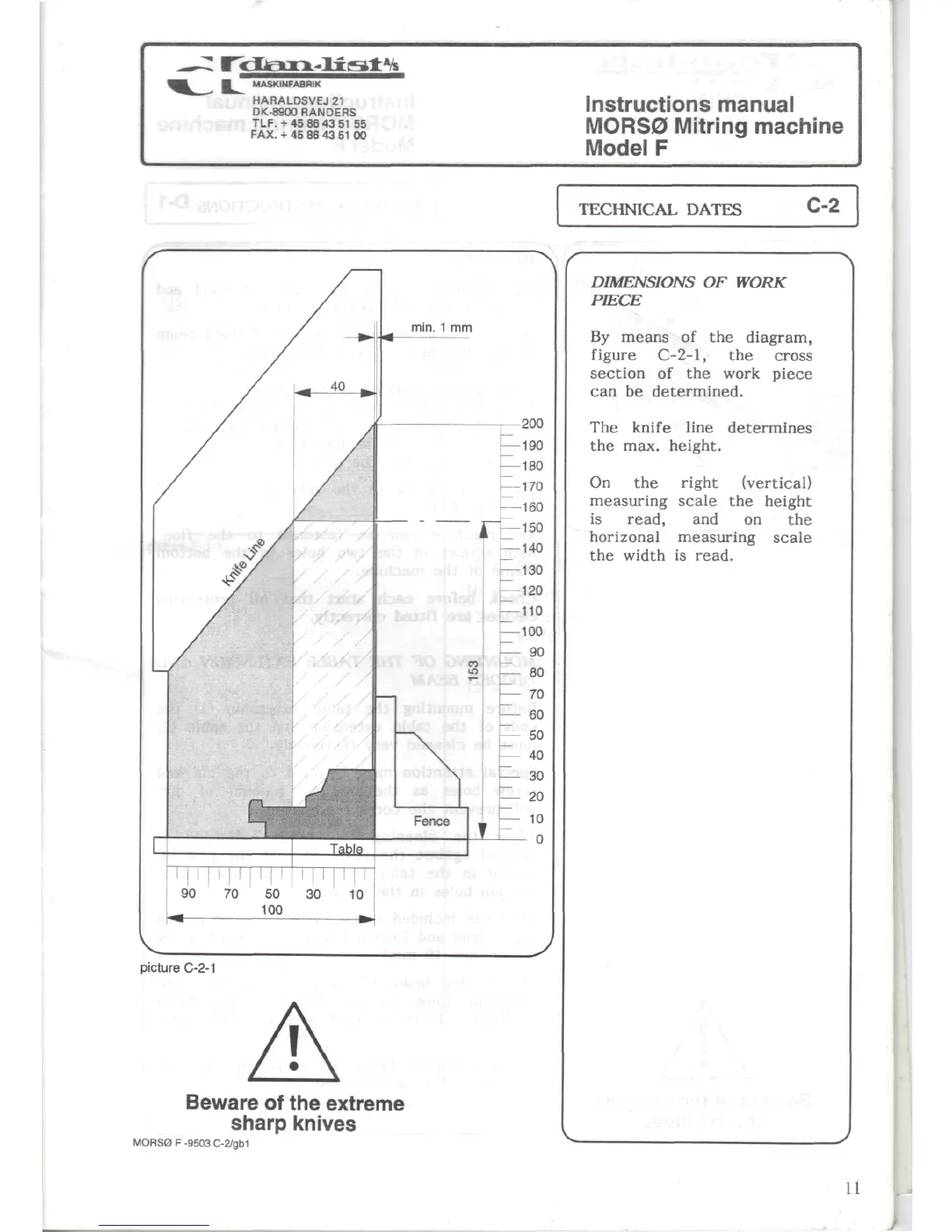

By

means

of the

diagram,

figure

C-2-1,

the

cross

section

of the

work

piece

can

be

determined.

The

knife

line

determines

the

max. height.

On

the

right

(vertical)

measuring

scale

the

height

is

read,

and on the

horizonal

measuring

scale

the

width

is

read.
