MASKINFABRIK
HARALDSVEJ21
DK-8900 RANDERS
TLF.+45864351 55
FAX. -I- 45 86 43 51 00
Instructions manual
MORS0 Mitring machine
Model F

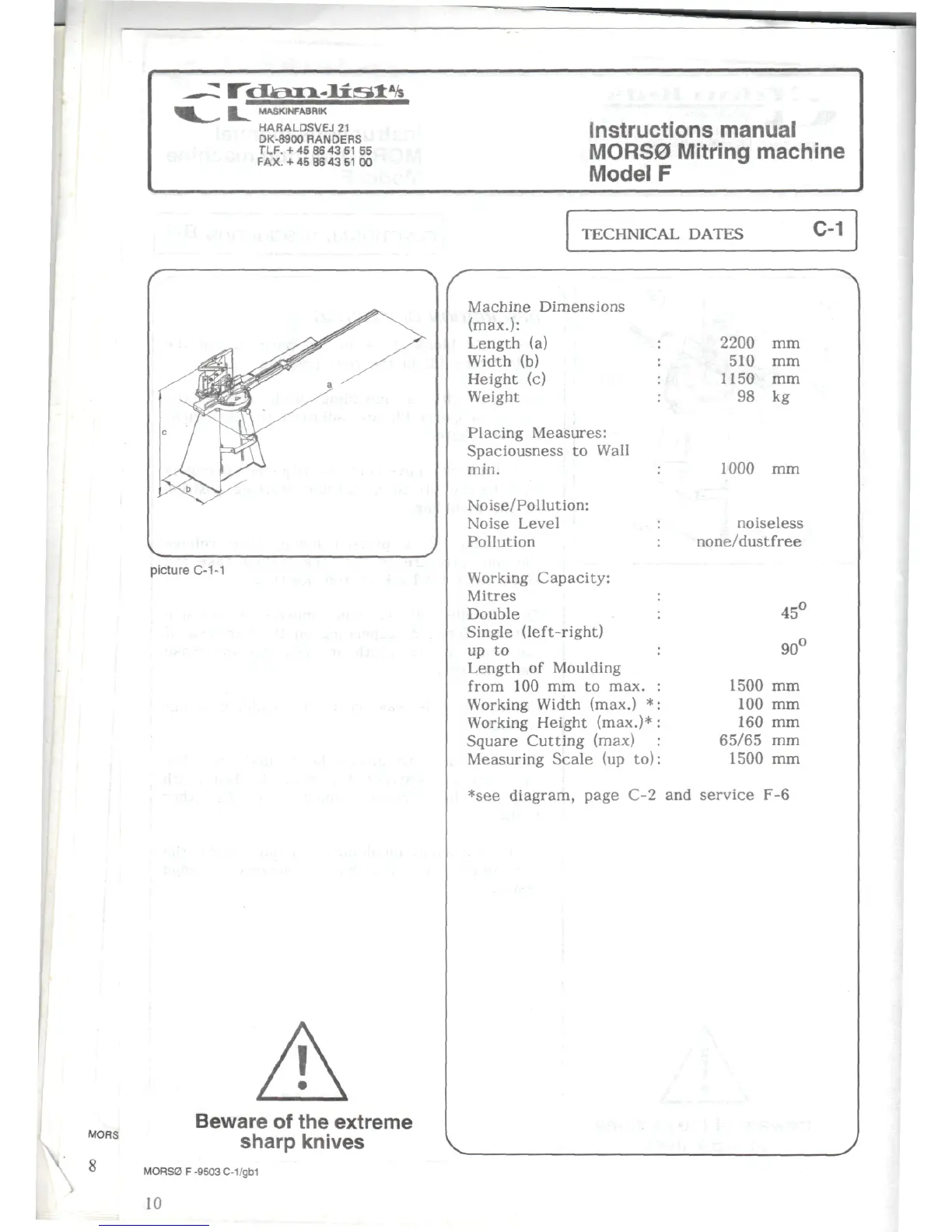

picture C-1-1
MORS
Beware of the extreme
sharp knives
MORS0 F -9503 C-1/gb1
10
TECHNICAL DATES
C-1
Machine Dimensions
(max.):
Length (a)
Width (b)
Height (c)
Weight
Placing Measures:
Spaciousness to Wall
min.
Noise/Pollution:
Noise Level
Pollution
Working Capacity:
Mitres
Double
Single (left-right)
up to
Length of Moulding
from 100 mm to max.
Working Width (max.) *
Working Height (max.)*
Square Cutting (max)
Measuring Scale (up to)
2200 mm
510 mm
1150 mm
98 kg
1000 mm
noiseless
none/dustfree
45°
90°
1500 mm
100 mm
160 mm
65/65 mm
1500 mm
*see diagram, page C-2 and service F-6
