MASKINFABRIK

HARALDSVEJ

21

DK-8900

BANDERS

TLF.-t-45

86 43 51 55

FAX.

+ 45 86 43 51

00

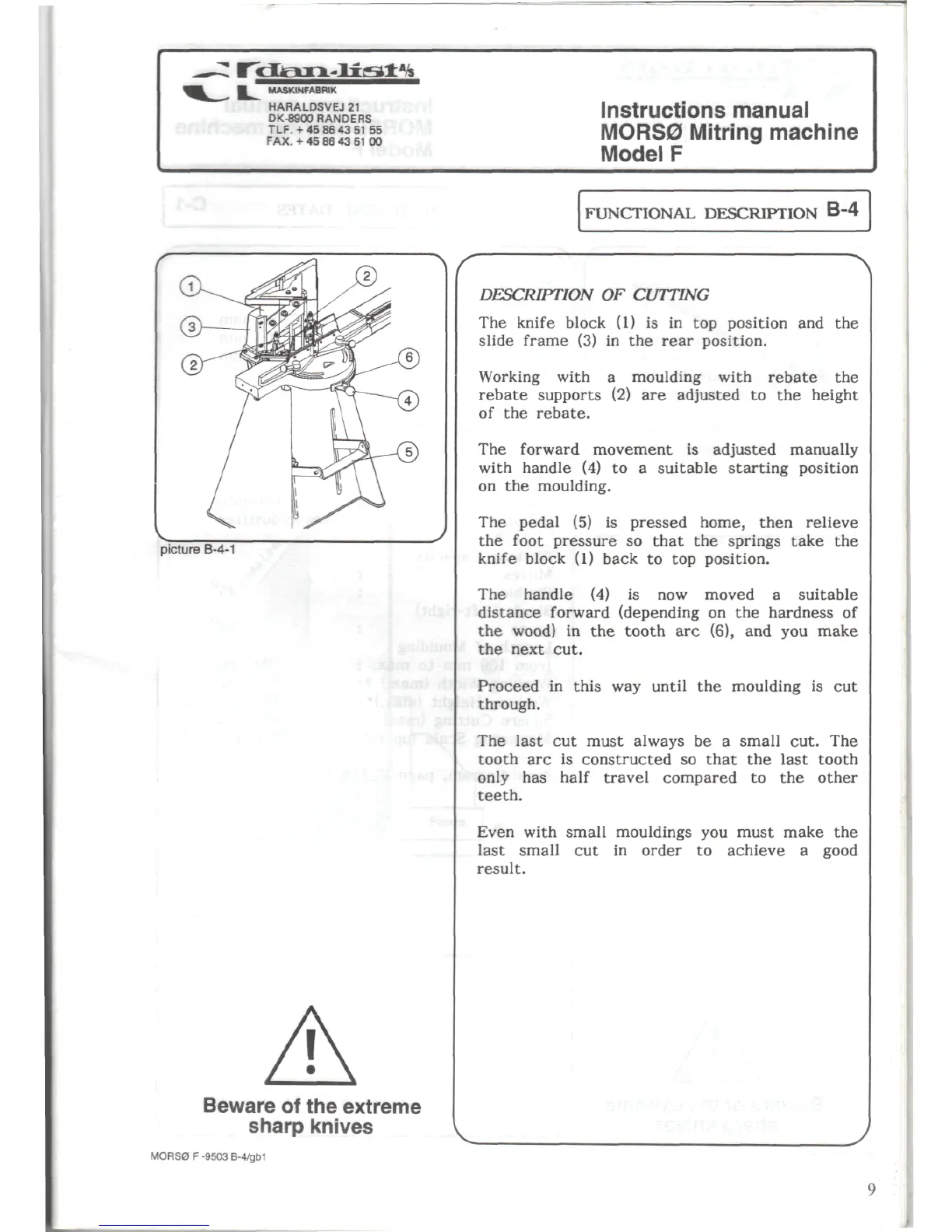

Instructions

manual

MORS0 Mitring machine

Model

F

FUNCTIONAL

DESCRIPTION

B-4


B-4-1

I

Beware

of

the

extreme

sharp knives

DESCRIPTION

OF

CUTTING

The

knife

block

(1) is in top

position

and the

slide

frame

(3) in the

rear position.

Working

with

a

moulding

with

rebate

the

rebate

supports

(2) are

adjusted

to the

height

of

the

rebate.

The

forward

movement

is

adjusted

manually

with

handle

(4) to a

suitable starting

position

on

the

moulding.

The

pedal

(5) is

pressed home, then relieve

the

foot

pressure

so

that

the

springs

take

the

knife

block

(1)

back

to top

position.

The

handle

(4) is now

moved

a

suitable

distance

forward

(depending

on the

hardness

of

the

wood)

in the

tooth

arc

(6),

and you

make

the

next

cut.

Proceed

in

this

way

until

the

moulding

is cut

through.

The

last

cut

must

always

be a

small

cut.

The

tooth

arc is

constructed

so

that

the

last tooth

only

has

half

travel compared

to the

other

teeth.

Even

with

small

mouldings

you

must make

the

last

small

cut in

order

to

achieve

a

good

result.

MORS0

F

-9503 B-4/gb1
