Instructions manual

MORS0

Mitring machine

Model

F


E-5-1


E-5-2

A

Beware

of

the

extreme

sharp

knives

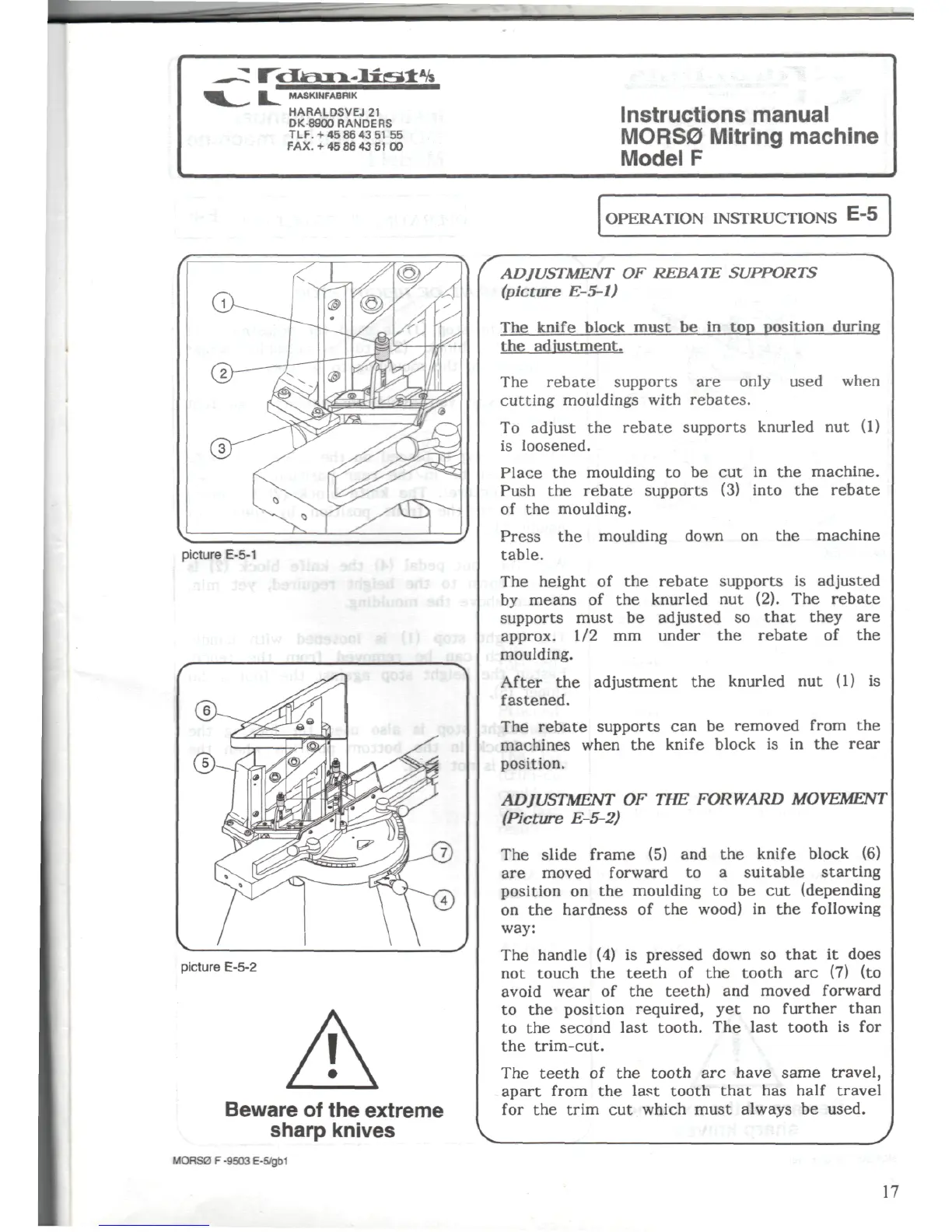

OPERATION INSTRUCTIONS

E-5

ADJUSTMENT

OF

REBATE SUPPORTS

(picture

E-5-1)

The

knife

block

must

be in top

position

during

the

adjustment.

The

rebate

supports

are

only used when

cutting

mouldings with

rebates.

To

adjust

the

rebate

supports knurled

nut (1)

is

loosened.

Place

the

moulding

to be cut in the

machine.

Push

the

rebate

supports

(3)

into

the

rebate

of

the

moulding.

Press

the

moulding

down

on the

machine

table.

The

height

of the

rebate

supports

is

adjusted

by

means

of the

knurled

nut

(2).

The

rebate

supports must

be

adjusted

so

that

they

are

approx.

1/2 mm

under

the

rebate

of the

moulding.

After

the

adjustment

the

knurled

nut (1) is

fastened.

The

rebate

supports

can be

removed

from

the

machines

when

the

knife

block

is in the

rear

position.

ADJUSTMENT

OF THE

FORWARD MOVEMENT

(Picture

E-5-2)

The

slide frame

(5) and the

knife

block

(6)

are

moved

forward

to a

suitable starting

position

on the

moulding

to be cut

(depending

on

the

hardness

of the

wood)

in the

following

way:

The

handle

(4) is

pressed

down

so

that

it

does

not

touch

the

teeth

of the

tooth

arc (7) (to

avoid

wear

of the

teeth)

and

moved forward

to the

position required,

yet no

further than

to the

second

last

tooth.

The

last

tooth

is for

the

trim-cut.

The

teeth

of the

tooth

arc

have

same

travel,

apart

from

the

last

tooth

that

has

half

travel

for

the

trim

cut

which must always

be

used.

MORS0

F

-9503

E-5/gb1
