MASKINFABR

HARALDSVEJ

21

DK-8900RANDERS

TLF.

+ 45 86 43 51 55

FAX.

+ 45 86 43 51 00

Instructions manual

MORS0

Mitring

machine

Model

F

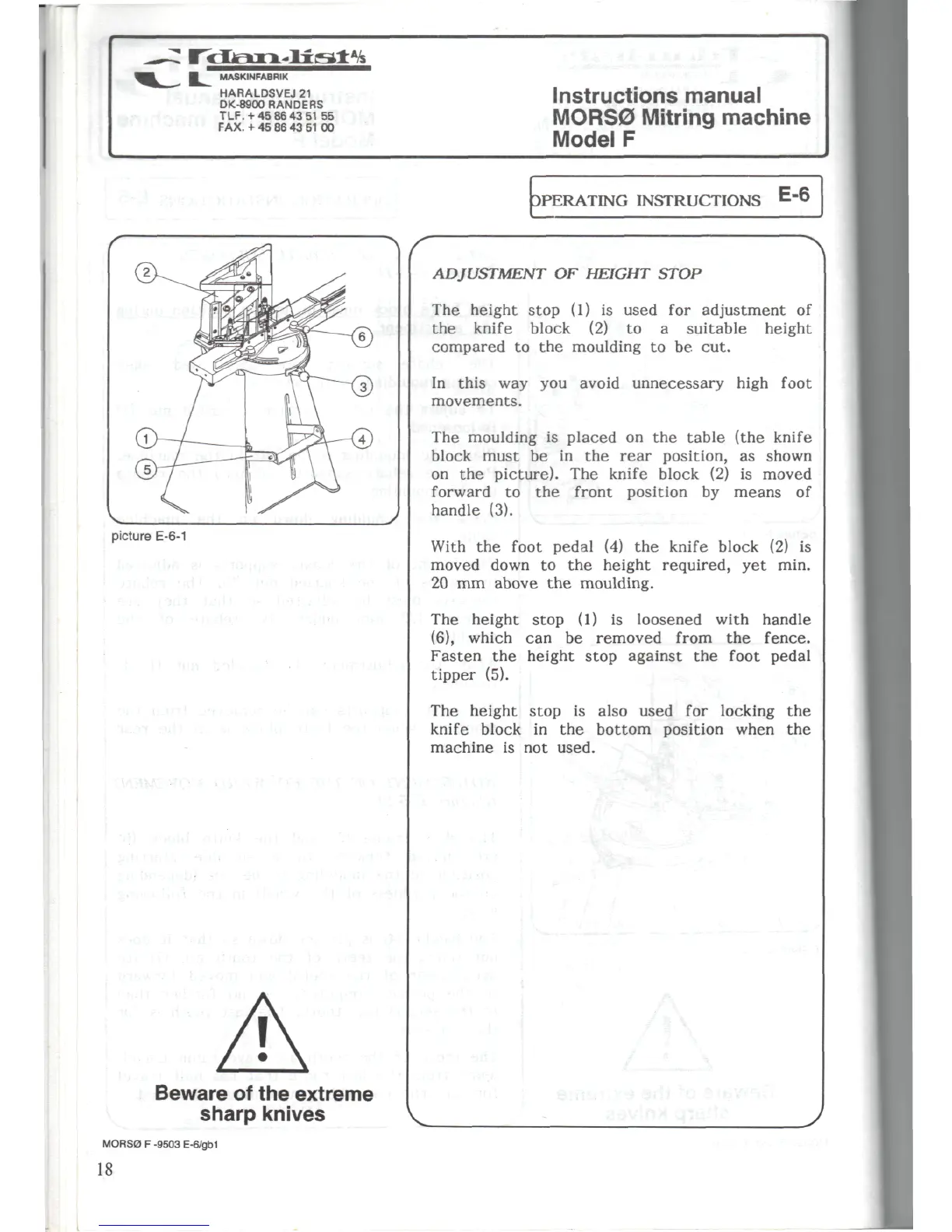

E-6-1

•

I

UPERATING

INSTRUCTIONS

E-6

Beware

of

the

extreme

sharp knives

MORS0

F

-9503 E-6/gb1

18

ADJUSTMENT

OF

HEIGHT

STOP

The

height

stop

(1) is

used

for

adjustment

of

the

knife

block

(2) to a

suitable height

compared

to the

moulding

to be

cut.

In

this

way you

avoid

unnecessary

high

foot

movements.

The

moulding

is

placed

on the

table

(the

knife

block

must

be in the

rear

position,

as

shown

on

the

picture).

The

knife

block

(2) is

moved

forward

to the

front

position

by

means

of

handle

(3).

With

the

foot pedal

(4) the

knife

block

(2) is

moved

down

to the

height required,

yet

min.

20

mm

above

the

moulding.

The

height stop

(1) is

loosened with handle

(6),

which

can be

removed from

the

fence.

Fasten

the

height stop against

the

foot pedal

tipper (5).

The

height

stop

is

also used

for

locking

the

knife

block

in the

bottom position when

the

machine

is not

used.
