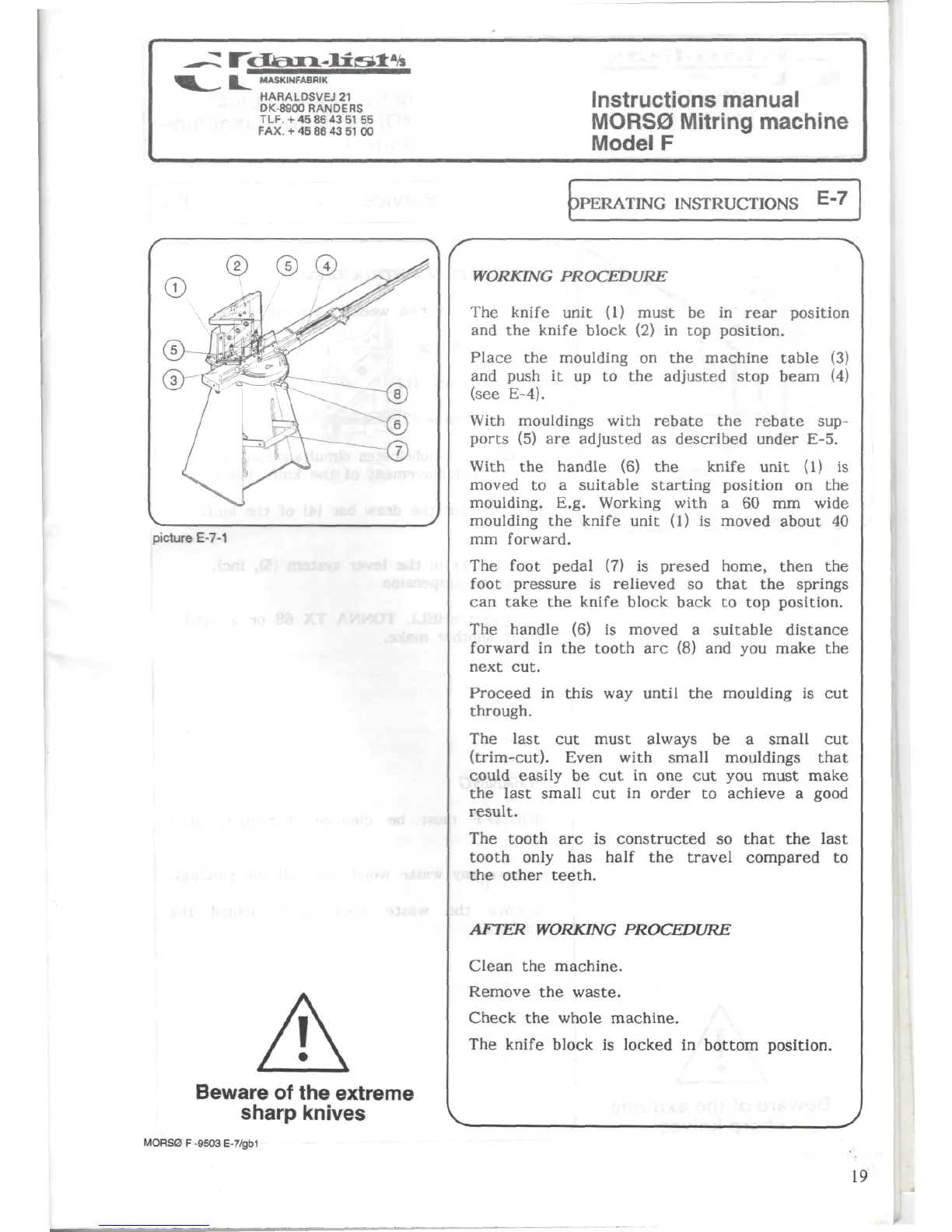

Instructions manual
MORS0 Mitring machine
Model F
©
picture E-7-1
Beware of the extreme
sharp knives
OPERATING INSTRUCTIONS
E-7
WORKING PROCEDURE
The knife unit (1) must be in rear position
and the knife block (2) in top position.
Place the moulding on the machine table (3)
and push it up to the adjusted stop beam (4)
(see E-4).
With mouldings with rebate the rebate sup-
ports (5) are adjusted as described under E-5.
With the handle (6) the knife unit (1) is
moved to a suitable starting position on the
moulding. E.g. Working with a 60 mm wide
moulding the knife unit (1) is moved about 40
mm forward.
The foot pedal (7) is presed home, then the
foot pressure is relieved so that the springs
can take the knife block back to top position.
The handle (6) is moved a suitable distance
forward in the tooth arc (8) and you make the
next cut.
Proceed in this way until the moulding is cut
through.
The last cut must always be a small cut
(trim-cut). Even with small mouldings that
could easily be cut in one cut you must make
the last small cut in order to achieve a good
result.
The tooth arc is constructed so that the last
tooth only has half the travel compared to
the other teeth.
AFTER WORKING PROCEDURE
Clean the machine.
Remove the waste.
Check the whole machine.
The knife block is locked in bottom position.
MORS0 F -9503 E-7/gb1
