g MASKINFABRIK
HARALDSVEJ 21
OK-8900R ANDERS
TLF. + 45864351 55
FAX. 4- 45 86 43 51 00
Instructions manual
MORS0 Mitring machine
Model F

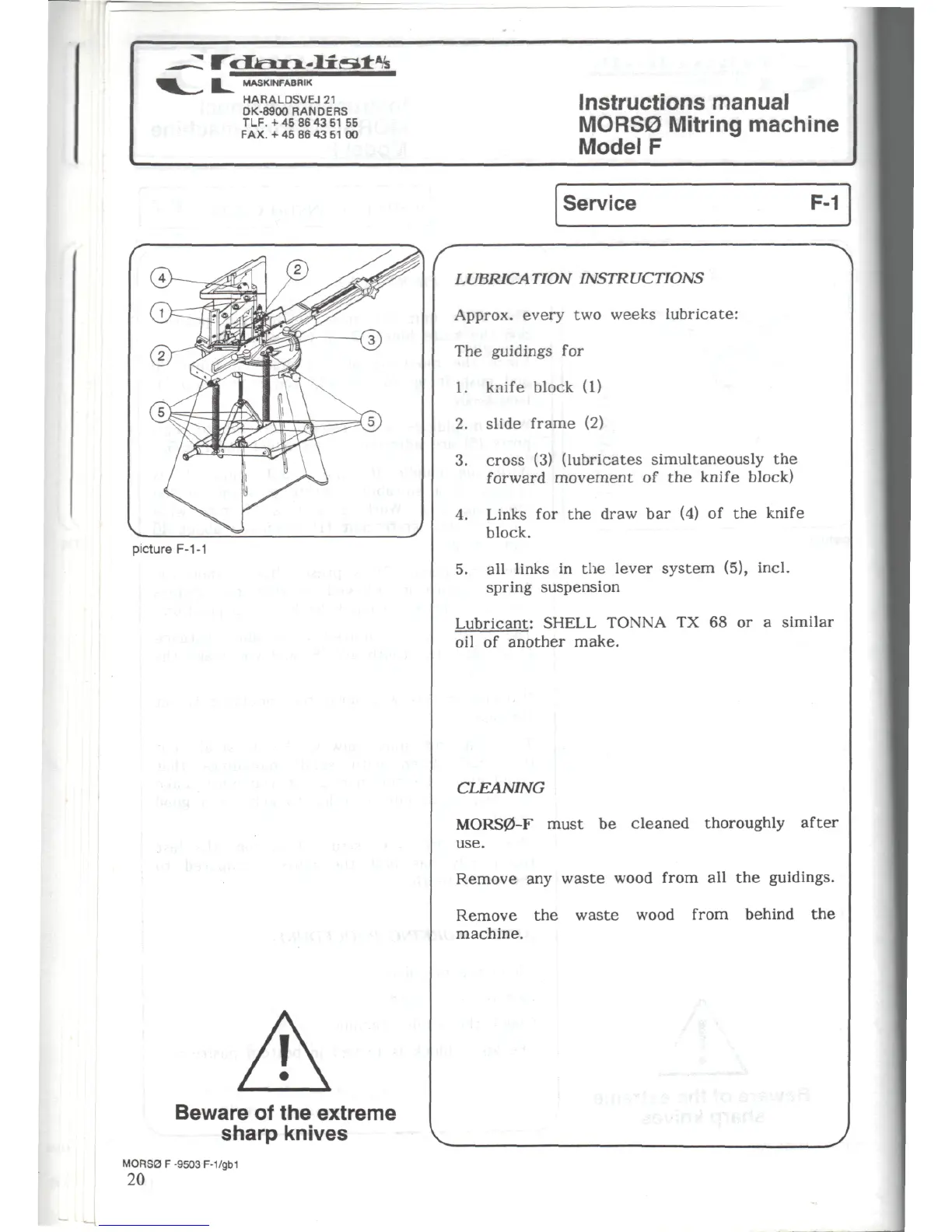

picture F-1-1
Service
F-1
I
Beware of the extreme
sharp knives
LUBRICATION INSTRUCTIONS
Approx. every two weeks lubricate:
The guidings for
1. knife block (1)
2. slide frame (2)
3. cross (3) (lubricates simultaneously the
forward movement of the knife block)
4. Links for the draw bar (4) of the knife
block.
5. all links in the lever system (5), inch
spring suspension
Lubricant: SHELL TONNA TX 68 or a similar
oil of another make.
CLEANING
MORS0-F must be cleaned thoroughly after
use.
Remove any waste wood from all the guidings.
Remove the waste wood from behind the
machine.
.
MORS0F-9503 F-1/gb1
