Instructions manual
MORS0 Mitring machine
Model F
Service
F-2

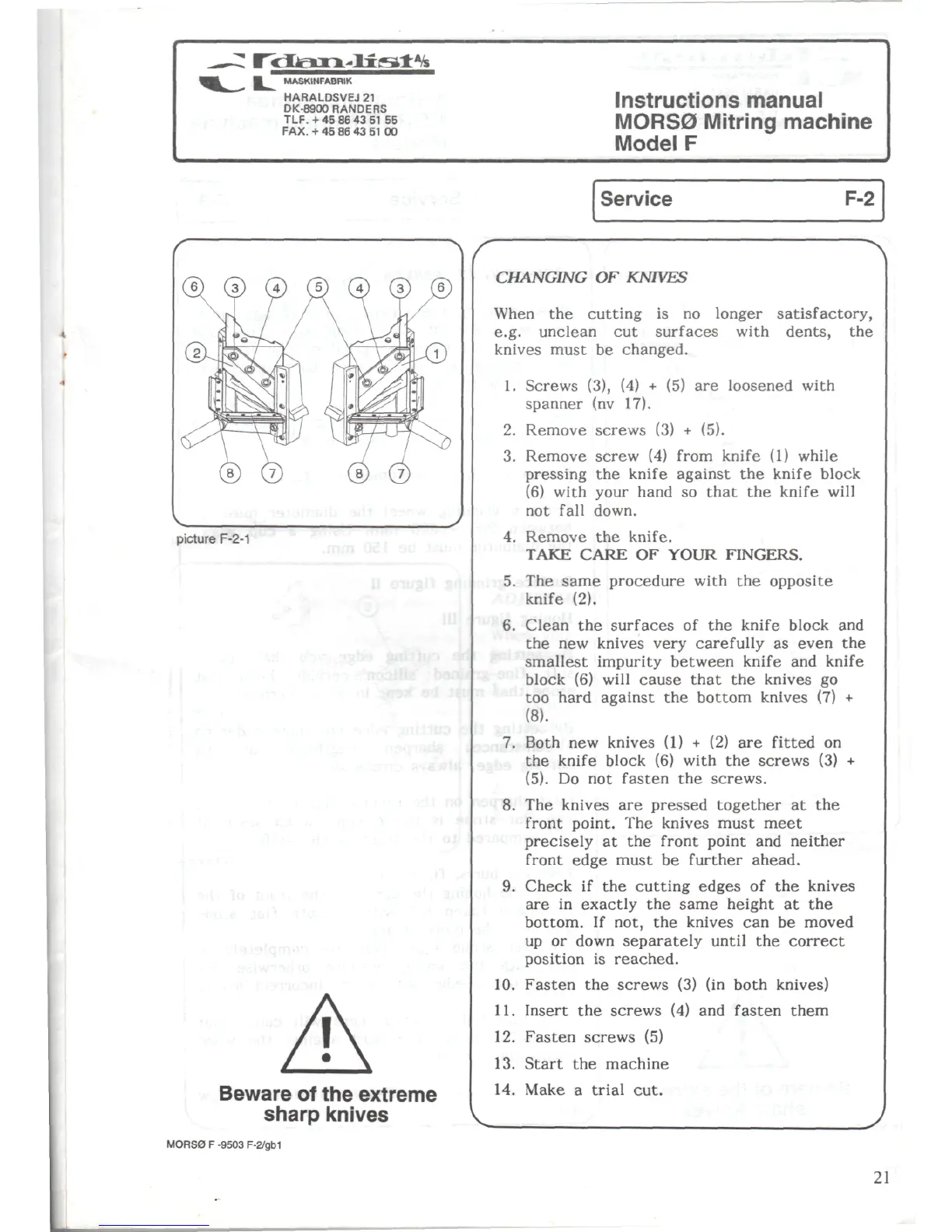

picture F-2-1
Beware of the extreme
sharp knives
CHANGING OF KNIVES
When the cutting is no longer satisfactory,
e.g. unclean cut surfaces with dents, the
knives must be changed.
1. Screws (3), (4) + (5) are loosened with
spanner (nv 17).
2. Remove screws (3) + (5).
3. Remove screw (4) from knife (1) while
pressing the knife against the knife block
(6) with your hand so that the knife will
not fall down.
4. Remove the knife.
TAKE CARE OF YOUR FINGERS.
5. The same procedure with the opposite
knife (2).
6. Clean the surfaces of the knife block and
the new knives very carefully as even the
smallest impurity between knife and knife
block (6) will cause that the knives go
too hard against the bottom knives (7) +
(8).
7. Both new knives (1) + (2) are fitted on
the knife block (6) with the screws (3) +
(5). Do not fasten the screws.
8. The knives are pressed together at the
front point. The knives must meet
precisely at the front point and neither
front edge must be further ahead.
9. Check if the cutting edges of the knives
are in exactly the same height at the
bottom. If not, the knives can be moved
up or down separately until the correct
position is reached.
10. Fasten the screws (3) (in both knives)
11. Insert the screws (4) and fasten them
12. Fasten screws (5)
13. Start the machine
14. Make a trial cut.
MORS0 F -9503 F-2/gb1
