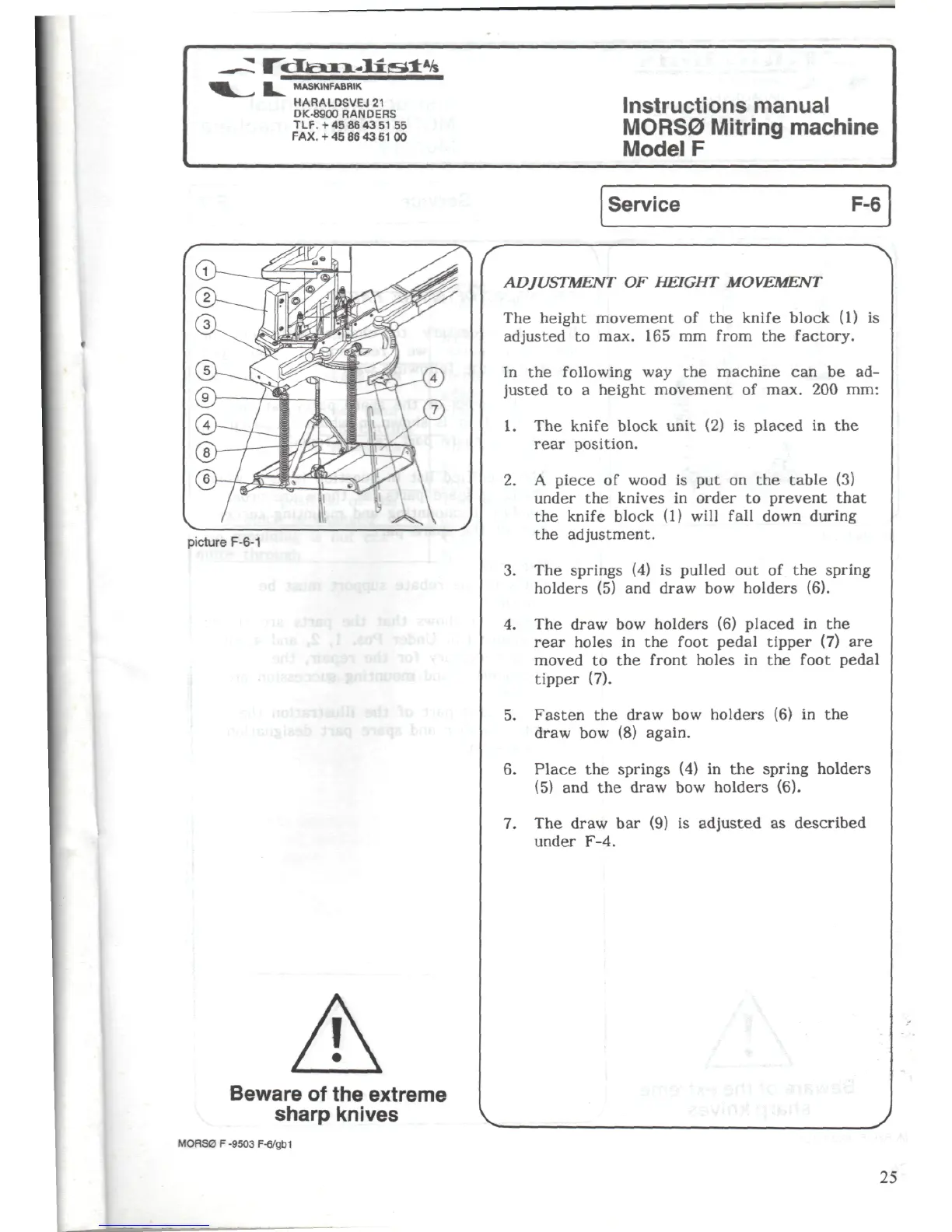

Instructions manual

MORS0 Mitring machine

Model

F


F-6-1

Service

F-6

Beware

of

the

extreme

sharp knives

ADJUSTMENT

OF

HEIGHT

MOVEMENT

The

height movement

of the

knife

block

(1) is

adjusted

to

max.

165 mm

from

the

factory.

In

the

following

way the

machine

can be ad-

justed

to a

height movement

of

max.

200 mm:

1.

The

knife

block unit

(2) is

placed

in the

rear

position.

2. A

piece

of

wood

is put on the

table

(3)

under

the

knives

in

order

to

prevent

that

the

knife

block

(1)

will

fall

down

during

the

adjustment.

3. The

springs

(4) is

pulled

out of the

spring

holders

(5) and

draw

bow

holders (6).

4. The

draw

bow

holders

(6)

placed

in the

rear holes

in the

foot pedal tipper

(7) are

moved

to the

front

holes

in the

foot pedal

tipper (7).

5.

Fasten

the

draw

bow

holders

(6) in the

draw

bow (8)

again.

6.

Place

the

springs

(4) in the

spring holders

(5)

and the

draw

bow

holders (6).

7. The

draw

bar (9) is

adjusted

as

described

under

F-4.
