Instructions manual

MORS0

Mitring machine

Model

F

Service

F-5


F-5-1

pictui

MORS0

F

22

Beware

of the

extreme

sharp knives

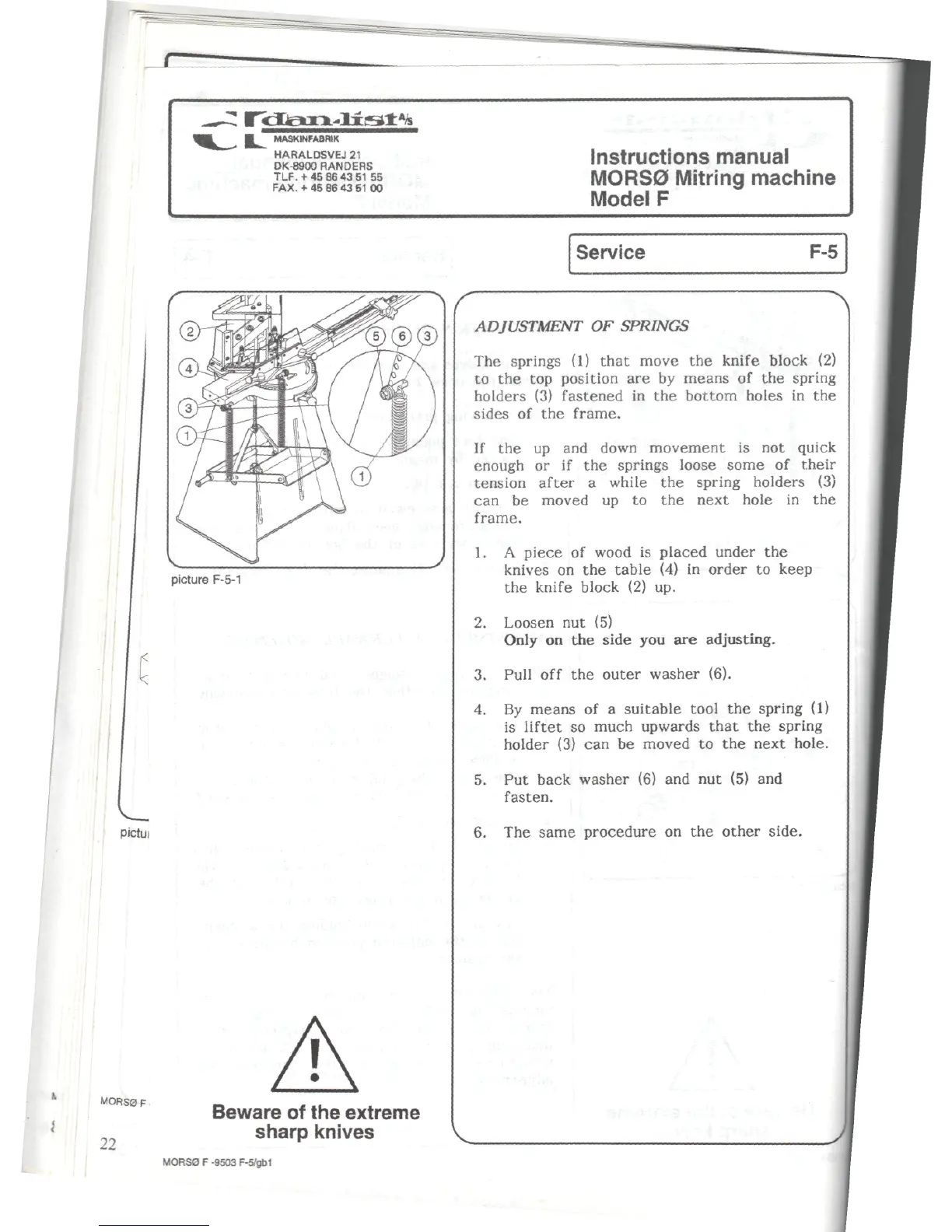

ADJUSTMENT

OF

SPRINGS

The

springs

(1)

that

move

the

knife block

(2)

to the top

position

are by

means

of the

spring

holders

(3)

fastened

in the

bottom holes

in the

sides

of the

frame.

If

the up and

down

movement

is not

quick

enough

or if the

springs loose some

of

their

tension after

a

while

the

spring

holders

(3)

can

be

moved

up to the

next hole

in the

frame.

1. A

piece

of

wood

is

placed under

the

knives

on the

table

(4) in

order

to

keep

the

knife

block

(2) up.

2.

Loosen

nut (5)

Only

on the

side

you are

adjusting.

3.

Pull

off the

outer washer (6).

4.

By

means

of a

suitable tool

the

spring

(1)

is

liftet

so

much

upwards

that

the

spring

holder

(3) can be

moved

to the

next hole.

5.

Put

back

washer

(6) and nut (5) and

fasten.

6.

The

same procedure

on the

other

side.
