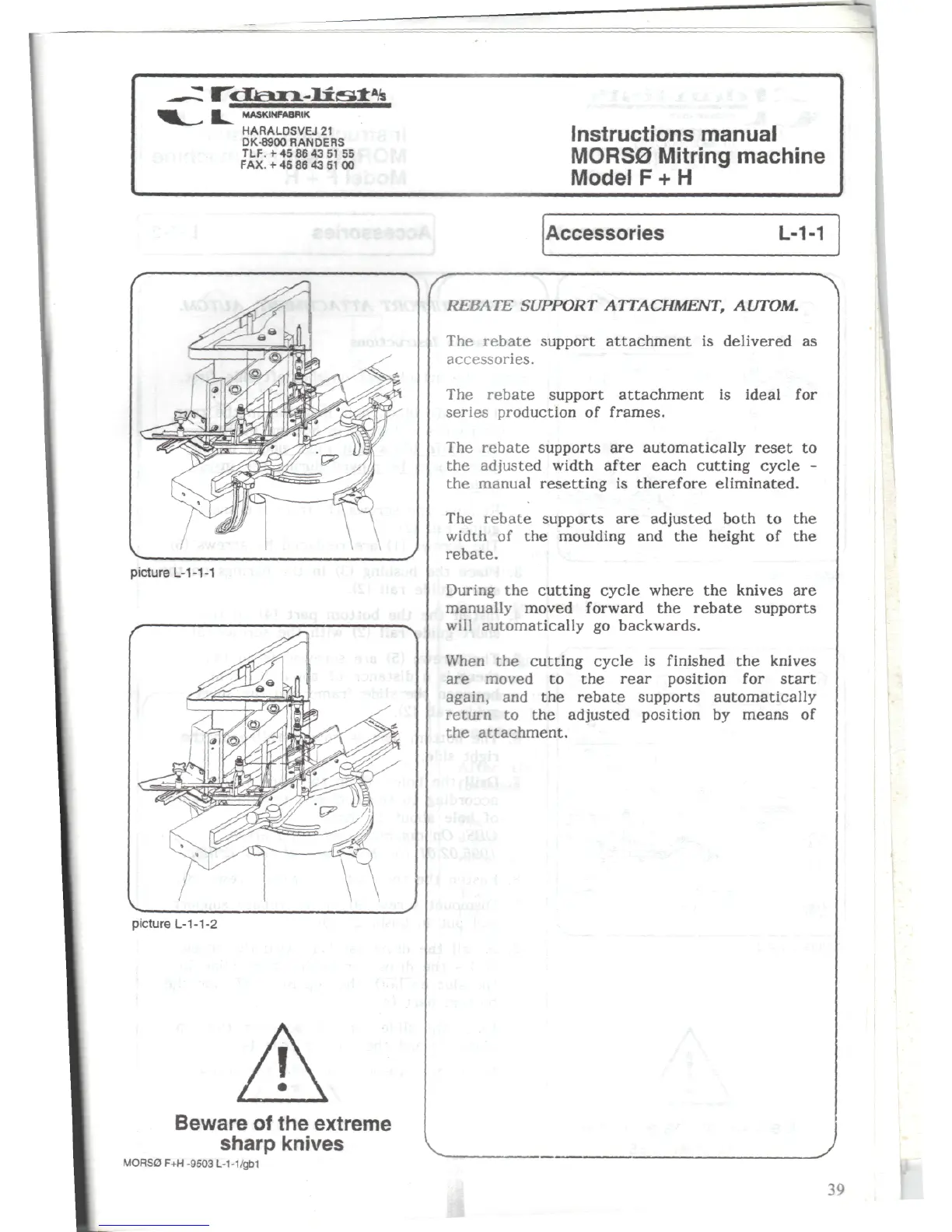

Instructions manual

A/IORS0

Mitring

machine

Model

F + H

Accessories

L-1-1


L-1-1-1


L-1-1-2

Beware

of

the

extreme

sharp knives

REBATE

SUPPORT

ATTACHMENT,

AUTOM.

The

rebate support attachment

is

delivered

as

accessories.

The

rebate support attachment

is

ideal

for

series

production

of

frames.

The

rebate supports

are

automatically

reset

to

the

adjusted

width

after each cutting

cycle

-

the

manual

resetting

is

therefore eliminated.

The

rebate supports

are

adjusted both

to the

width

of the

moulding

and the

height

of the

rebate.

During

the

cutting

cycle

where

the

knives

are

manually

moved

forward

the

rebate

supports

will

automatically

go

backwards.

When

the

cutting cycle

is

finished

the

knives

are

moved

to the

rear position

for

start

again,

and the

rebate

supports automatically

return

to the

adjusted position

by

means

of

the

attachment.

MORS0

F+H

-9503

L-1-1/gb1
