MASKINFABRIK

HARALDSVEJ

21

DK-8900

RANDERS

TLF.

-1-45864351

55

FAX.

+

45

86

43 51 00

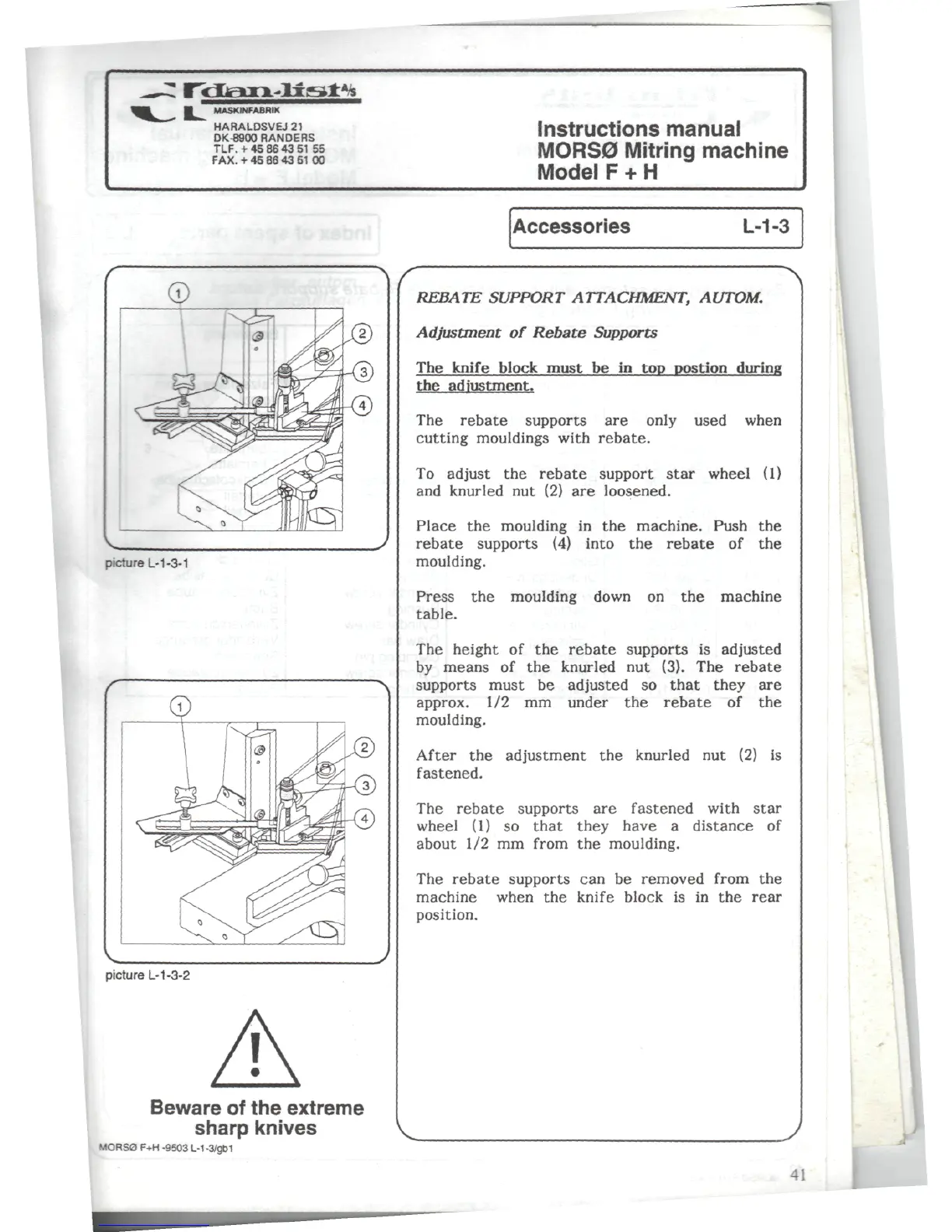

Instructions

manual

MORS0

Mitring

machine

Model

F + H

©


L-1-3-1


L-1-3-2

Accessories

L-1-3

Beware

of

the

extreme

sharp

knives

MORS0

F+H

-9503

L-1-3/gt>1

REBATE

SUPPORT

ATTACHMENT,

AUTOM.

Adjustment

of

Rebate

Supports

The

knife block must

be in top

postion

during

the

adjustment.

The

rebate

supports

are

only used

when

cutting

mouldings with

rebate.

To

adjust

the

rebate

support

star

wheel

(1)

and

knurled

nut (2) are

loosened.

Place

the

moulding

in the

machine. Push

the

rebate

supports

(4)

into

the

rebate

of the

moulding.

Press

the

moulding

down

on the

machine

table.

The

height

of the

rebate

supports

is

adjusted

by

means

of the

knurled

nut

(3).

The

rebate

supports must

be

adjusted

so

that

they

are

approx.

1/2 mm

under

the

rebate

of the

moulding.

After

the

adjustment

the

knurled

nut (2) is

fastened.

The

rebate

supports

are

fastened with

star

wheel

(1) so

that

they

have

a

distance

of

about

1/2 mm

from

the

moulding.

The

rebate

supports

can be

removed

from

the

machine when

the

knife block

is in the

rear

position.

41
